Set 211.3 - Single Crossover - Left Turn

Introduction

Set 211.3 provides a left-turn single crossover with the ground throws on the outside.

Features

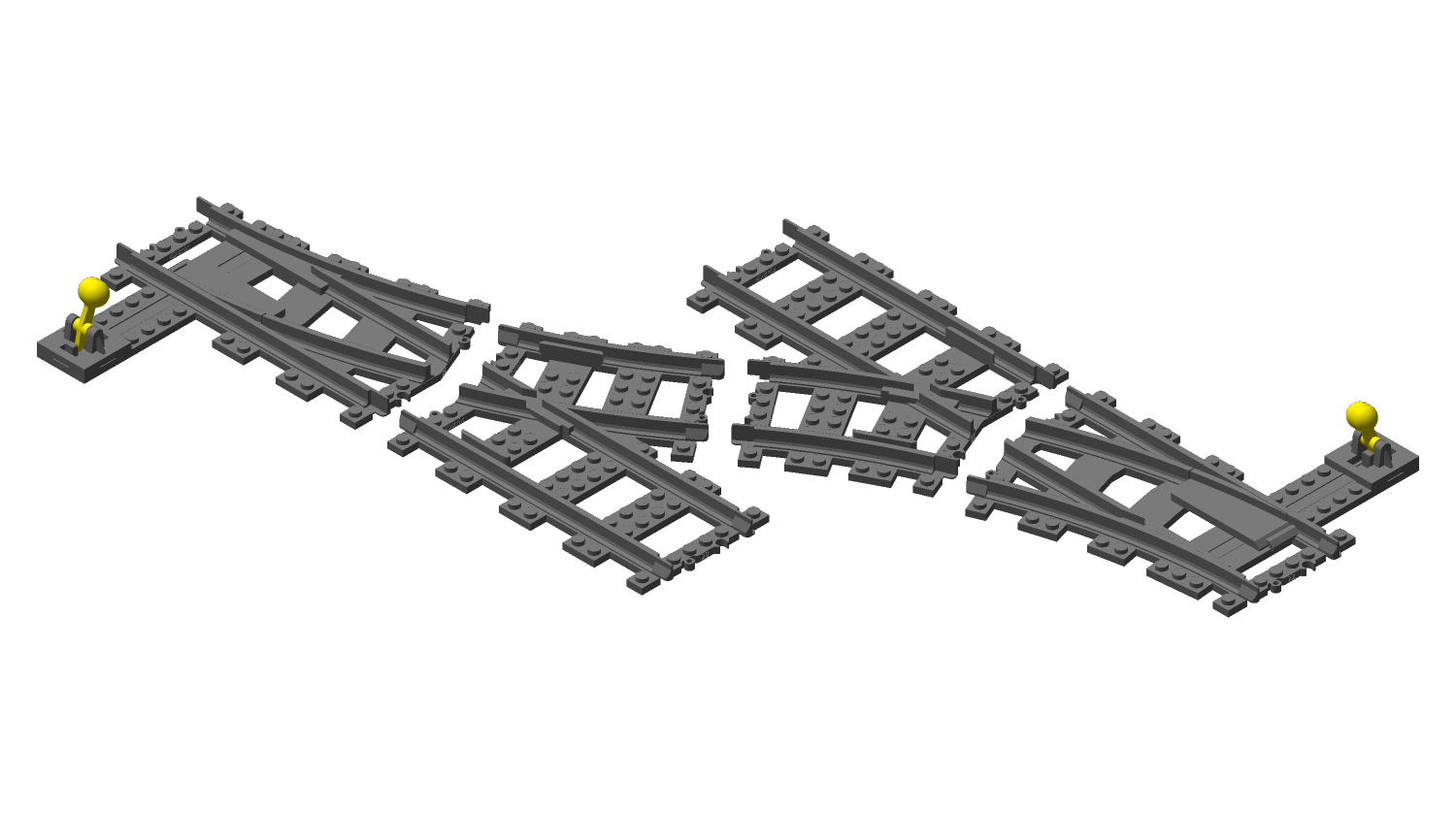

The crossover is modular, it consists of 4 track parts that can be used to build different types of switches.
With the ground throws on the outside, this configuration has optimal ground throw accessibility.
This single crossover can easily be motorized with our track switch motors.
All our switches have a spring mechanism so trains can pass even if the switch is not in the 'correct' position.
The LEGO® style ground throws so will blend in seamlessly with your other switches.

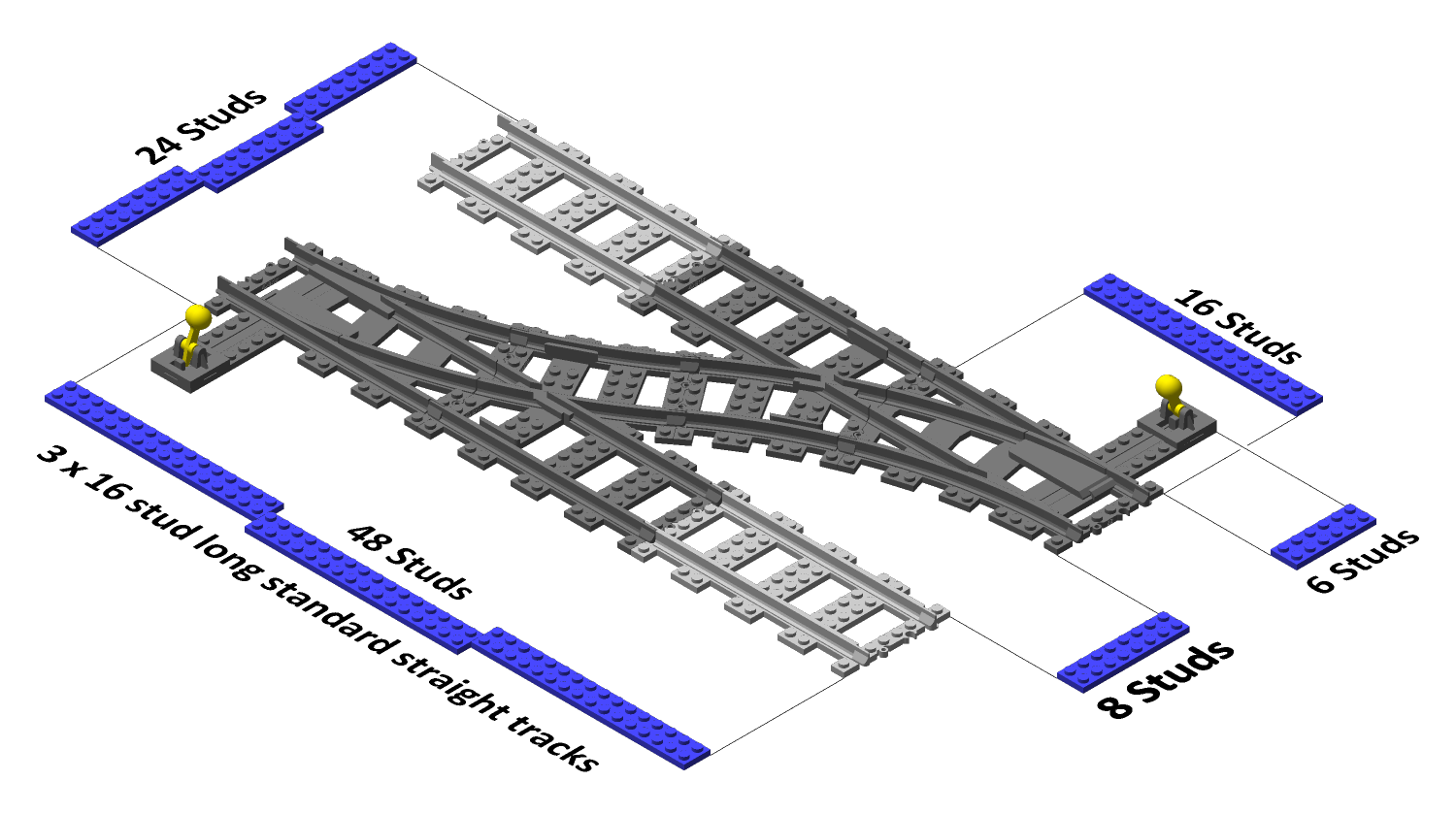

Dimensions

The single crossover is designed to be fully compatible with the LEGO® grid. It fits into layouts that have parallel tracks spaced at an 8 stud distance.

Variants

Our single crossovers come in a number of variants:

211.3: left-turn crossover with the ground throws on the outside. This configuration has optimal ground throw accessibility.
211.4: left-turn crossover with the ground throws on the inside. This configuration has a minimal footprint.

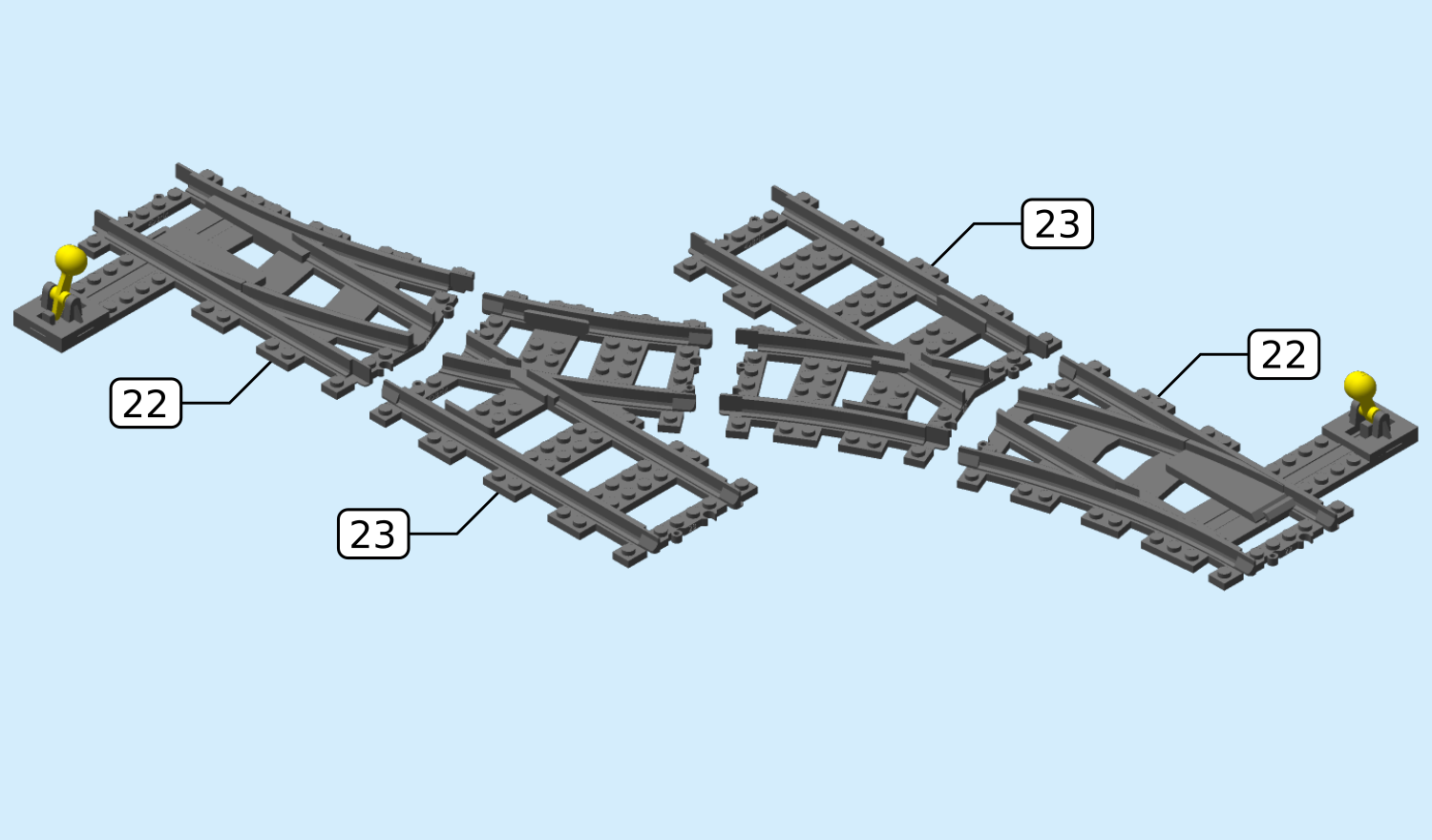

Assembly Instructions

Part List

2x #022

2x #023

2x #022

2x #023

2x #022

2x #023
