Set 222.1 - R56 Parallel Track Switch

Introduction

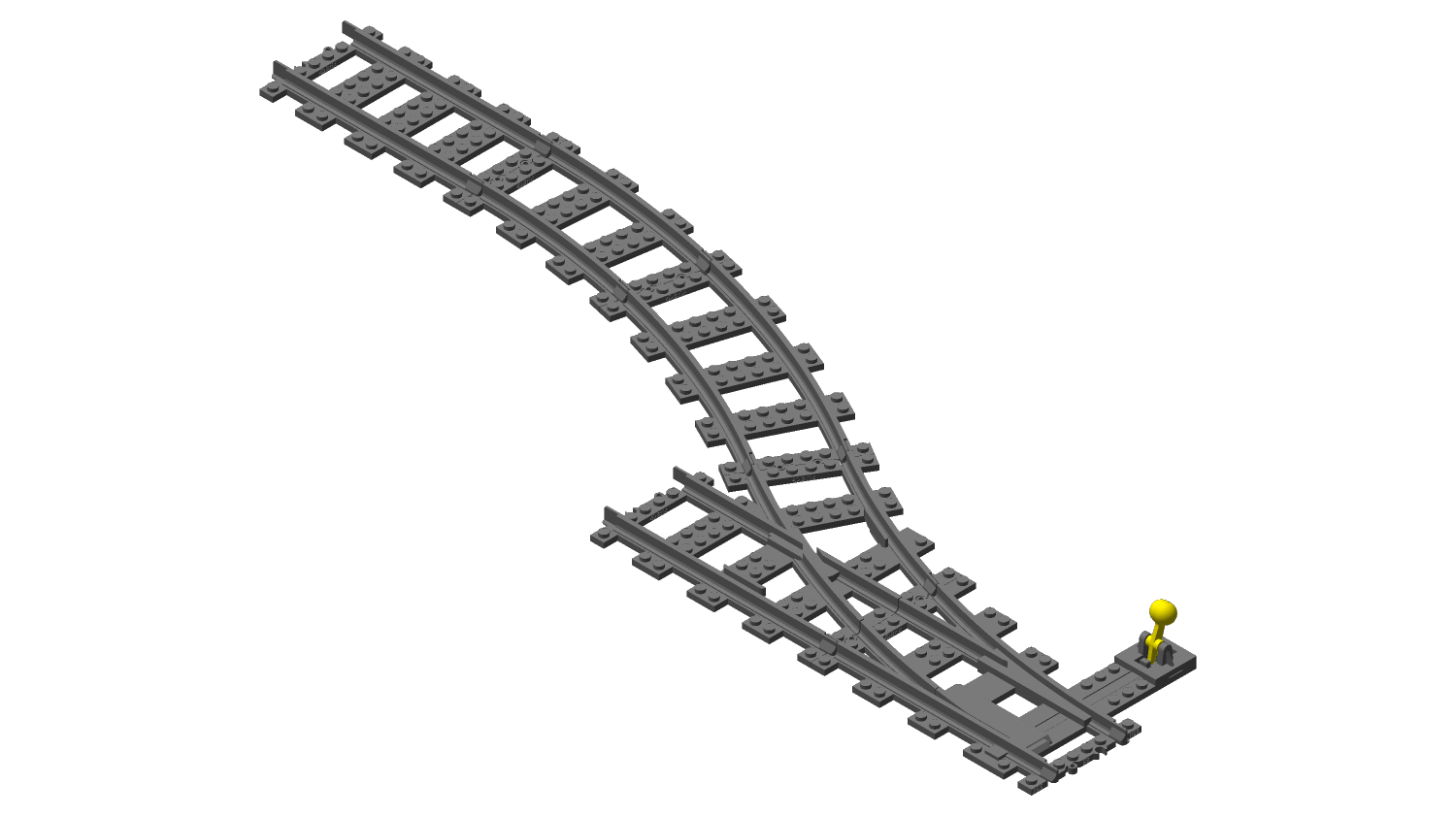

Set 222.1 is right-turn R56 parallel track switch with the ground throw on the inside. It's the R56 equivalent of the LEGO® track switches (set 60238).

Features

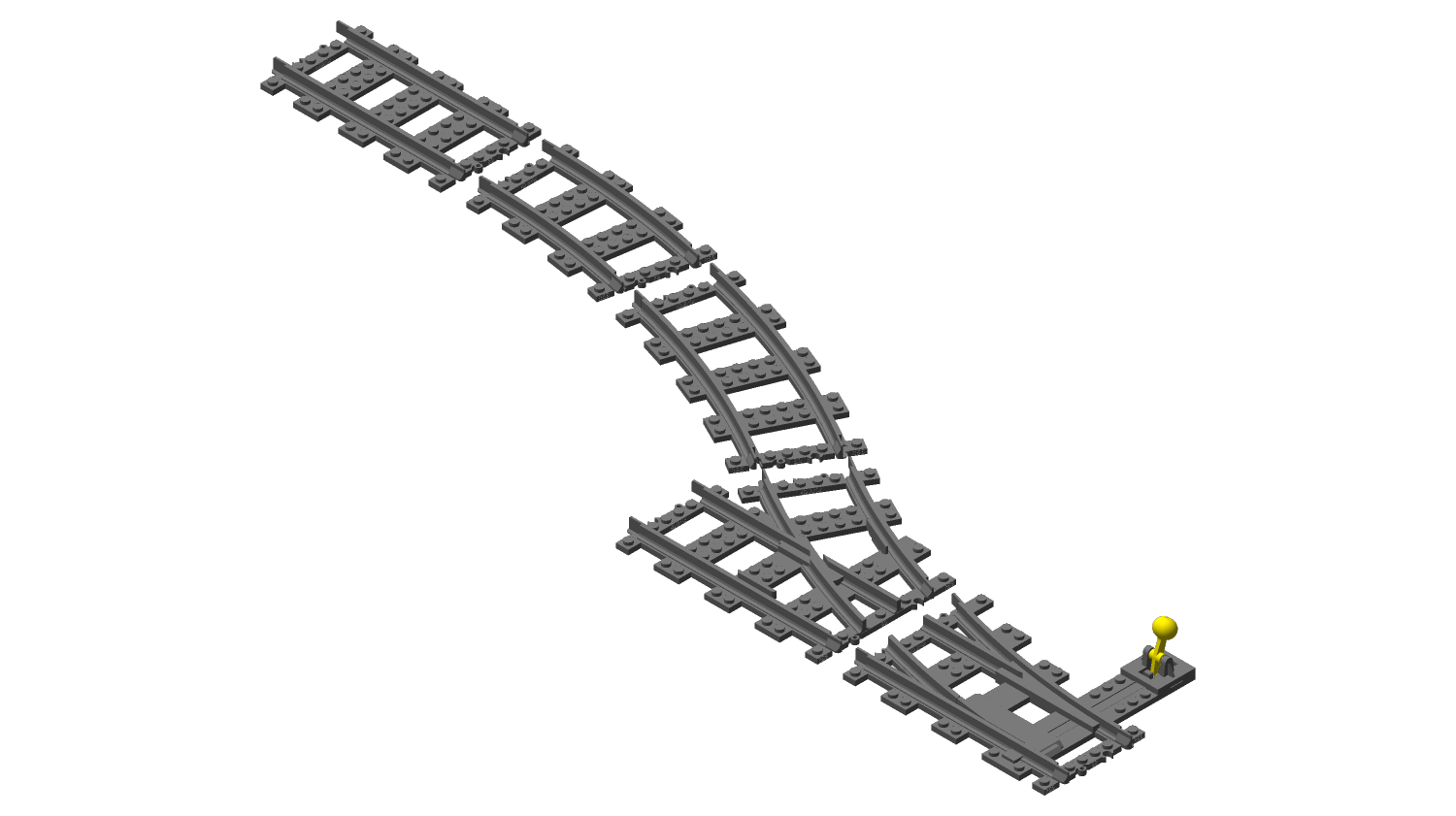

The switch is modular, it consists of 5 track parts that can be used to build different types of switches.

All our switches have a spring mechanism so trains can pass even if the switch is not in the 'correct' position. They have a LEGO® style ground throw so they will blend in seamlessly with your other switches. The switches are also fully compatible with our track switch motors, so this double crossover can easily be motorized.

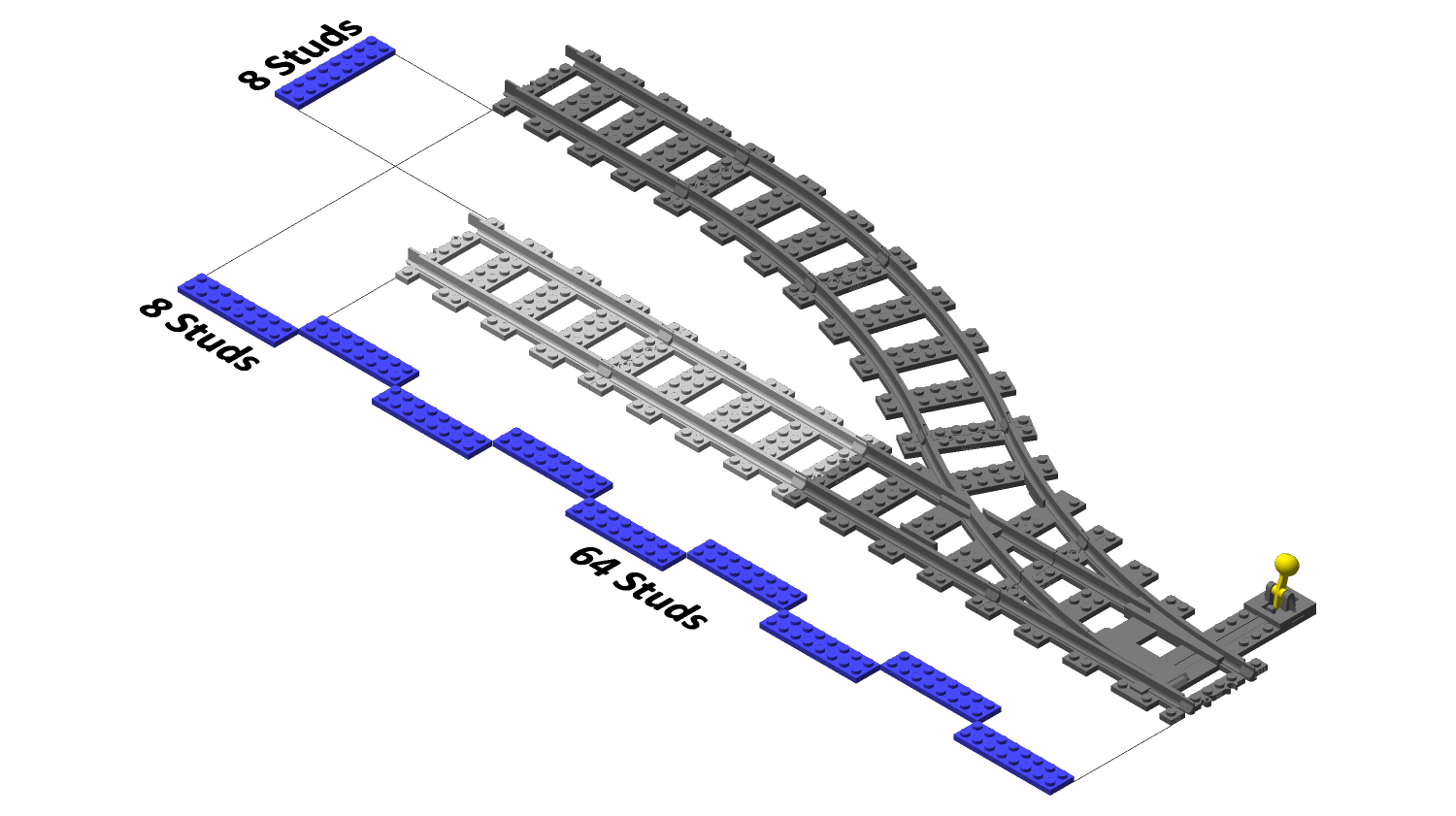

Dimensions

The R56 parallel track switches are designed to be fully compatible with the LEGO® grid. It fits into layouts that have parallel tracks spaced at an 8 stud distance. Depending on the layout, you might need a 8 stud straight track (2.04.001) to close the loop.

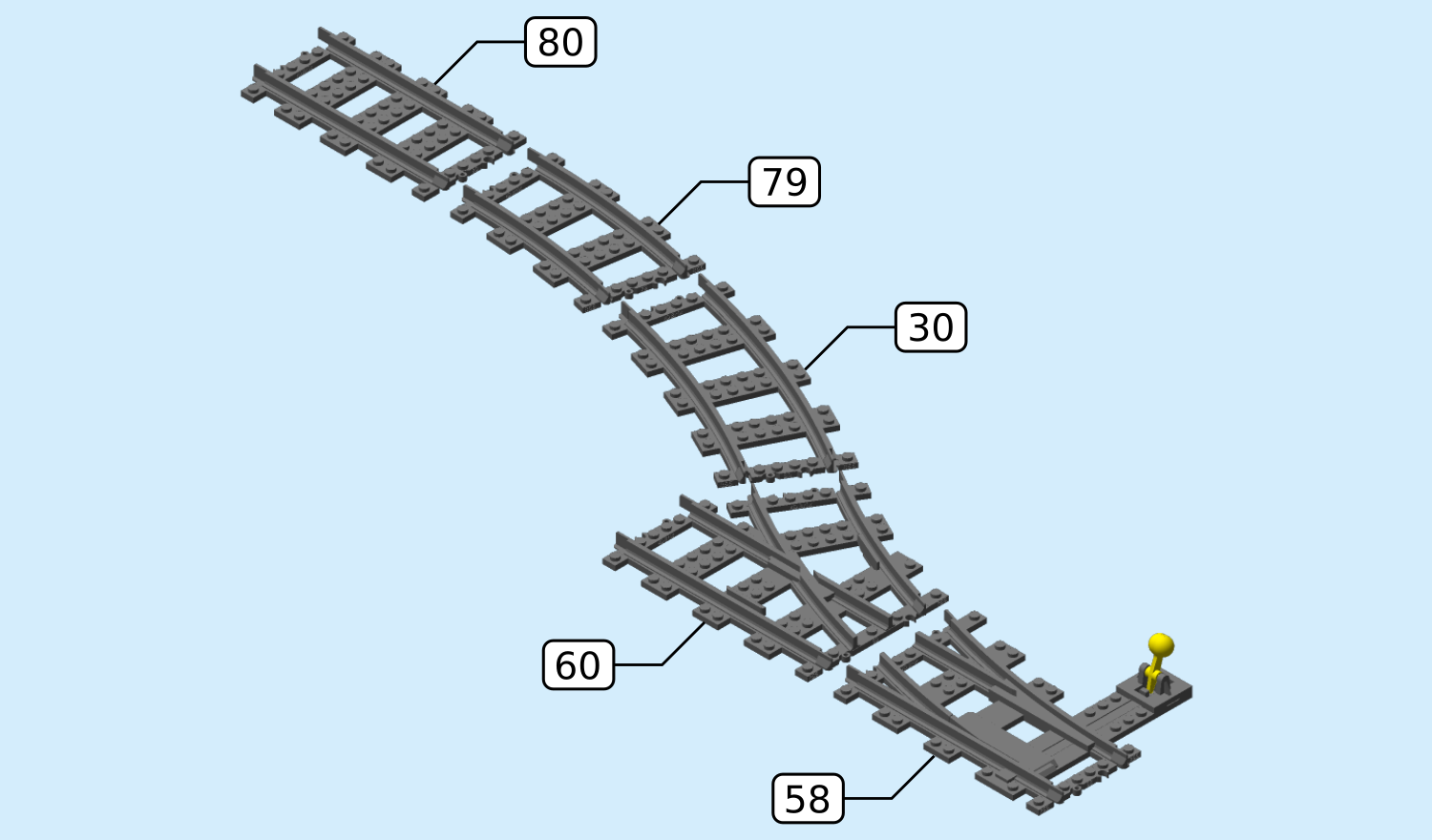

Assembly Instructions

Part List

1x #030

1x #058

1x #060

1x #079

1x #080

1x #030	1x #058
1x #060	1x #079
1x #080

1x #030	1x #058	1x #060
1x #079	1x #080
