Home > Products > Trains > Tracks > Straights & Curves

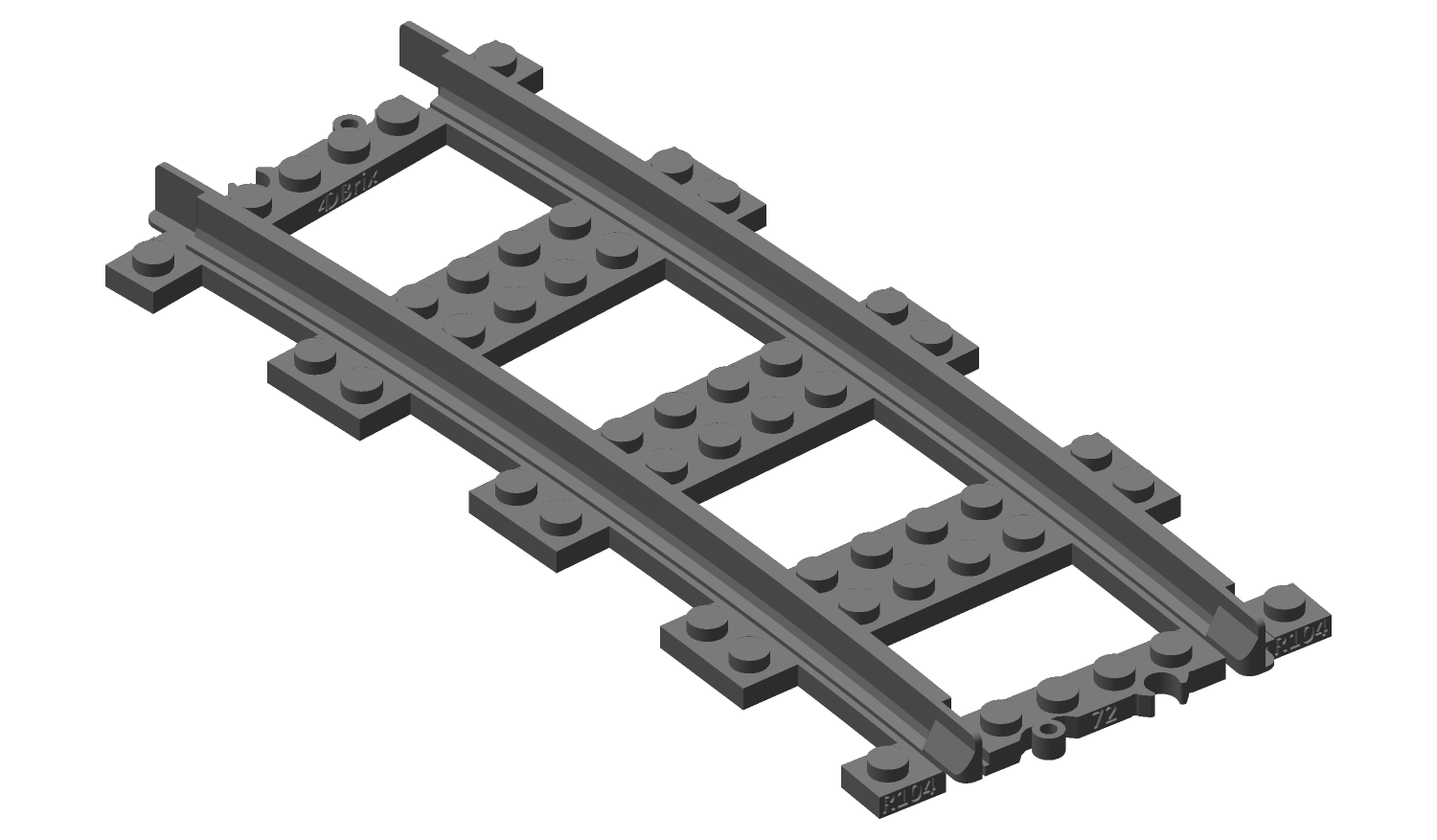

2.04.072 - R104 Curved Track

Introduction

Track 2.04.072 is a R104 curved train track.

Width: 8 studs
Radius: 104 studs
Curve: 10.0°
Fully anti-studded

Description

The R104 curves are designed to be fully compatible with the LEGO® grid. They fit into layouts that have parallel tracks spaced at an 8 stud distance. The curves cover an angle of 10.0° so you need 9 curves for a 90° turn or 36 for a closed loop.

3D Models

Standard Model

Part: 2.04.072
Revision: v06
Release: 18-FEB-23
File: 2-04-072-std_v06.stl (1,650.4KB)
Model History

v06: 18-FEB-23 - Initial upload.

Surface Optimized Model

Part: 2.04.072
Revision: v06
Release: 18-FEB-23
File: 2-04-072-sur_v06.stl (1,796.0KB)
Model History

v08: 18-FEB-23 - Initial upload.
