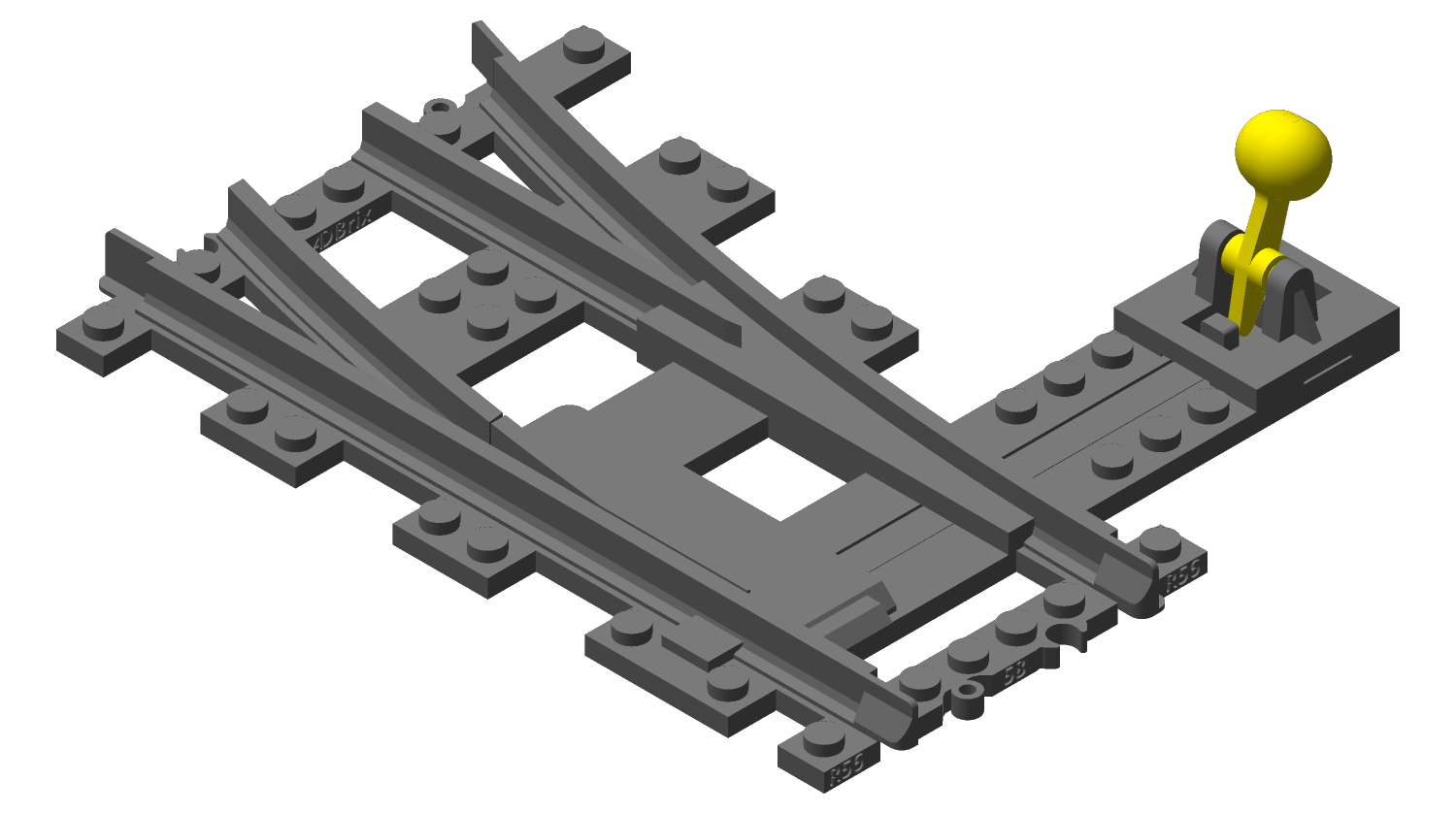

2.04.058 - Switch Track
Introduction
 Track 2.04.058 is an R56 right turn switch track with the ground throw on the inside.
  • Length: 16 studs
  • Radius: 56 studs
  • Turn: 17.4°
3D Models

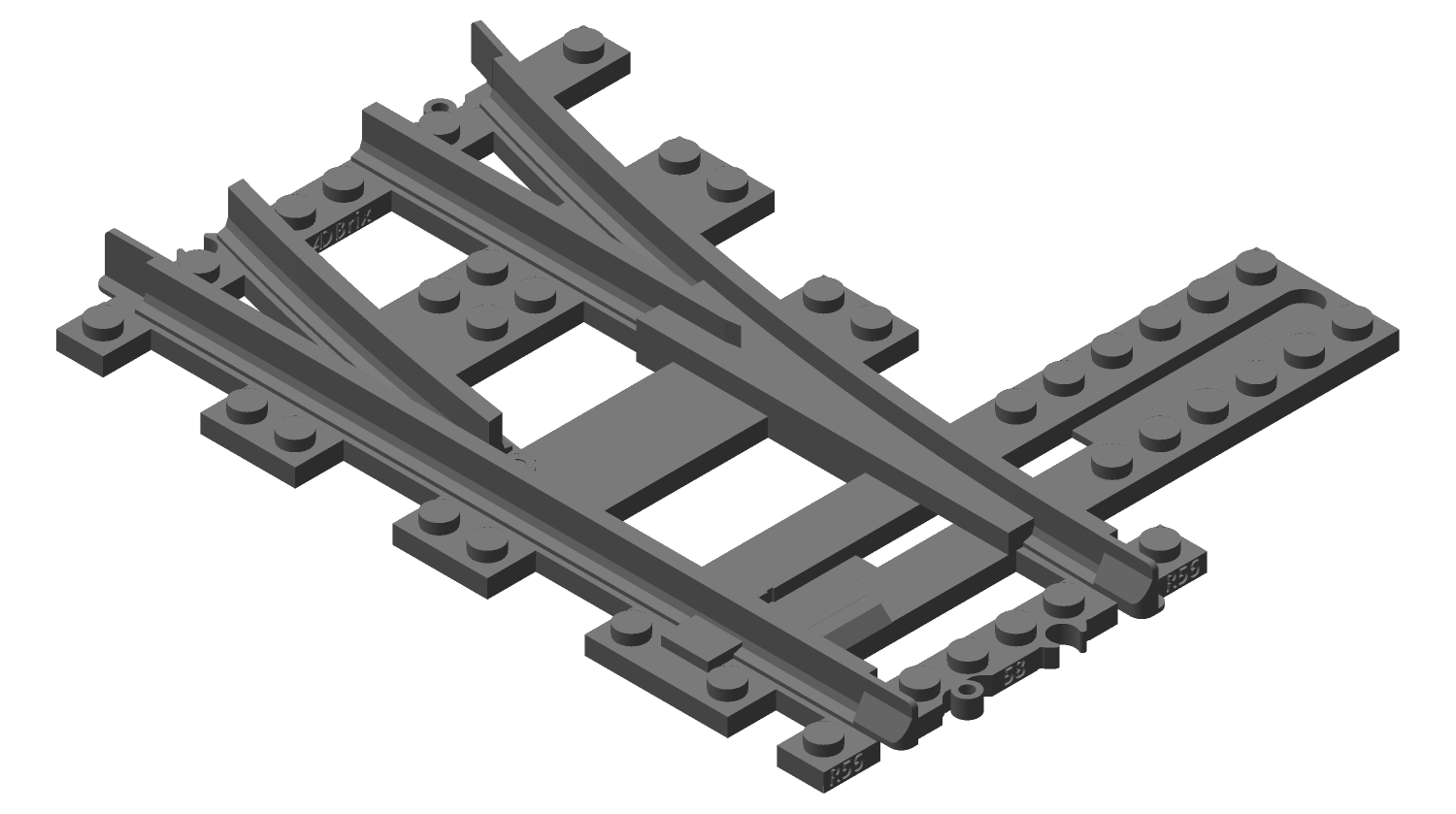

Standard Model
Part: 2.04.058
Revision: v04
Release: 05-FEB-22
File: 2-04-058-std_v04.stl (1,507.4KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v04: 05-FEB-22 - Initial upload.
Surface Optimized Model
Part: 2.04.058
Revision: v04
Release: 05-FEB-22
File: 2-04-058-sur_v04.stl (1,620.8KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v04: 05-FEB-22 - Initial upload.

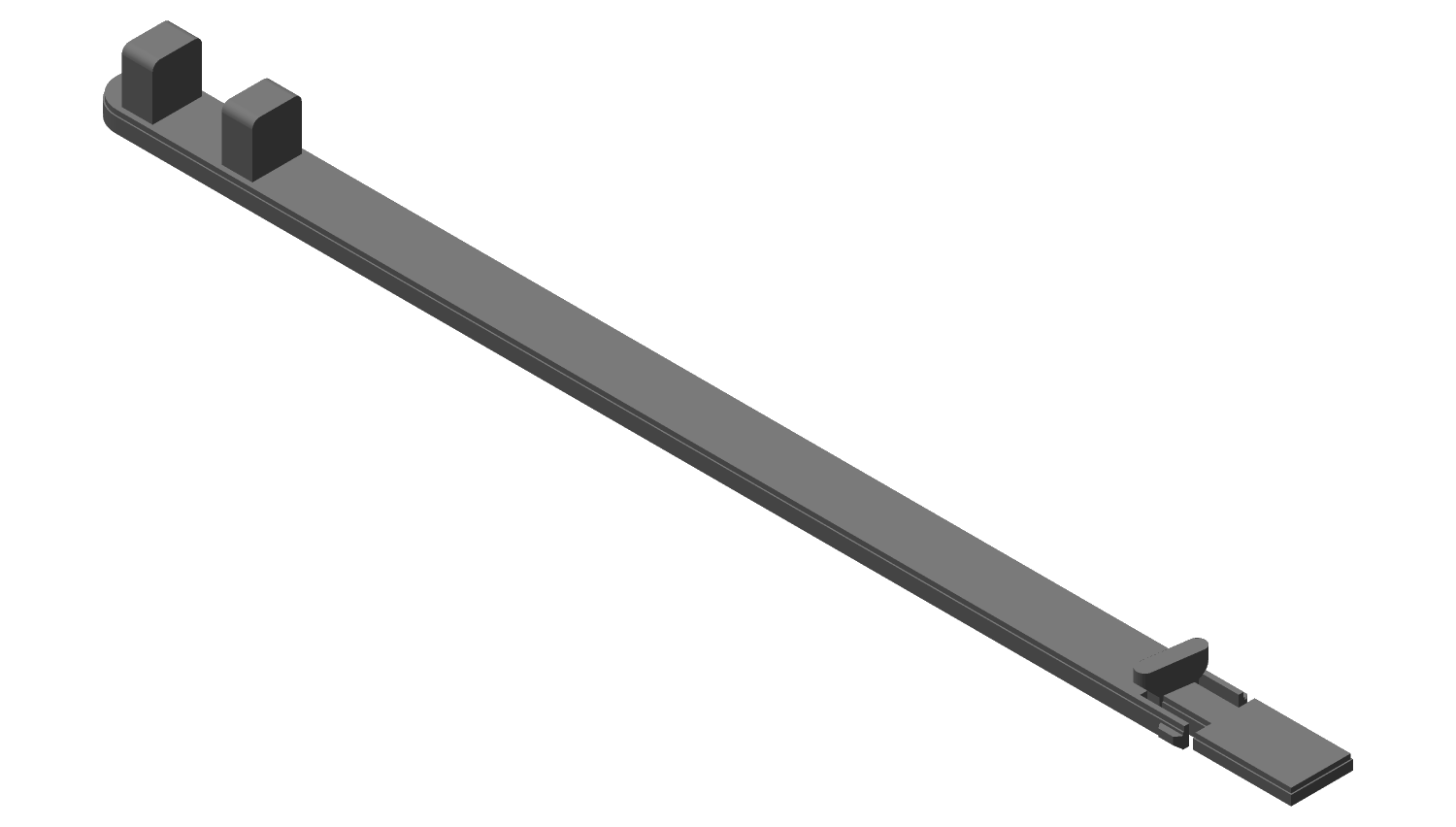

Switch Slider
Part: 2.05.010
Revision: v02
Release: 17-SEP-20
File: 2-05-010_v02.stl (30.2KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 245°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v28: 27-APR-20 - Initial upload.
  • v16: 17-SEP-20 - Remove internal faces / duplicate faces.

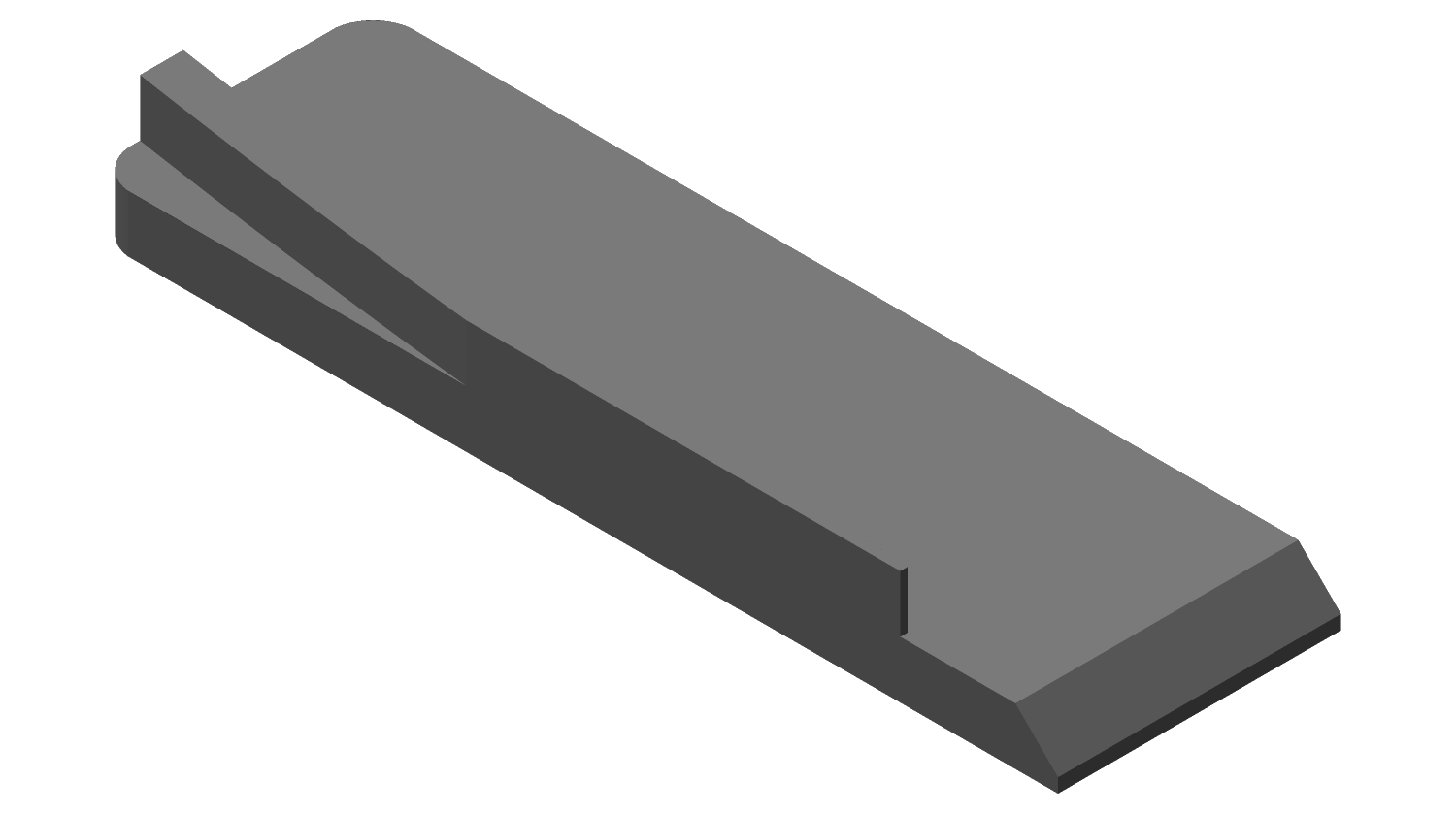

Switch Pivot - Standard Model
Part: 2.05.029
Revision: v01
Release: 05-FEB-22
File: 2-05-029-std_v01.stl (36.4KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v01: 05-FEB-22 - Initial upload.
Switch Pivot - Surface Optimized
Part: 2.05.029
Revision: v01
Release: 05-FEB-22
File: 2-05-029-sur_v01.stl (52.2KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v01: 05-FEB-22 - Initial upload.
Ground Throw Bracket
Part: 2.05.003
Revision: v03
Release: 17-SEP-20
File: 2-05-003_v03.stl (89.3KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 245°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v02: 27-APR-20 - Initial upload.
  • v03: 17-SEP-20 - Remove internal faces / duplicate faces.
Switch Lever
Part: 2.05.004
Revision: v02
Release: 17-SEP-20
File: 2-05-004_v02.stl (153.3KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.14mm
  • Nozzle Diameter: 0.4mm
  • Support: 20° angle
  • Infill: 30%

Model History
  • v28: 27-APR-20 - Initial upload.
  • v16: 17-SEP-20 - Remove internal faces / duplicate faces.
