2.04.045 - Wye Switch Track

Introduction

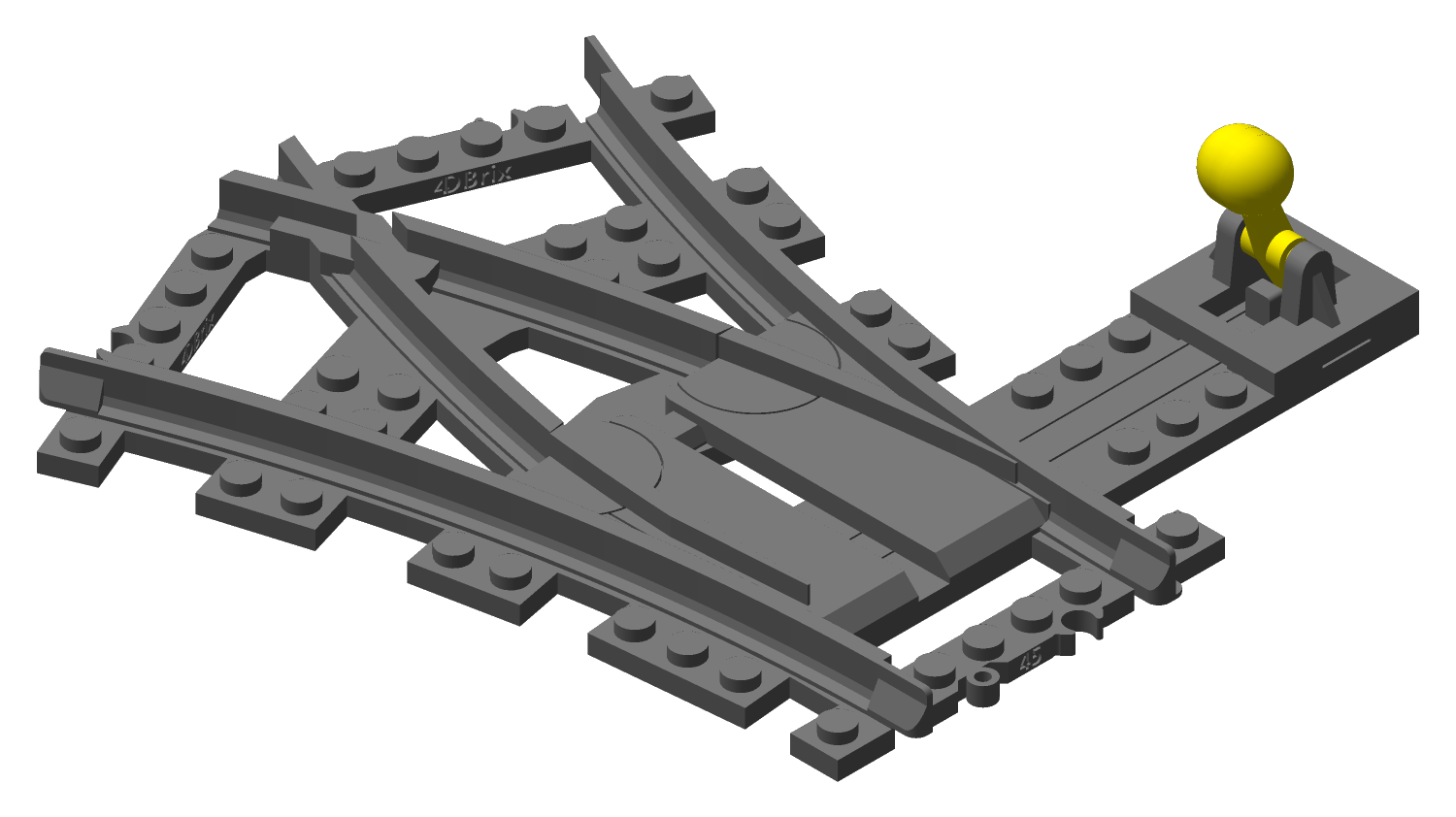

Track 2.04.045 is a wye switch track with the ground throw on the right-hand side.

3D Models

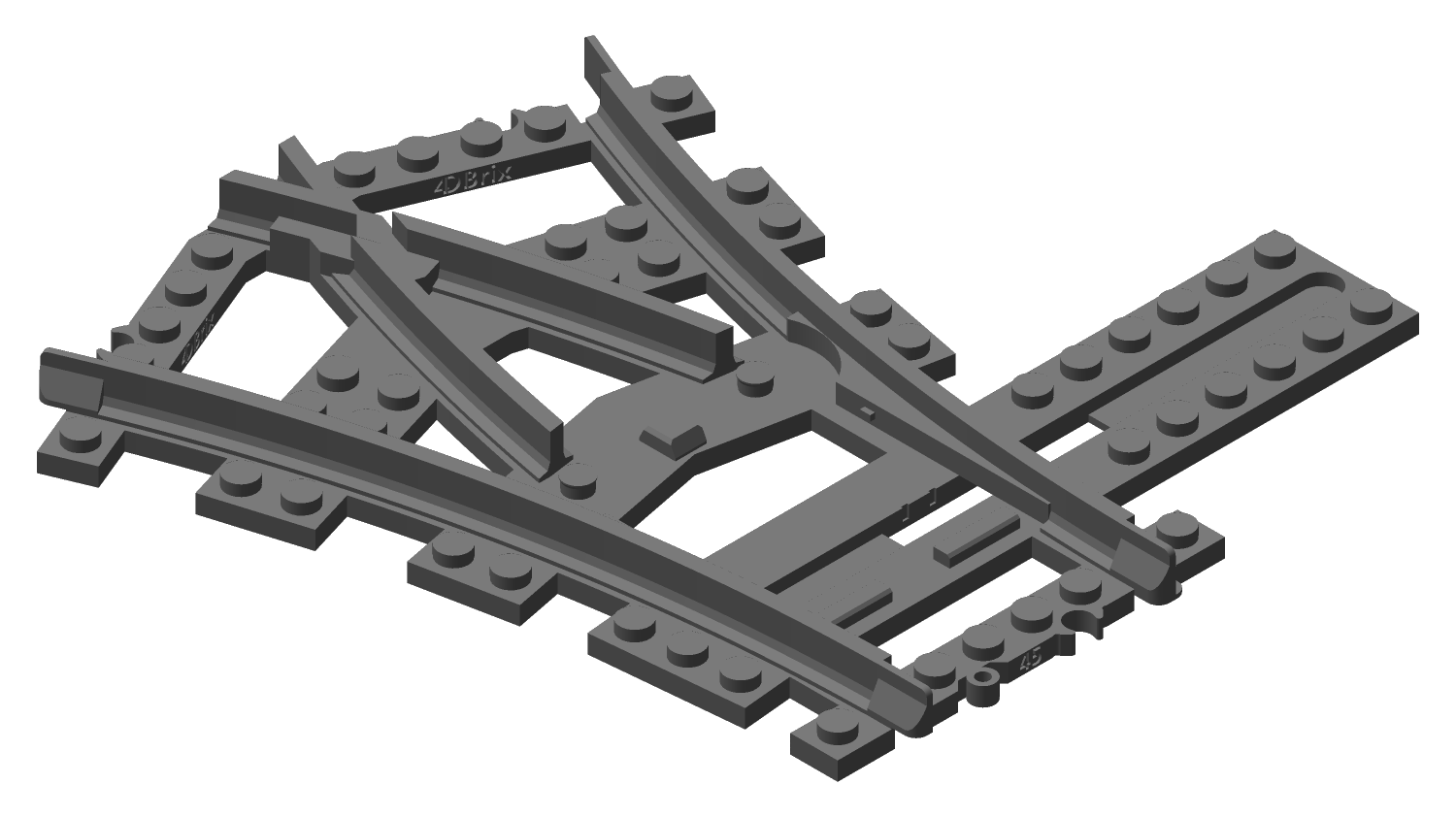

Standard Model

Part: 2.04.045
Revision: v11
Release: 15-OCT-20
File: 2-04-045-std_v11.stl (1,764.0KB)
Suggested Print Settings

Surface Optimized Model

Part: 2.04.045
Revision: v11
Release: 15-OCT-20
File: 2-04-045-sur_v11.stl (1,974.7KB)
Suggested Print Settings

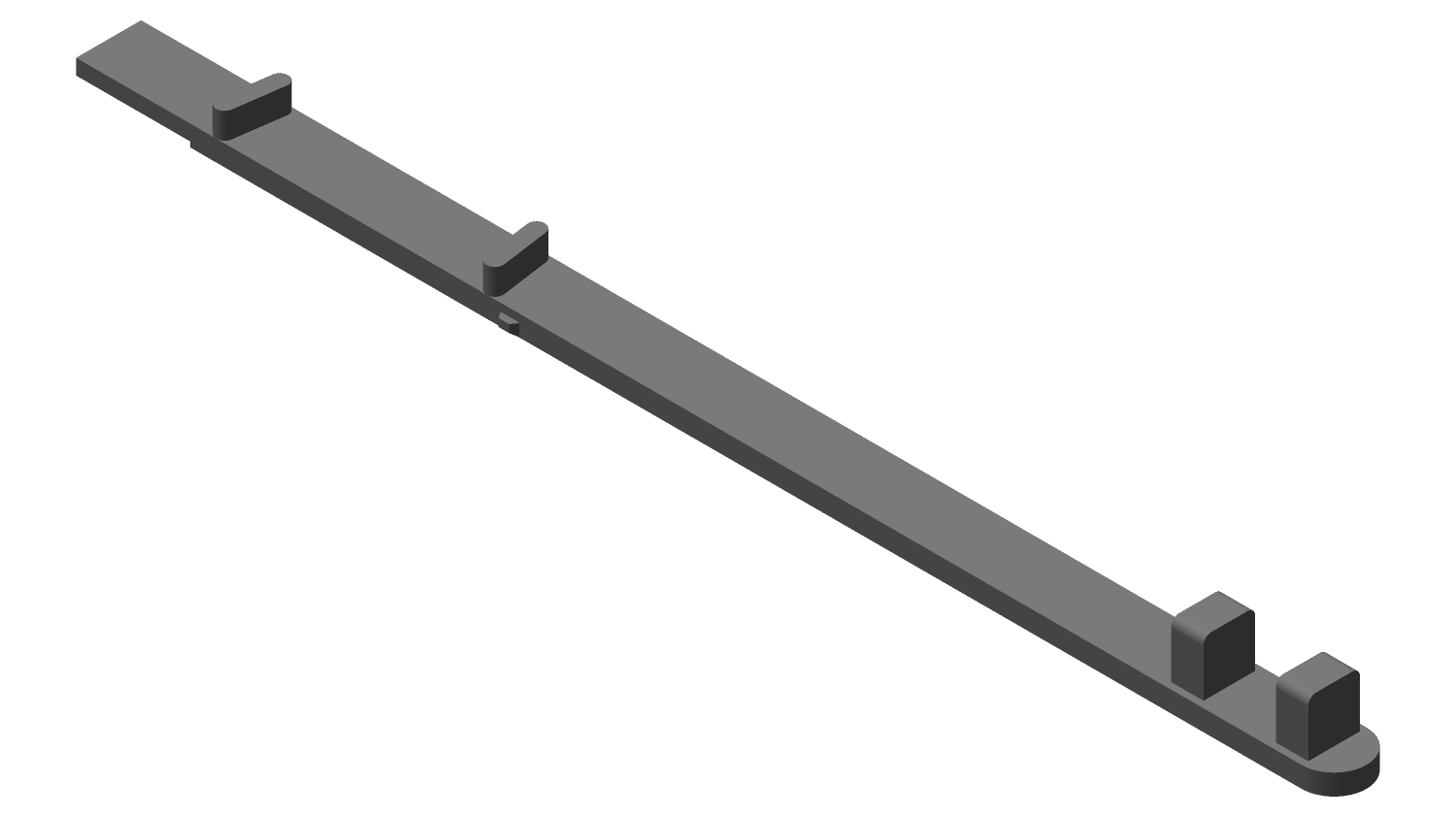

Wye Switch Slider - Right

Part: 2.05.020
Revision: v02
Release: 27-MAR-21
File: 2-05-020_v02.stl (51.1KB)
Suggested Print Settings

Wye Pivot, Right - Standard Model

Part: 2.05.021
Revision: v01
Release: 16-OCT-20
File: 2-05-021-std_v01.stl (35.5KB)
Suggested Print Settings

Wye Pivot, Right - Surface Optimized

Part: 2.05.021
Revision: v01
Release: 16-OCT-20
File: 2-05-021-sur_v01.stl (40.4KB)
Suggested Print Settings

Wye Pivot, Left - Standard Model

Part: 2.05.022
Revision: v01
Release: 16-OCT-20
File: 2-05-022-std_v01.stl (28.1KB)
Suggested Print Settings

Wye Pivot, Left - Surface Optimized

Part: 2.05.022
Revision: v01
Release: 16-OCT-20
File: 2-05-022-sur_v01.stl (33.0KB)
Suggested Print Settings

Switch Cover, Right

Part: 2.05.018
Revision: v01
Release: 15-OCT-20
File: 2-05-018_v01.stl (12.5KB)
Suggested Print Settings

Switch Cover, Left

Part: 2.05.019
Revision: v01
Release: 15-OCT-20
File: 2-05-019_v01.stl (12.5KB)
Suggested Print Settings

Ground Throw Bracket

Part: 2.05.003
Revision: v03
Release: 17-SEP-20
File: 2-05-003_v03.stl (89.3KB)
Suggested Print Settings

Switch Lever

Part: 2.05.004
Revision: v02
Release: 17-SEP-20
File: 2-05-004_v02.stl (153.3KB)
Suggested Print Settings
