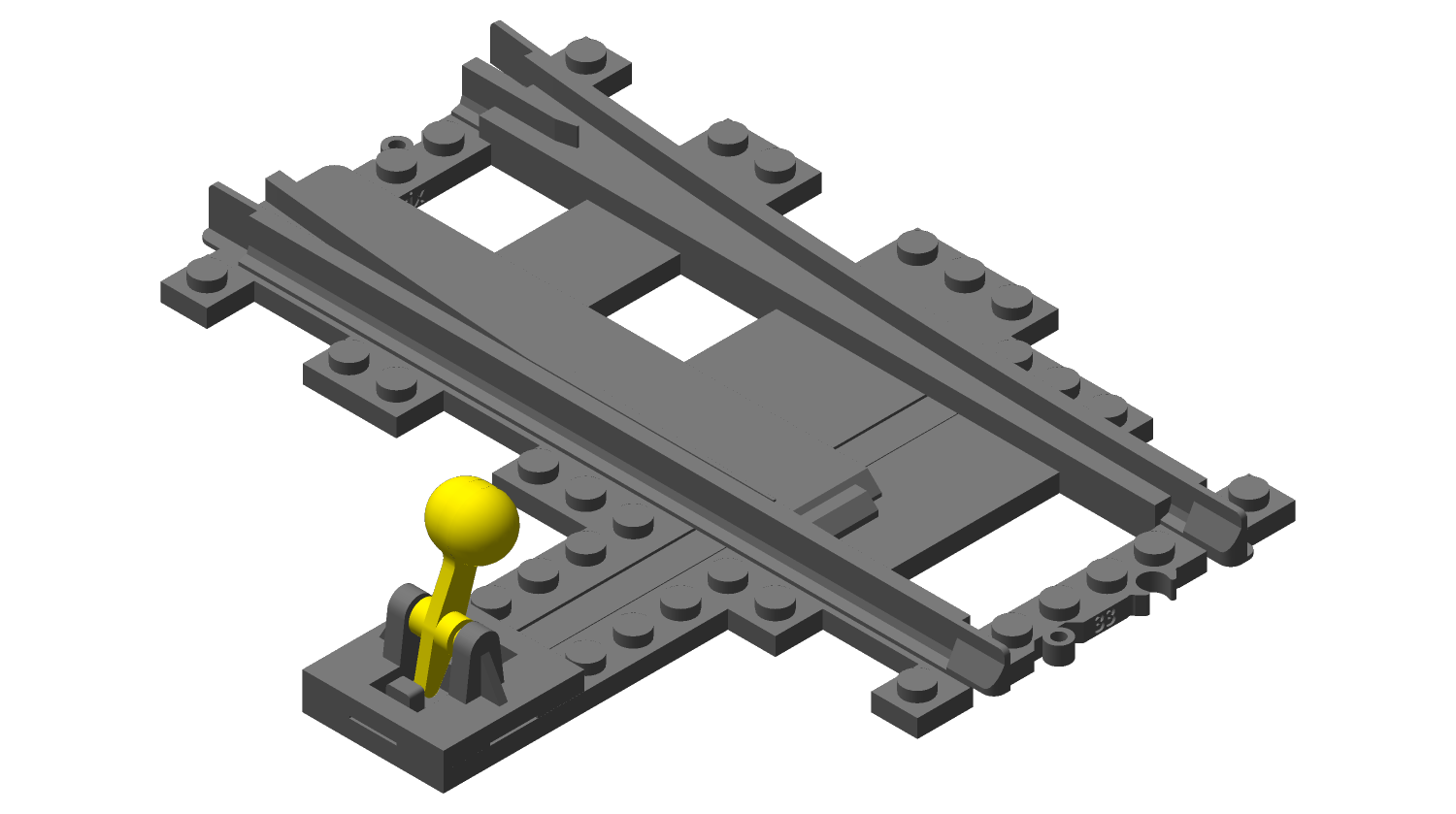

2.04.033 - Switch Track

Introduction

Track 2.04.033 is an Ultimate Railroader™ right turn switch track with the ground throw on the outside.

3D Models

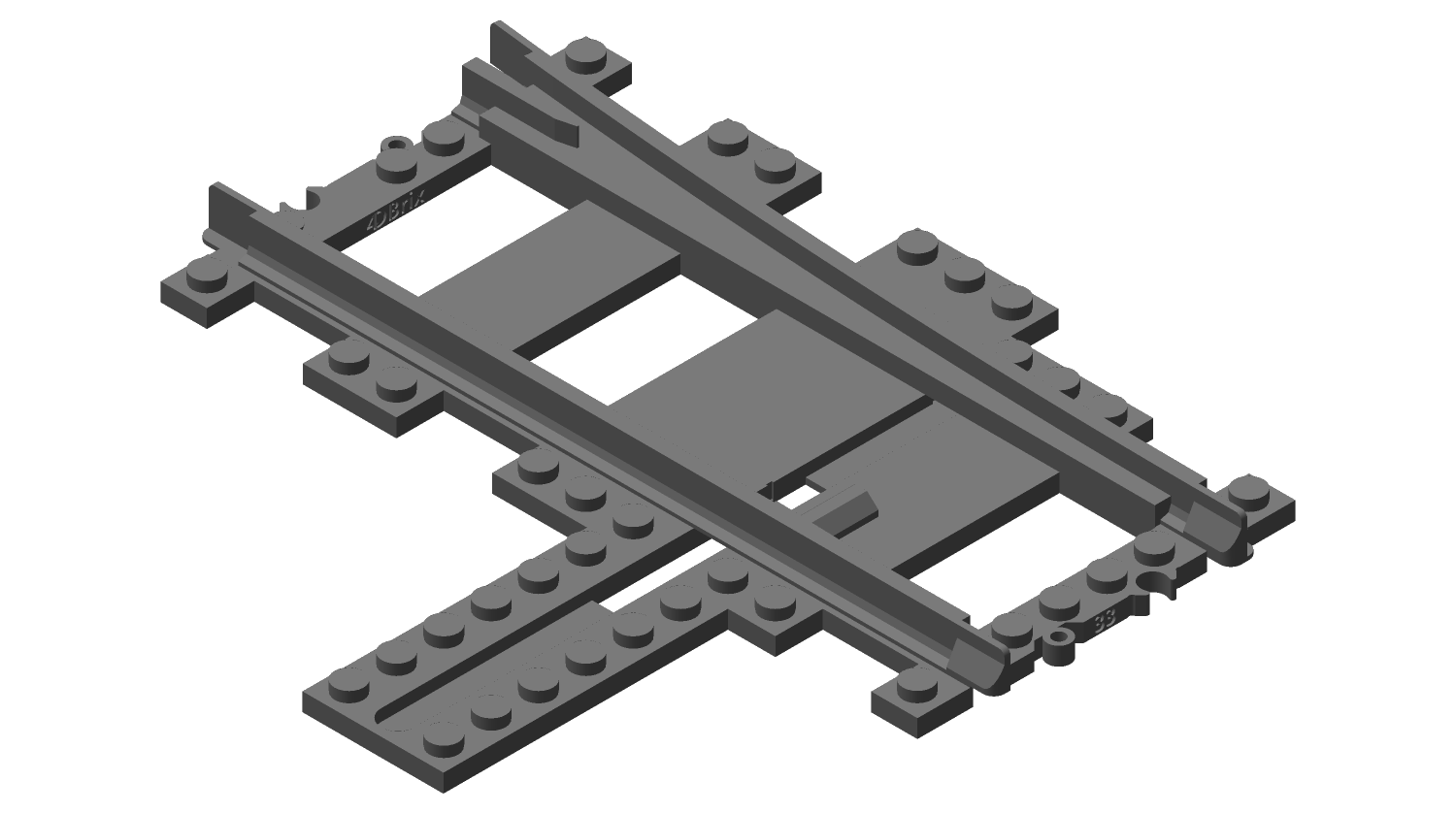

Standard Model

Part: 2.04.033
Revision: v14
Release: 07-JUN-21
File: 2-04-033-std_v14.stl (1,330.3KB)
Suggested Print Settings

Surface Optimized Model

Part: 2.04.033
Revision: v14
Release: 07-JUN-21
File: 2-04-033-sur_v14.stl (1,361.3KB)
Suggested Print Settings

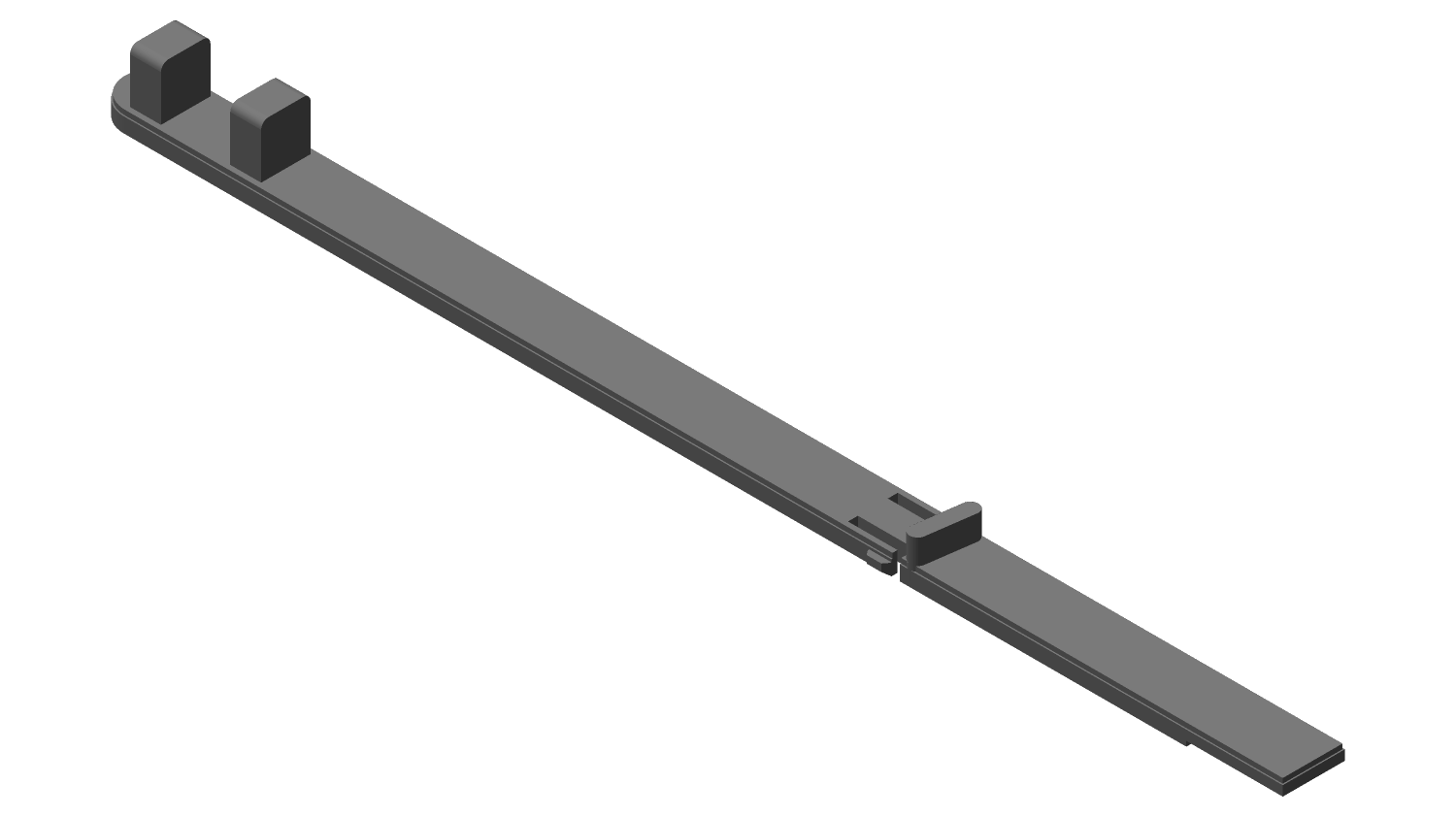

Switch Slider

Part: 2.05.012
Revision: v02
Release: 17-SEP-20
File: 2-05-012_v02.stl (33.0KB)
Suggested Print Settings

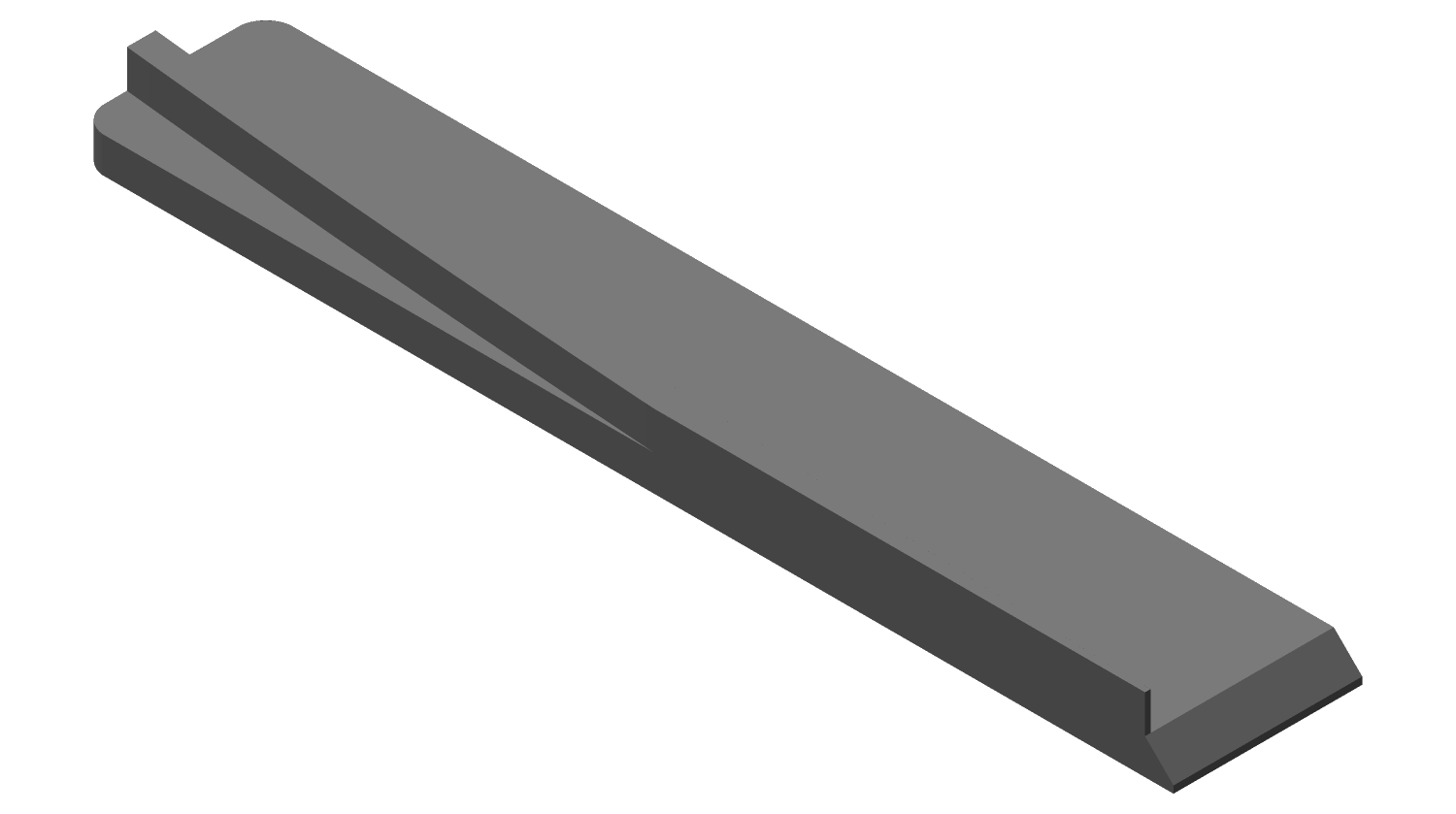

R148 Switch Pivot - Standard Model

Part: 2.05.025
Revision: v01
Release: 08-JUN-21
File: 2-05-025-std_v01.stl (33.6KB)
Suggested Print Settings

R148 Switch Pivot - Surface Optimized

Part: 2.05.025
Revision: v01
Release: 08-JUN-21
File: 2-05-025-sur_v01.stl (45.9KB)
Suggested Print Settings

Ground Throw Bracket

Part: 2.05.003
Revision: v03
Release: 17-SEP-20
File: 2-05-003_v03.stl (89.3KB)
Suggested Print Settings

Switch Lever

Part: 2.05.004
Revision: v02
Release: 17-SEP-20
File: 2-05-004_v02.stl (153.3KB)
Suggested Print Settings
