2.04.032 - R88 Curved Track

Introduction

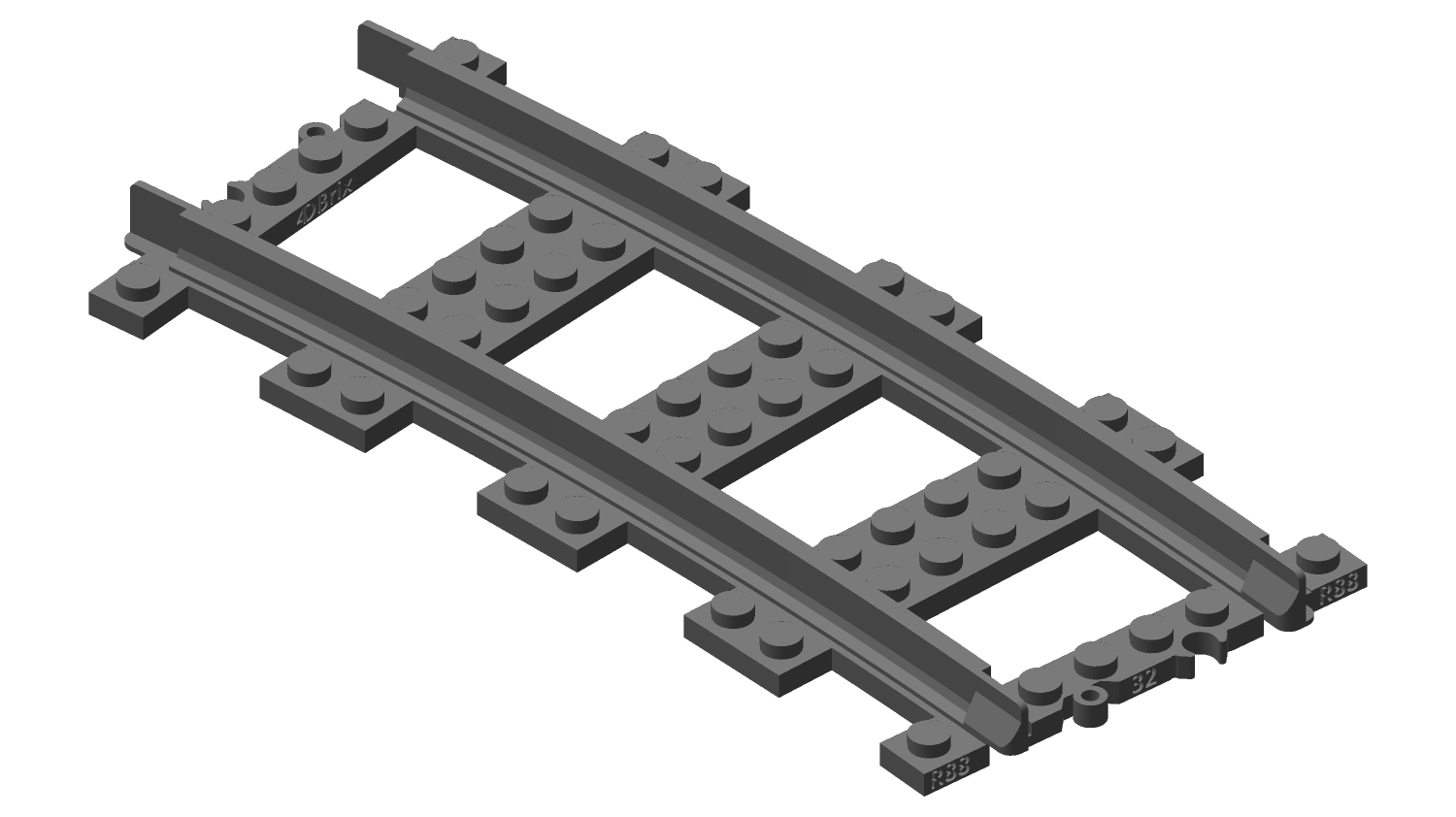

Track 2.04.032 is a R88 curved train track.

Width: 8 studs
Radius: 56 studs
Curve: 11.25°
Fully anti-studded

Description

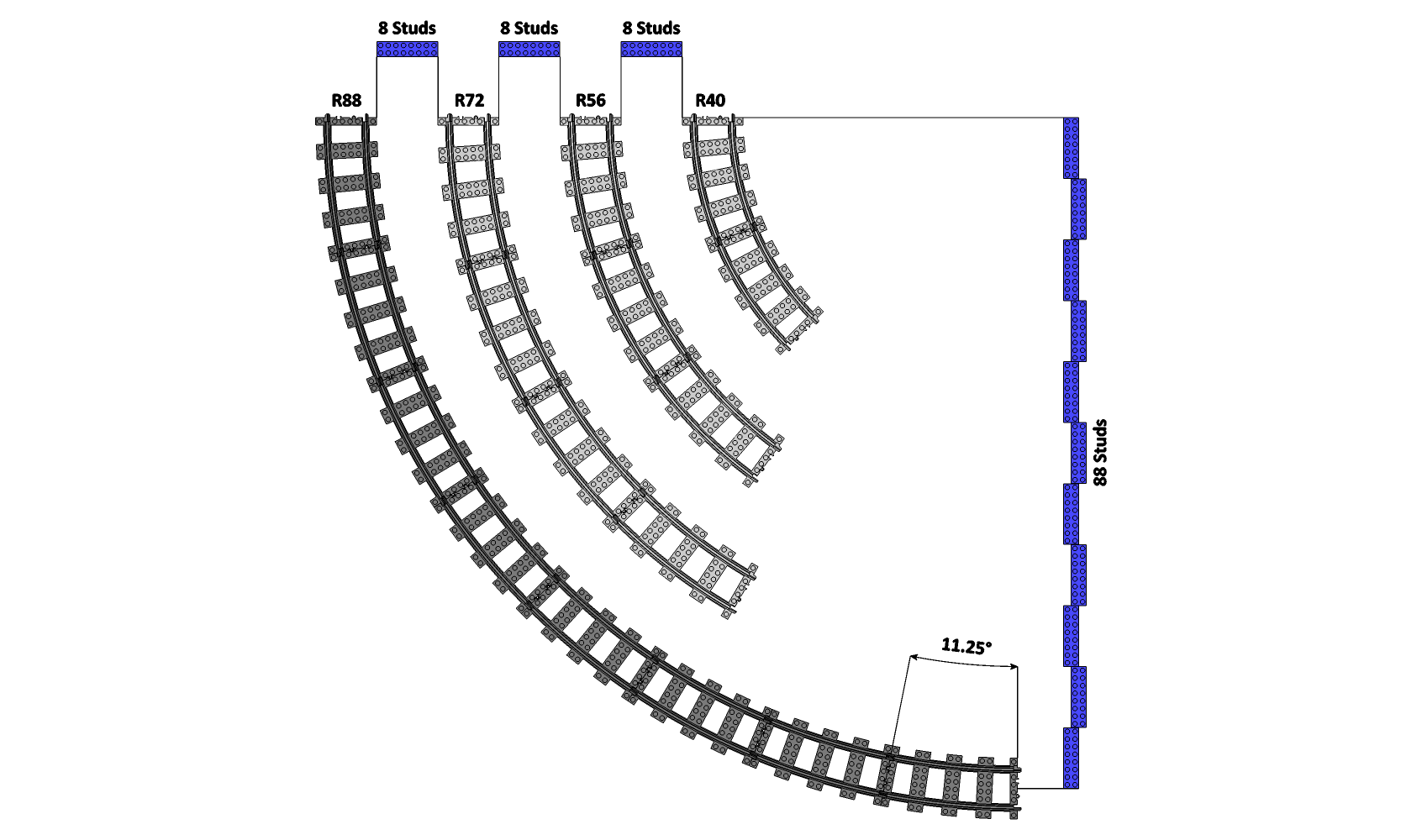

The R56 curves are designed to be fully compatible with the LEGO® grid. They fit into layouts that have parallel tracks spaced at an 8 stud distance. The curves cover an angle of 11.25° so you need 8 curves for a 90° turn or 32 for a closed loop.

3D Models

Standard Model

Part: 2.04.032
Revision: v12
Release: 14-SEP-20
File: 2-04-032-std_v12.stl (1,649.0KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v10: 16-MAY-20 - Initial upload.
v11: 30-JUL-20 - Remove floating face that gave issue with PrusaSlicer.
v12: 14-SEP-20 - Remove internal faces / duplicate faces.

Surface Optimized Model

Part: 2.04.032
Revision: v12
Release: 14-SEP-20
File: 2-04-032-sur_v12.stl (1,792.7KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v10: 16-MAY-20 - Initial upload.
v11: 30-JUL-20 - Remove floating face that gave issue with PrusaSlicer.
v12: 14-SEP-20 - Remove internal faces / duplicate faces.

Ballast Plate Model

Part: 2.04.032.B
Revision: v02
Release: 08-JAN-23
File: 2-04-032-bal_v02.stl (1,709.1KB)
Model History

v02: 08-JAN-22 - Initial upload.
