Home > Products > Trains > Tracks > R40 Track Switches

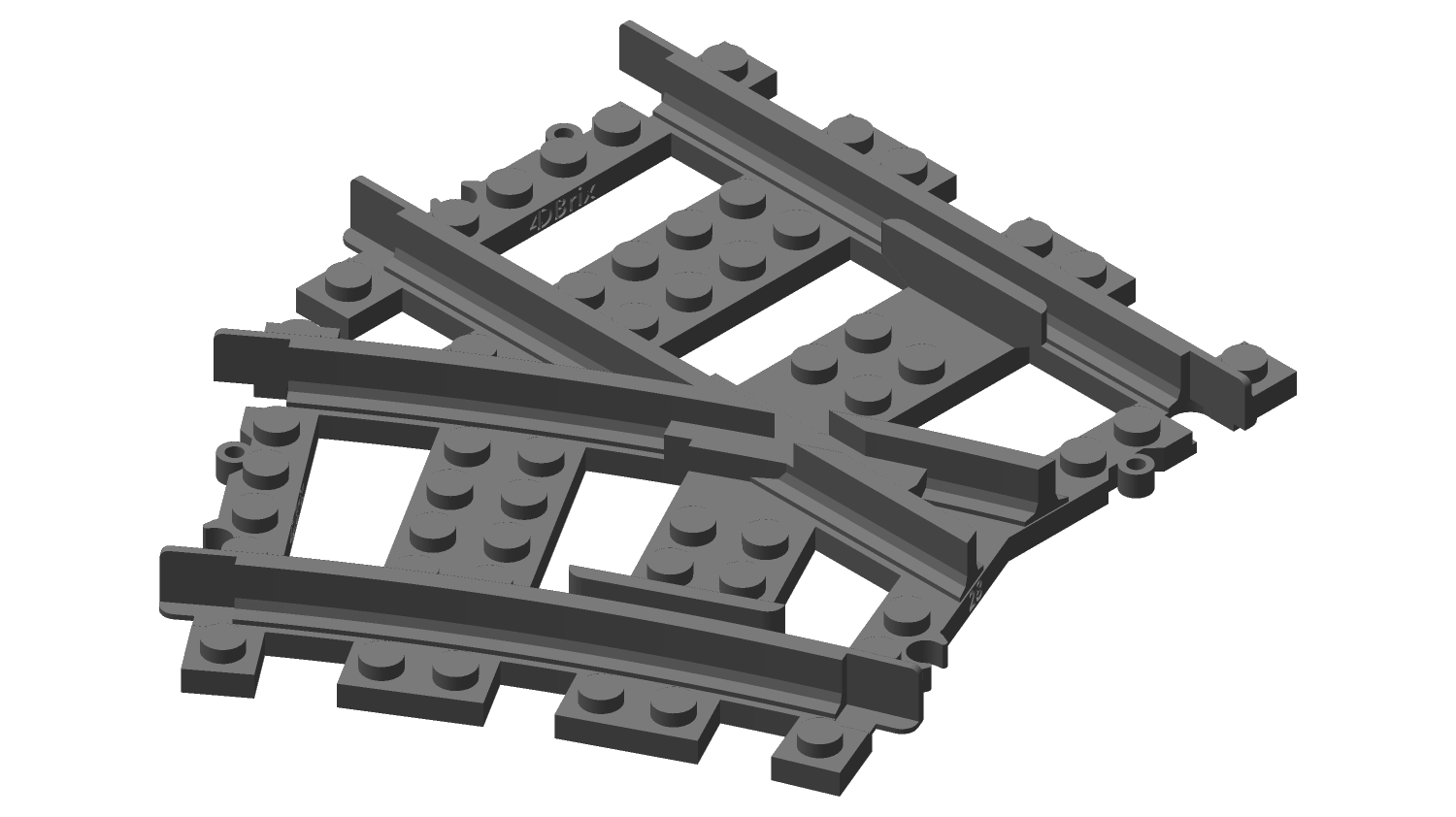

2.04.028 - Divergent Track

Introduction

Track 2.04.028 is a left turn divergent track to make rail yards. The straight part is shorter than the standard divergent tracks so the rail yard lines are exactly 8 studs apart.

Length: 10.7 studs
Radius: 40 studs
Turn: ~14.4°

3D Models

Standard Model

Part: 2.04.028
Revision: v09
Release: 19-SEP-20
File: 2-04-028-std_v09.stl (1,711.5KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Surface Optimized Model

Part: 2.04.028
Revision: v09
Release: 19-SEP-20
File: 2-04-028-sur_v09.stl (1,791.1KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%
