Home > Products > Trains > Tracks > R40 Track Switches

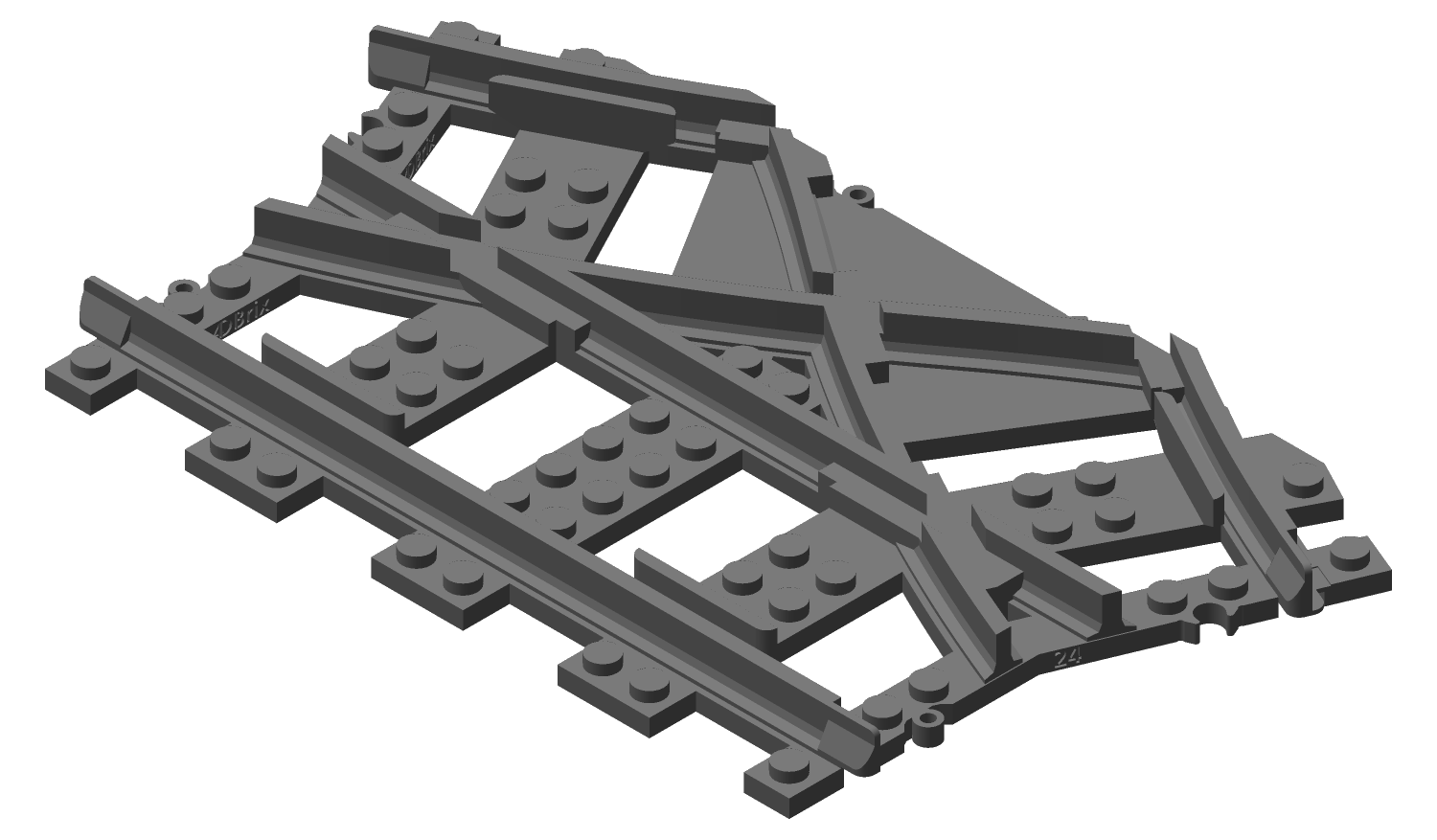

2.04.024 - Crossover Intersection

Introduction

Track 2.04.024 an intersection tracks for double and triple crossovers.

Length: 16 studs
Width: 12 studs
Radius: 40 studs

There is a variant (2.01.24S) with a few extra studs in the central part of the crossover, this can help with ballasting.

3D Models

Standard Model

Part: 2.04.024
Revision: v18
Release: 31-AUG-20
File: 2-04-024-std_v18.stl (1,807.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v17: 10-JUL-20 - Initial upload.
v18: 31-Aug-20 - Remove internal/duplicate faces that gave issues in Cura.

Surface Optimized Model

Part: 2.04.024
Revision: v18
Release: 31-AUG-20
File: 2-04-024-sur_v18.stl (1,967.8KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v17: 10-JUL-20 - Initial upload.
v18: 31-Aug-20 - Remove internal/duplicate faces that gave issues in Cura.

Standard Model - Extra Studs

Part: 2.04.024-S
Revision: v01
Release: 03-FEB-21
File: 2-04-024-S-std_v01.stl (1,946.0KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Surface Optimized Model - Extra Studs

Part: 2.04.024-S
Revision: v01
Release: 03-FEB-21
File: 2-04-024-S-sur_v01.stl (2,091.2KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%
