2.04.022 - Switch Track
Introduction

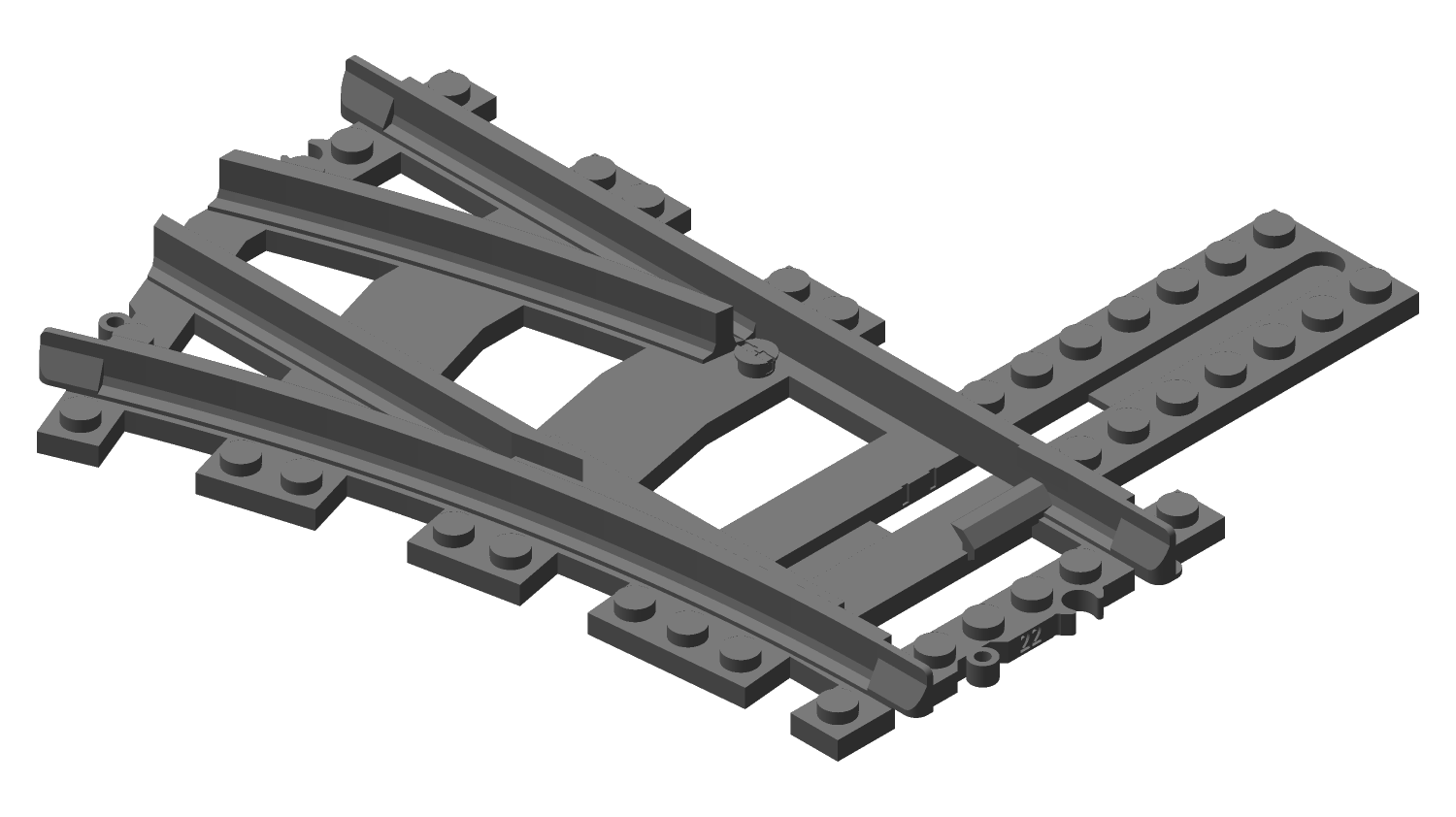

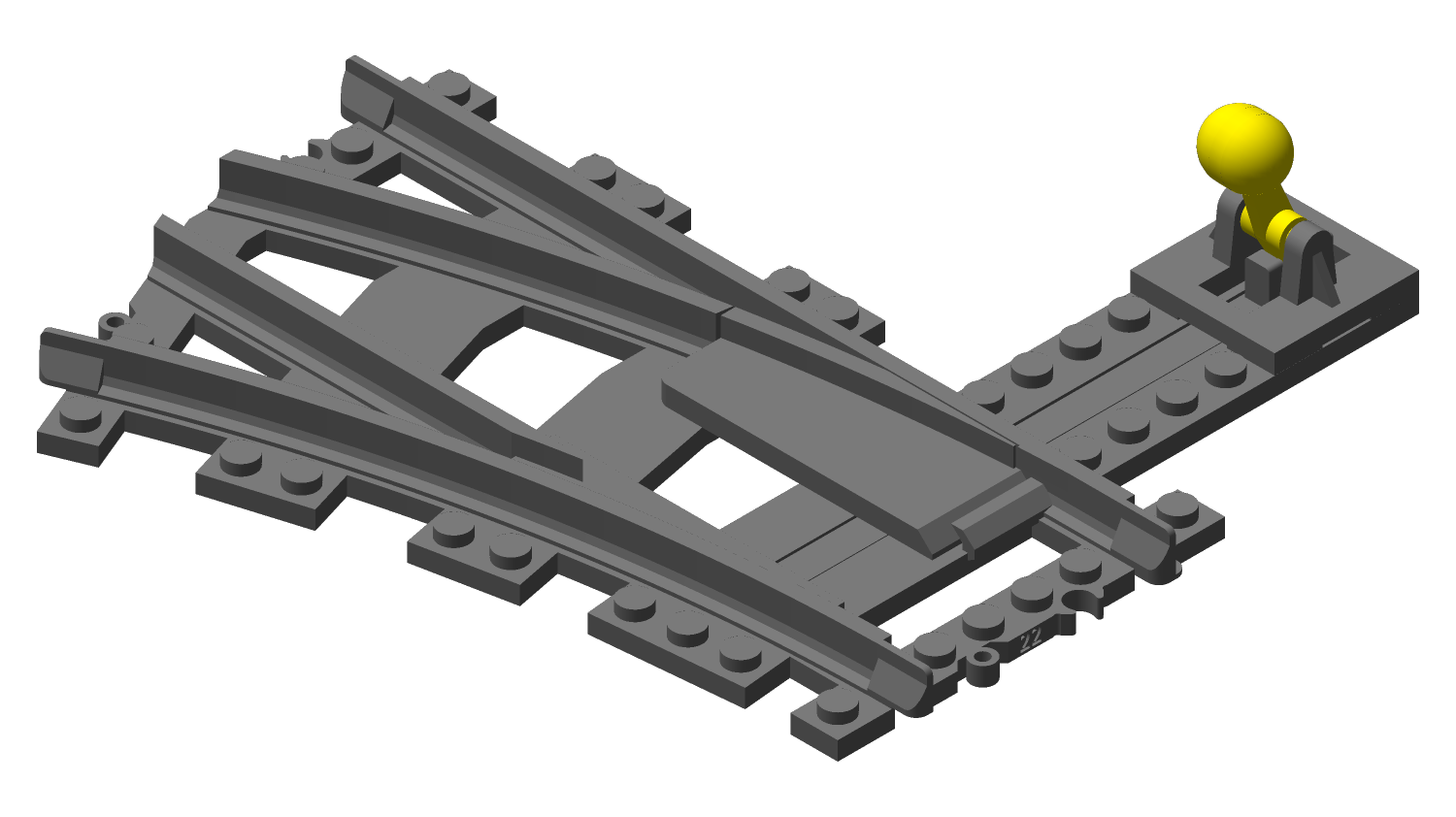

 Track 2.04.022 is a left turn switch track with the ground throw on the outside.
  • Length: 16 studs
  • Radius: 40 studs
  • Turn: 22.5°
3D Models
Standard Model
Part: 2.04.022
Revision: v16
Release: 31-AUG-20
File: 2-04-022-std_v16.stl (1,268.6KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v15: 09-JUL-20 - Initial upload.
  • v16: 31-Aug-20 - Remove internal/duplicate faces that gave issues in Cura.
Surface Optimized Model
Part: 2.04.022
Revision: v16
Release: 31-AUG-20
File: 2-04-022-sur_v16.stl (1,383.1KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v15: 09-JUL-20 - Initial upload.
  • v16: 31-Aug-20 - Remove internal/duplicate faces that gave issues in Cura.
Switch Slider
Part: 2.05.012
Revision: v02
Release: 17-SEP-20
File: 2-05-012_v02.stl (33.0KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 245°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v01: 09-JUL-20 - Initial upload.
  • v02: 17-SEP-20 - Remove internal faces / duplicate faces.
Switch Pivot - Standard Model
Part: 2.05.013
Revision: v02
Release: 17-SEP-20
File: 2-05-013-std_v02.stl (34.0KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v01: 10-JUL-20 - Initial upload.
  • v16: 17-SEP-20 - Remove internal faces / duplicate faces.
Switch Pivot - Surface Optimized
Part: 2.05.013
Revision: v02
Release: 17-SEP-20
File: 2-05-013-sur_v02.stl (50.2KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v01: 10-JUL-20 - Initial upload.
  • v16: 17-SEP-20 - Remove internal faces / duplicate faces.
Ground Throw Bracket
Part: 2.05.003
Revision: v03
Release: 17-SEP-20
File: 2-05-003_v03.stl (89.3KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 245°C
  • Layer Thickness: 0.19mm
  • Nozzle Diameter: 0.4mm
  • Support: None
  • Infill: 30%

Model History
  • v02: 27-APR-20 - Initial upload.
  • v03: 17-SEP-20 - Remove internal faces / duplicate faces.
Switch Lever
Part: 2.05.004
Revision: v02
Release: 17-SEP-20
File: 2-05-004_v02.stl (153.3KB)
Suggested Print Settings
  • Platform: 80°C
  • Extruder: 235°C
  • Layer Thickness: 0.14mm
  • Nozzle Diameter: 0.4mm
  • Support: 20° angle
  • Infill: 30%

Model History
  • v28: 27-APR-20 - Initial upload.
  • v16: 17-SEP-20 - Remove internal faces / duplicate faces.
