2.04.019 - Switch Track

Introduction

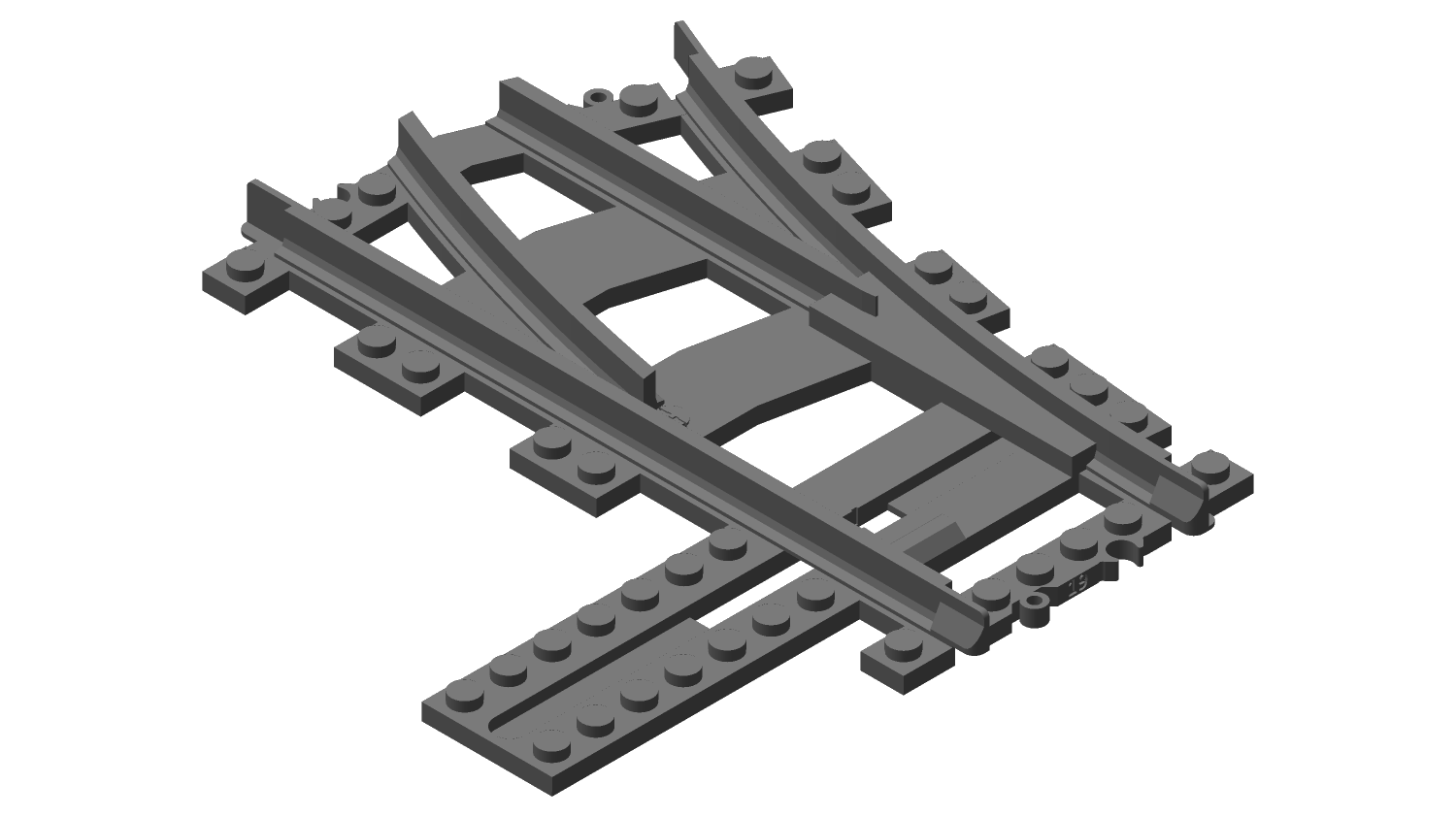

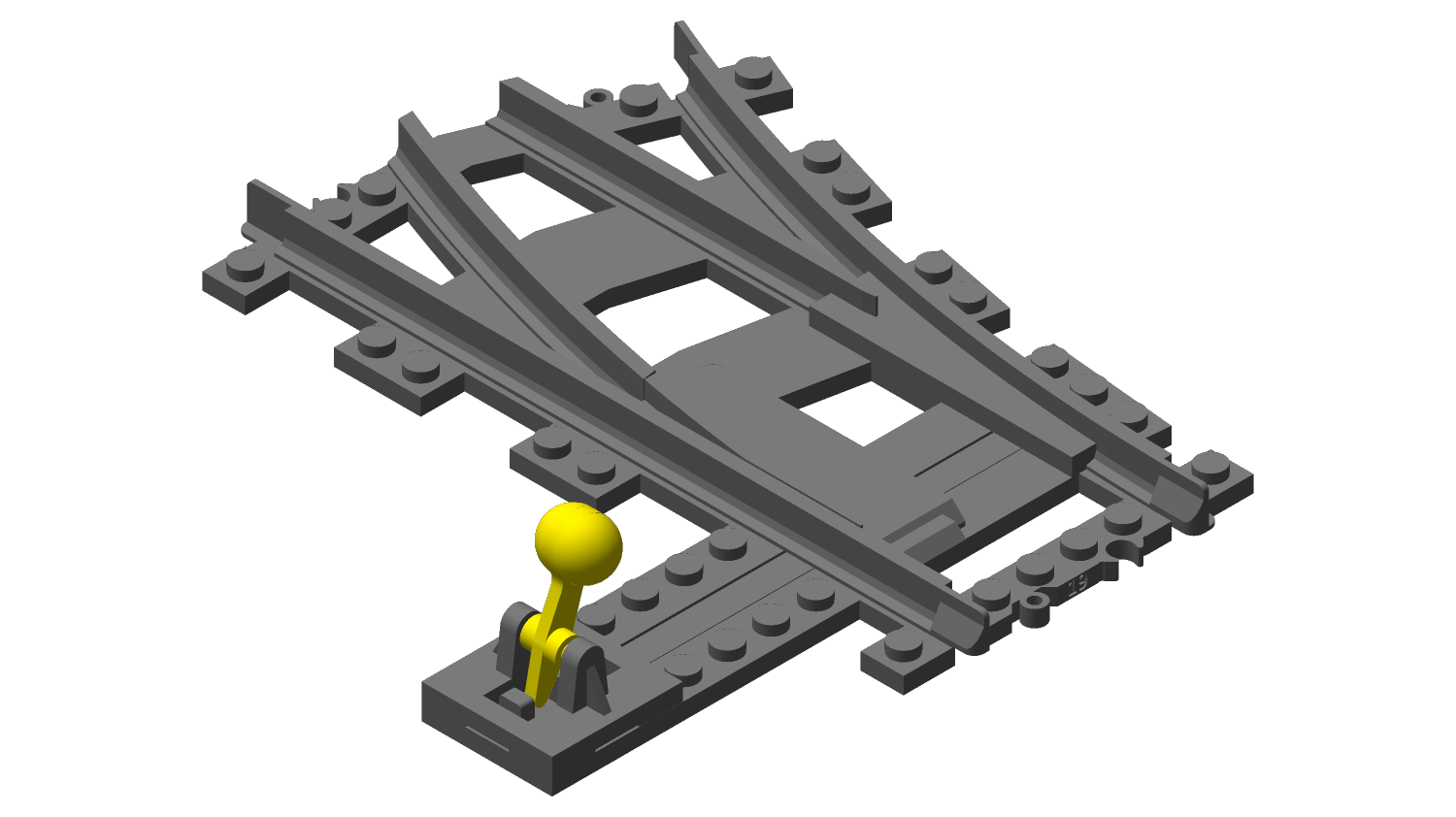

Track 2.04.019 is a right turn switch track with the ground throw on the outside.

Length: 16 studs
Radius: 40 studs
Turn: 22.5°

3D Models

Download STL model

Standard Model

Part: 2.04.019
Revision: v30
Release: 14-SEP-20
File: 2-04-019-std_v30.stl (1,247.4KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

v28: 09-JUL-20 - Initial upload.
v29: 27-Aug-20 - Remove internal face that gave issue with a the Eiger slicer.
v30: 14-SEP-20 - Remove internal faces / duplicate faces.

Download STL model

Surface Optimized Model

Part: 2.04.019
Revision: v30
Release: 14-SEP-20
File: 2-04-019-sur_v30.stl (1,360.9KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

v28: 09-JUL-20 - Initial upload.
v29: 27-Aug-20 - Remove internal face that gave issue with the Eiger slicer.
v30: 14-SEP-20 - Remove internal faces / duplicate faces.

Download STL model

Switch Slider

Part: 2.05.012
Revision: v02
Release: 17-SEP-20
File: 2-05-012_v02.stl (33.0KB)
Suggested Print Settings

Platform: 80°C
Extruder: 245°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

v01: 09-JUL-20 - Initial upload.
v02: 17-SEP-20 - Remove internal faces / duplicate faces.

Download STL model

Switch Pivot - Standard Model

Part: 2.05.011
Revision: v01
Release: 27-APR-20
File: 2-05-011-std_v01.stl (34.0KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Download STL model

Switch Pivot - Surface Optimized

Part: 2.05.011
Revision: v01
Release: 27-APR-20
File: 2-05-011-sur_v01.stl (50.2KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Download STL model

Ground Throw Bracket

Part: 2.05.003
Revision: v03
Release: 17-SEP-20
File: 2-05-003_v03.stl (89.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 245°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

v02: 27-APR-20 - Initial upload.
v03: 17-SEP-20 - Remove internal faces / duplicate faces.

Download STL model

Switch Lever

Part: 2.05.004
Revision: v02
Release: 17-SEP-20
File: 2-05-004_v02.stl (153.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.14mm
Nozzle Diameter: 0.4mm
Support: 20° angle
Infill: 30%

v28: 27-APR-20 - Initial upload.
v16: 17-SEP-20 - Remove internal faces / duplicate faces.
