2.02.003 - Boom Barrier Motors

Introduction

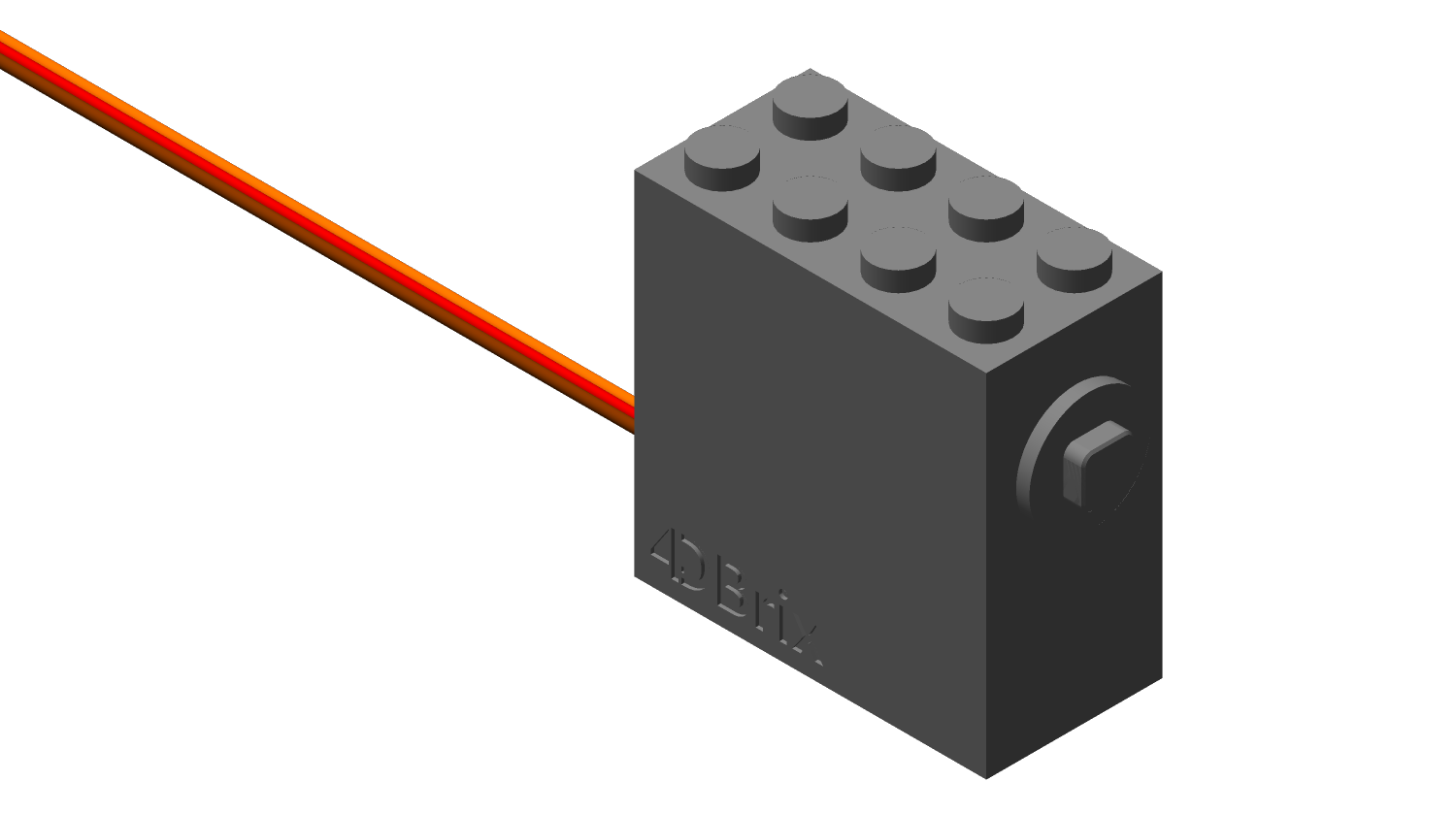

Motor 2.02.003 is designed to create automated boom barriers.

Manuals

BETA Version

This manual is work-in-progress

3D Models

BETA Version

These models are currently being tested by some of our users to make user they work fine on printers other then our own.

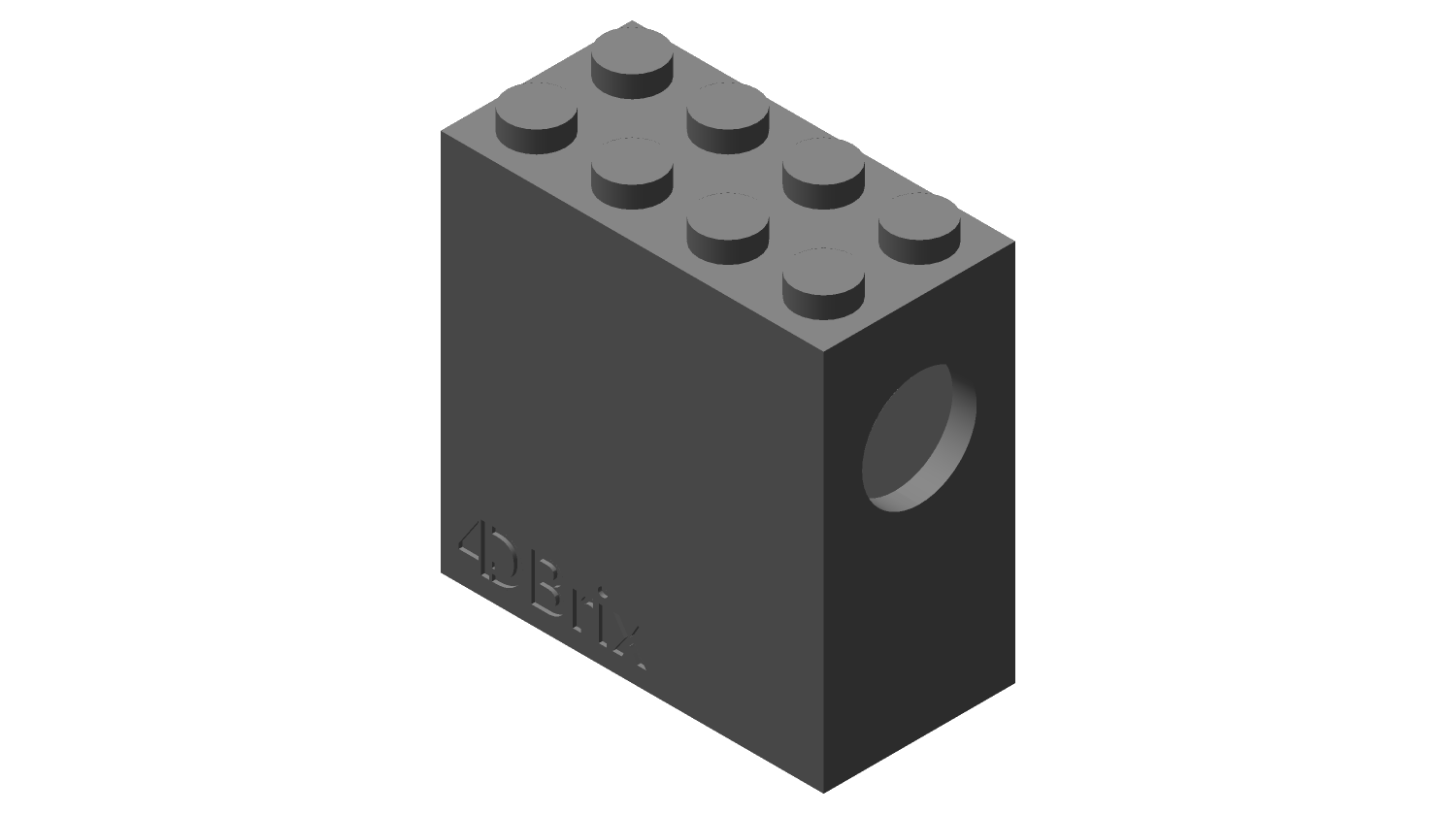

Boom Barrier Motor - Base

Part: 2.02.003-1
Revision: v27
Release: 28-FEB-20
File: 2-02-003-1_v27.stl (225.8KB)
Suggested Print Settings

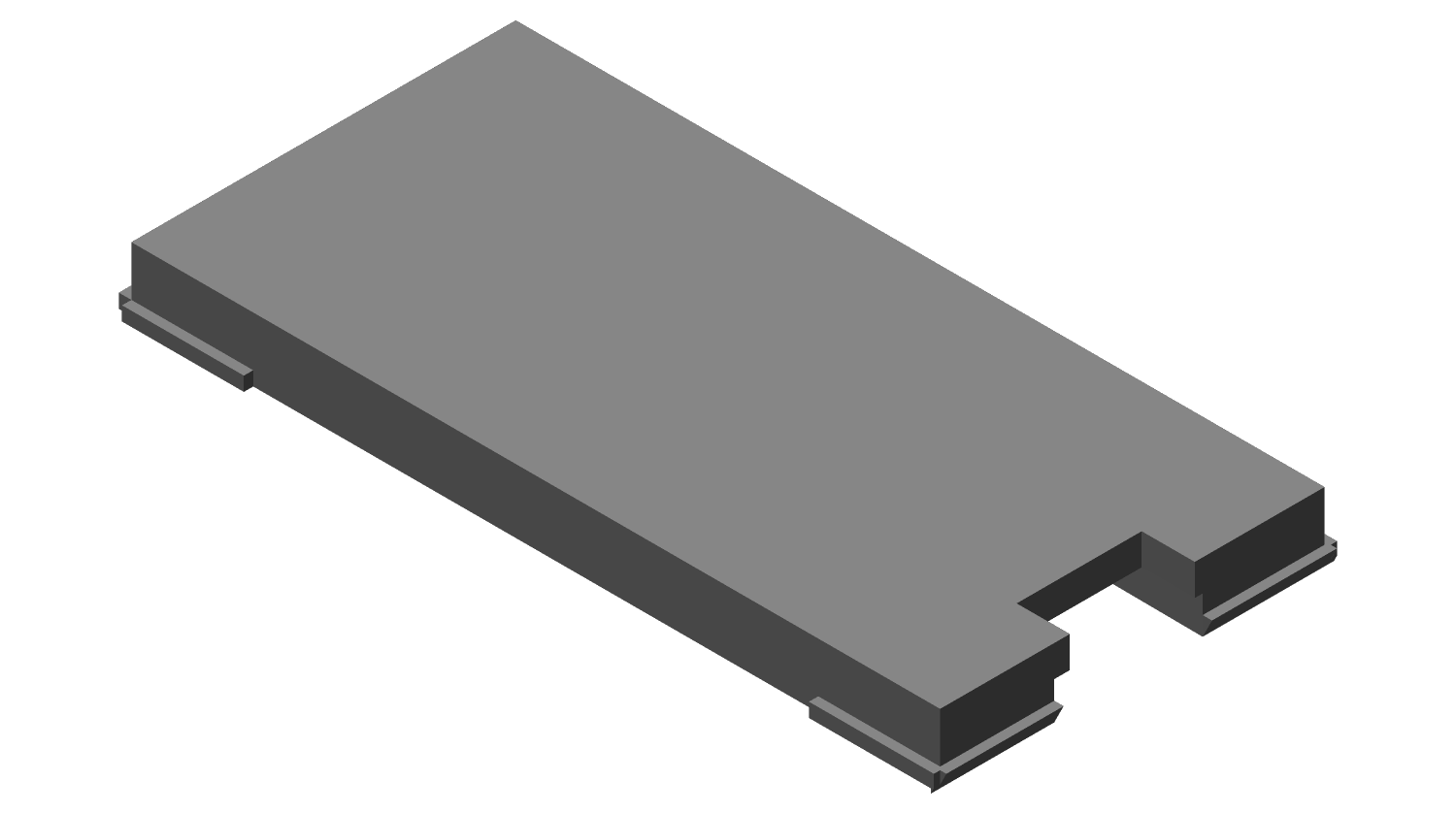

Boom Barrier Motor - Back Cover

Part: 2.02.003-2
Revision: v27
Release: 28-FEB-20
File: 2-02-003-2_v27.stl (6.9KB)
Suggested Print Settings

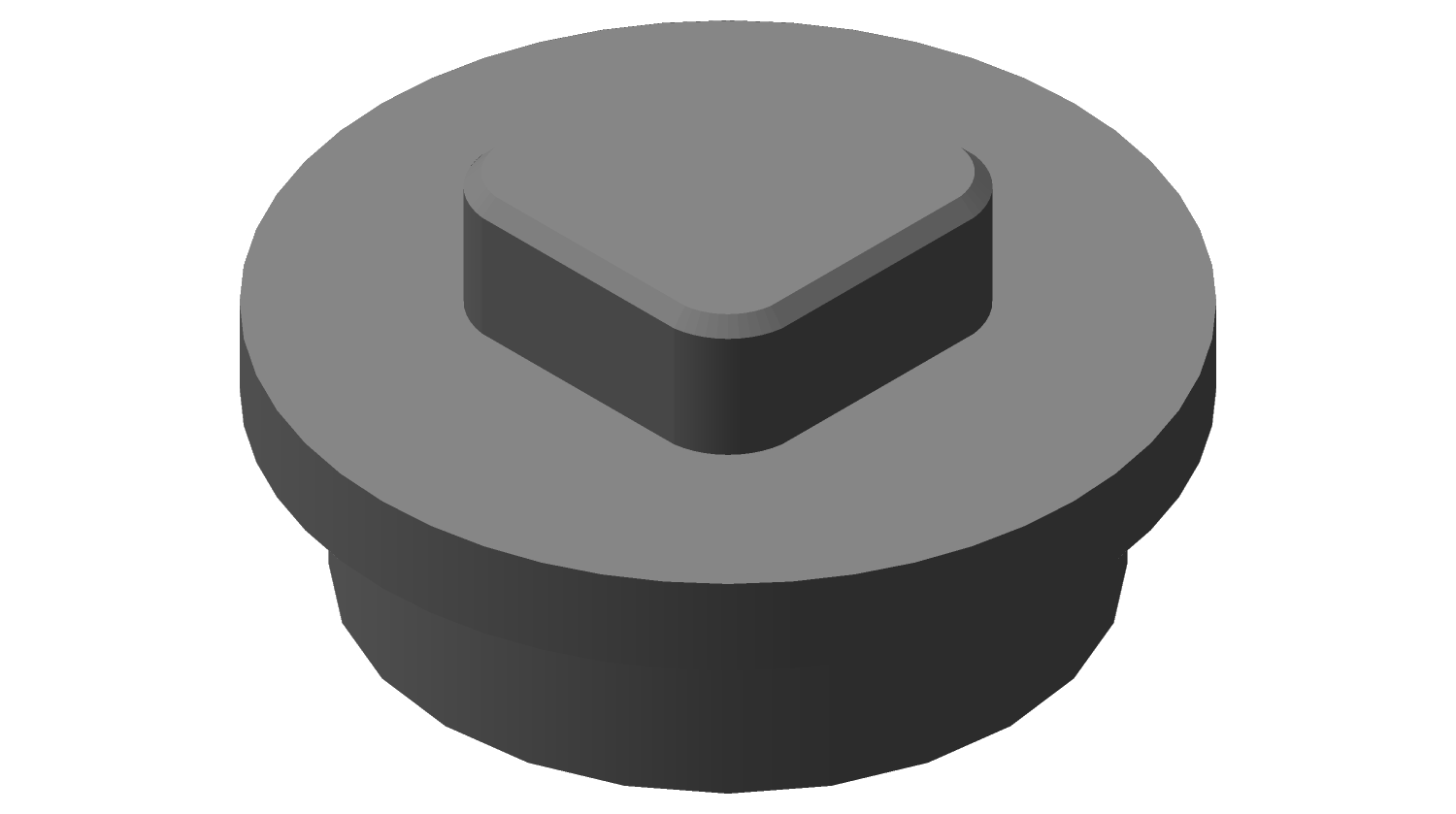

Boom Barrier Motor - Barrier Connector

Part: 2.02.003-3
Revision: v27
Release: 28-FEB-20
File: 2-02-003-3_v27.stl (38.9KB)
Suggested Print Settings

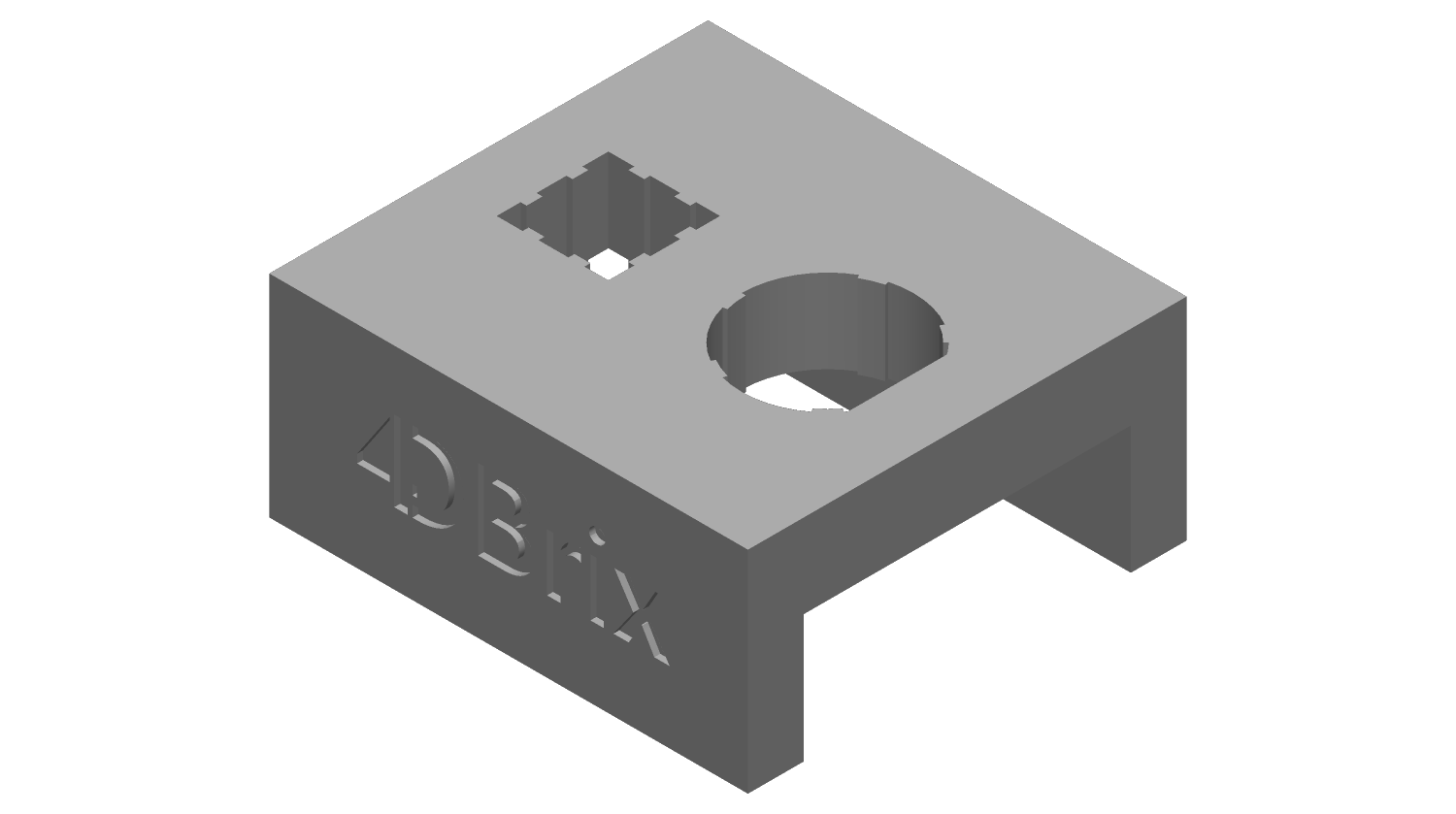

Boom Barrier Connector Positioning Tool

Part: 6.01.003
Revision: v01
Release: 28-FEB-20
File: 6-01-003_v01.stl (126.6KB)
Suggested Print Settings

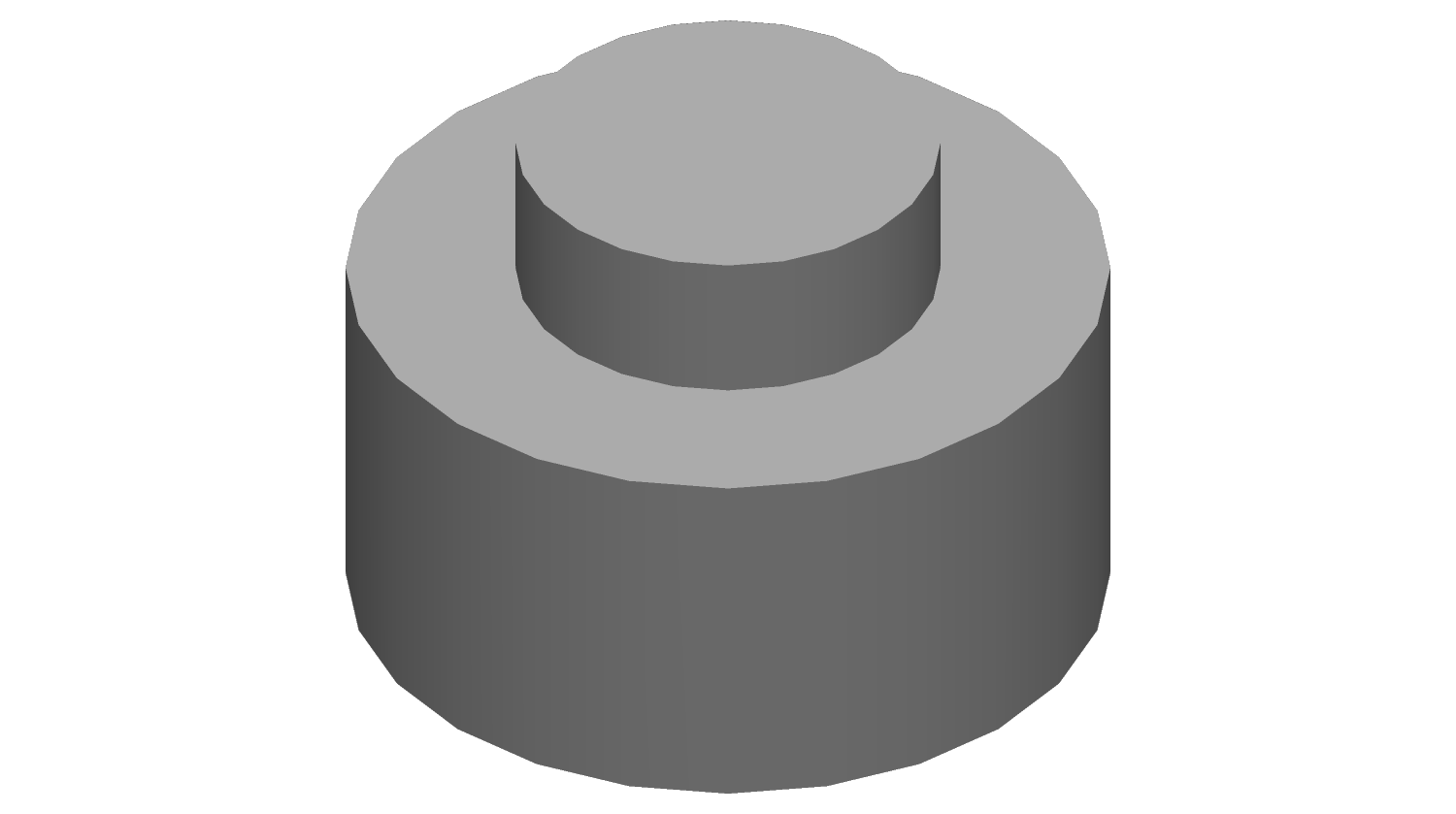

Boom Barrier Motor Positioning Tool

Part: 6.01.004
Revision: v01
Release: 28-FEB-20
File: 6-01-004_v01.stl (20.8KB)
Suggested Print Settings
