2.02.001 - Track Switch Motor - Right

Introduction

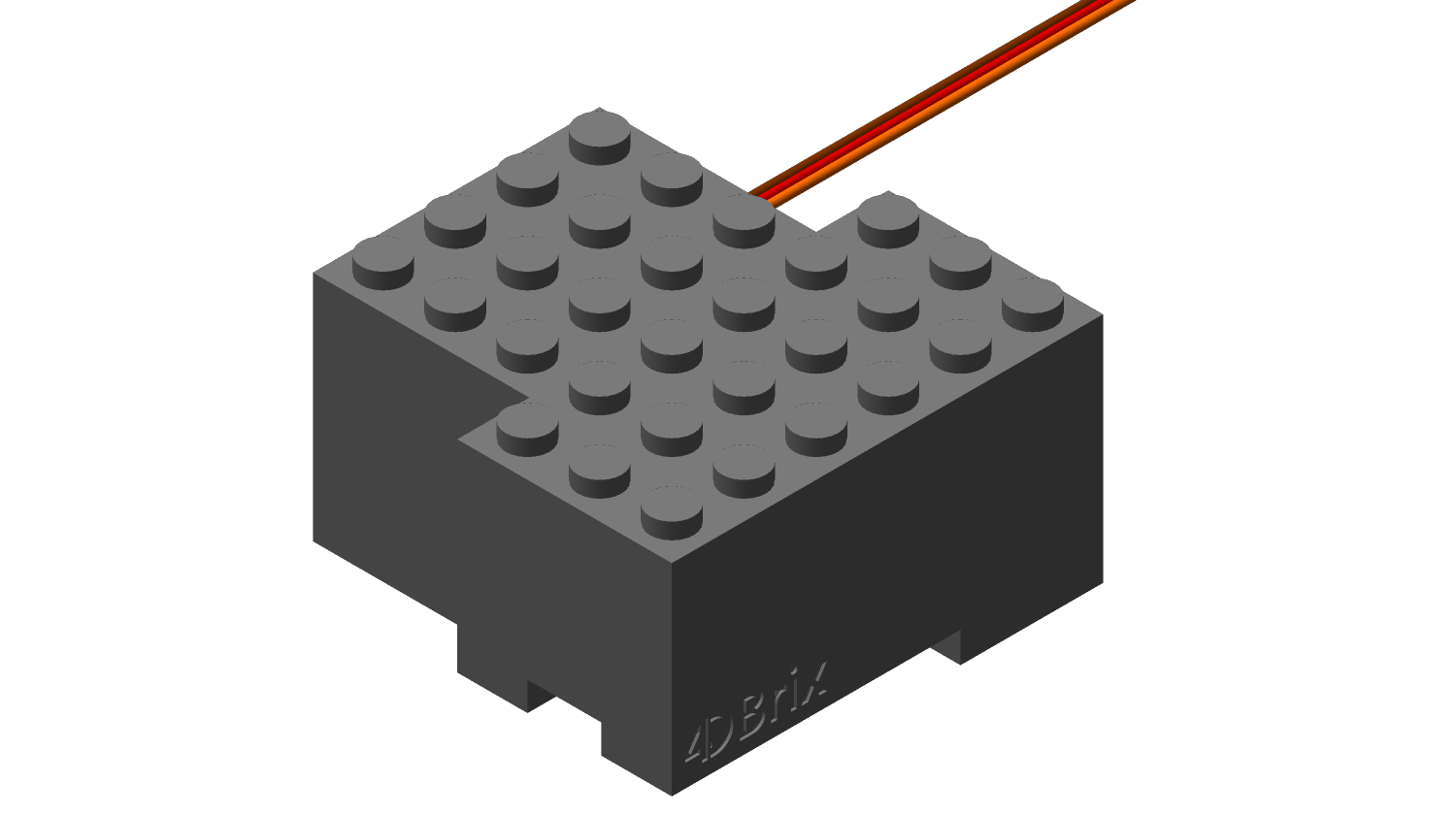

Motor 2.02.001 is designed to actuate a right turn LEGO® switch.

Manuals

3D Models

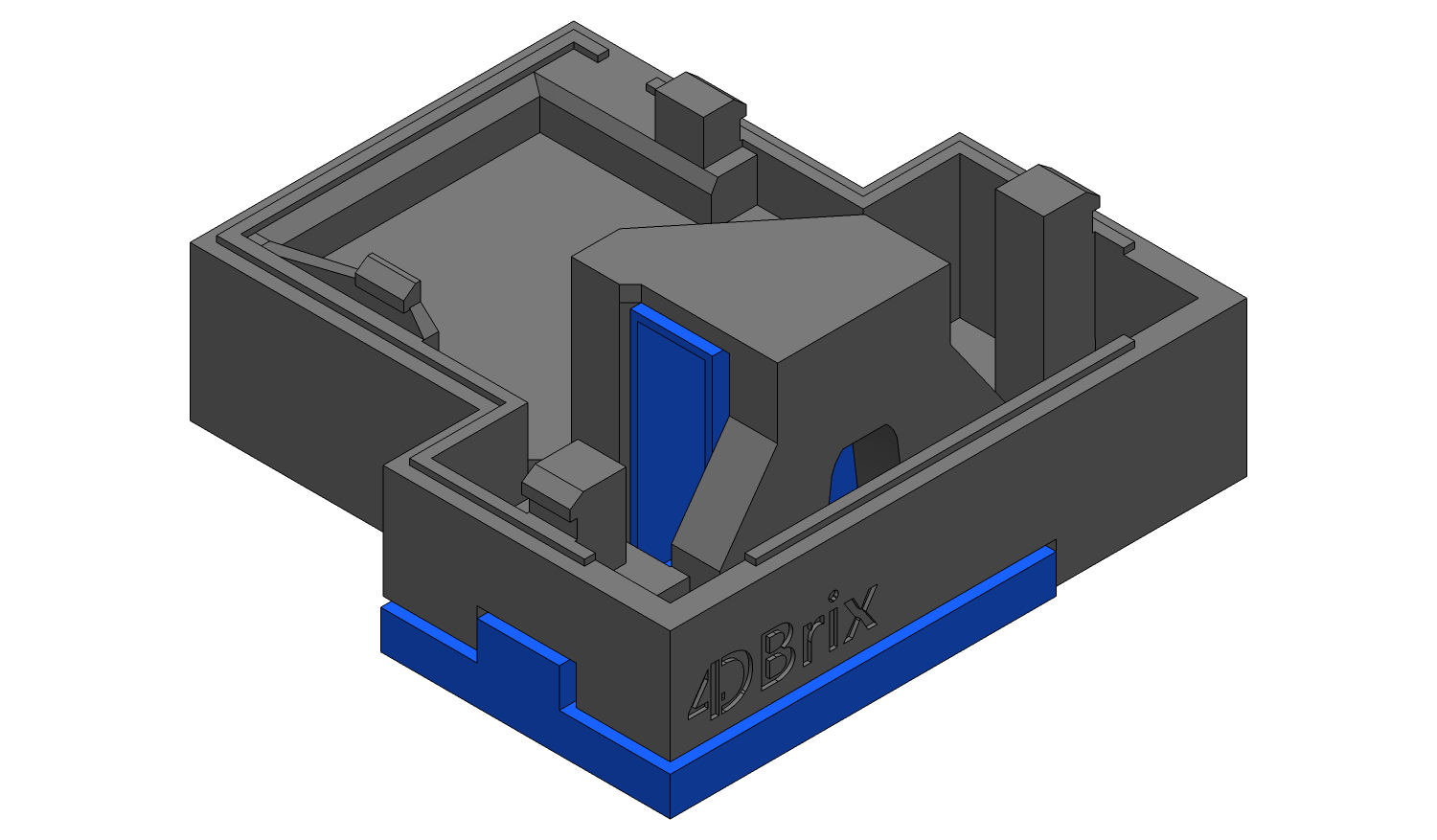

Track Switch Motor - Right - Base

Motor base with integrated supports

Part: 2.02.001-1
Revision: v22
Release: 28-FEB-21
File: 2-02-001-1_v22.stl (180.7KB)
Model History

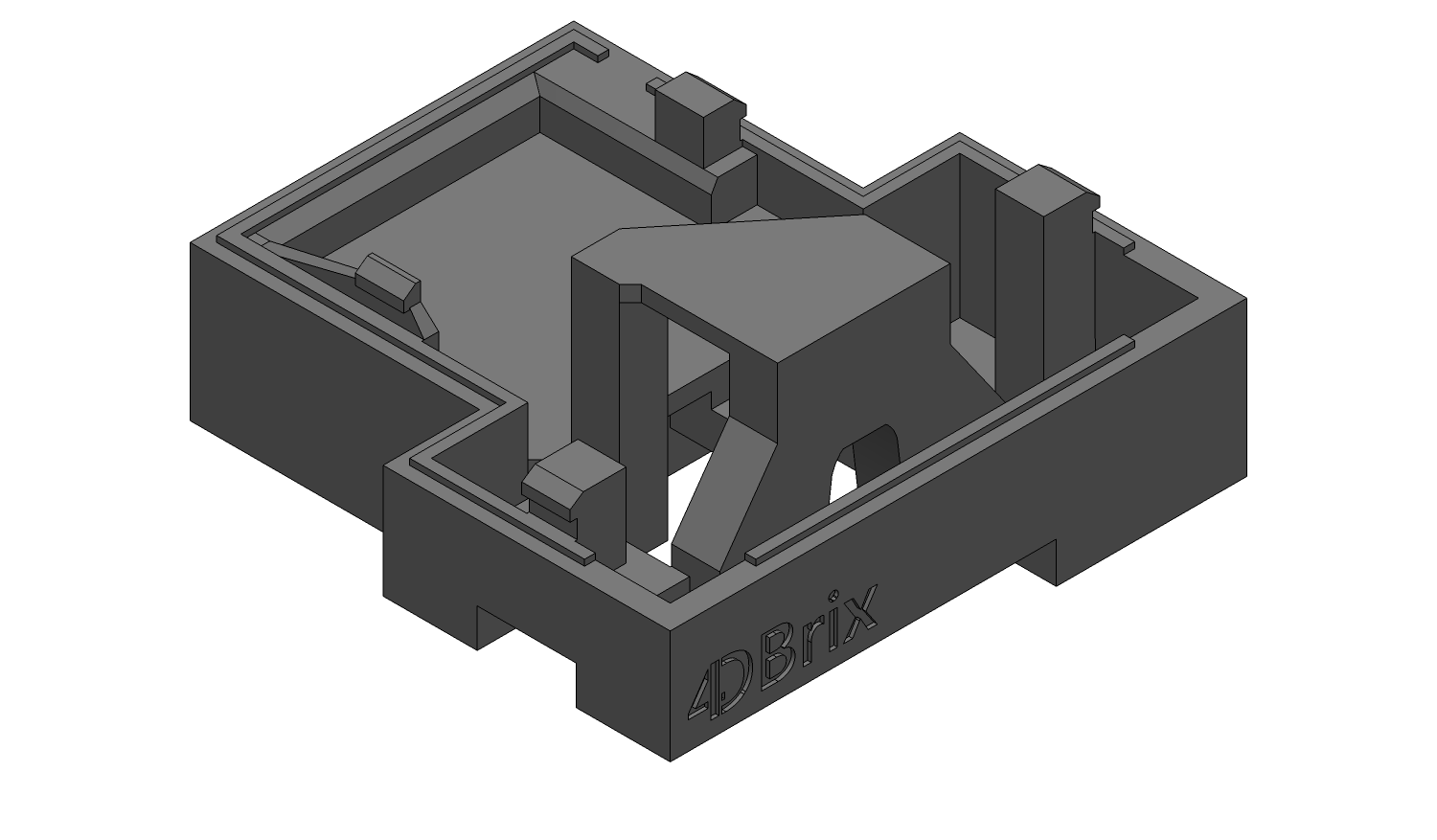

Track Switch Motor - Right - Base

Motor base without supports

Part: 2.02.001-1
Revision: v22
Release: 28-FEB-21
File: 2-02-001-1-nsp_v22.stl (164.7KB)
Model History

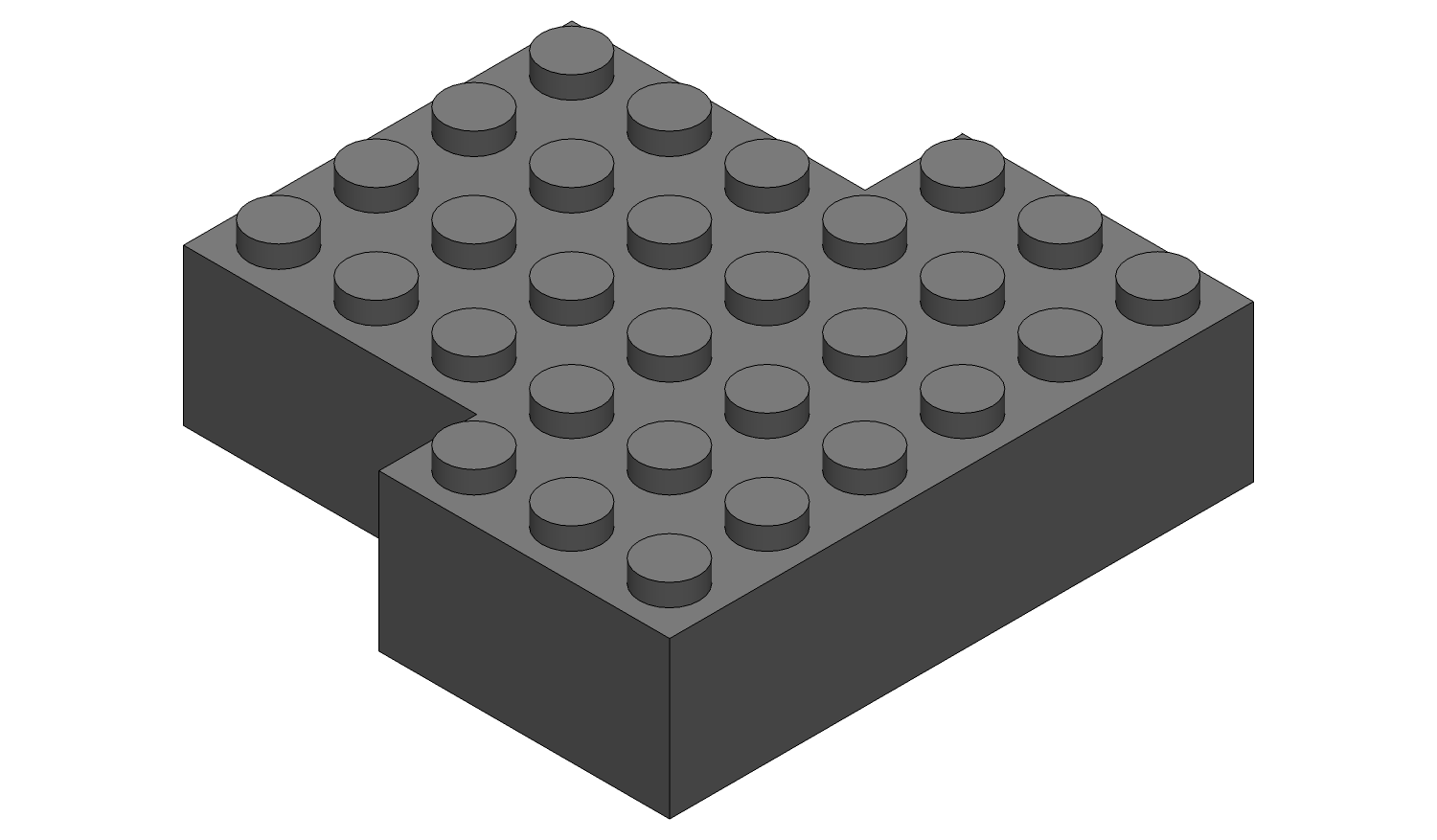

Track Switch Motor - Right - Cover

Motor cover with integrated supports

Part: 2.02.001-2
Revision: v22
Release: 28-FEB-21
File: 2-02-001-2_v22.stl (467.0KB)
Model History

Track Switch Motor - Right - Cover

Motor cover without supports

Part: 2.02.001-2
Revision: v22
Release: 28-FEB-21
File: 2-02-001-2-nsp_v22.stl (432.0KB)
Model History

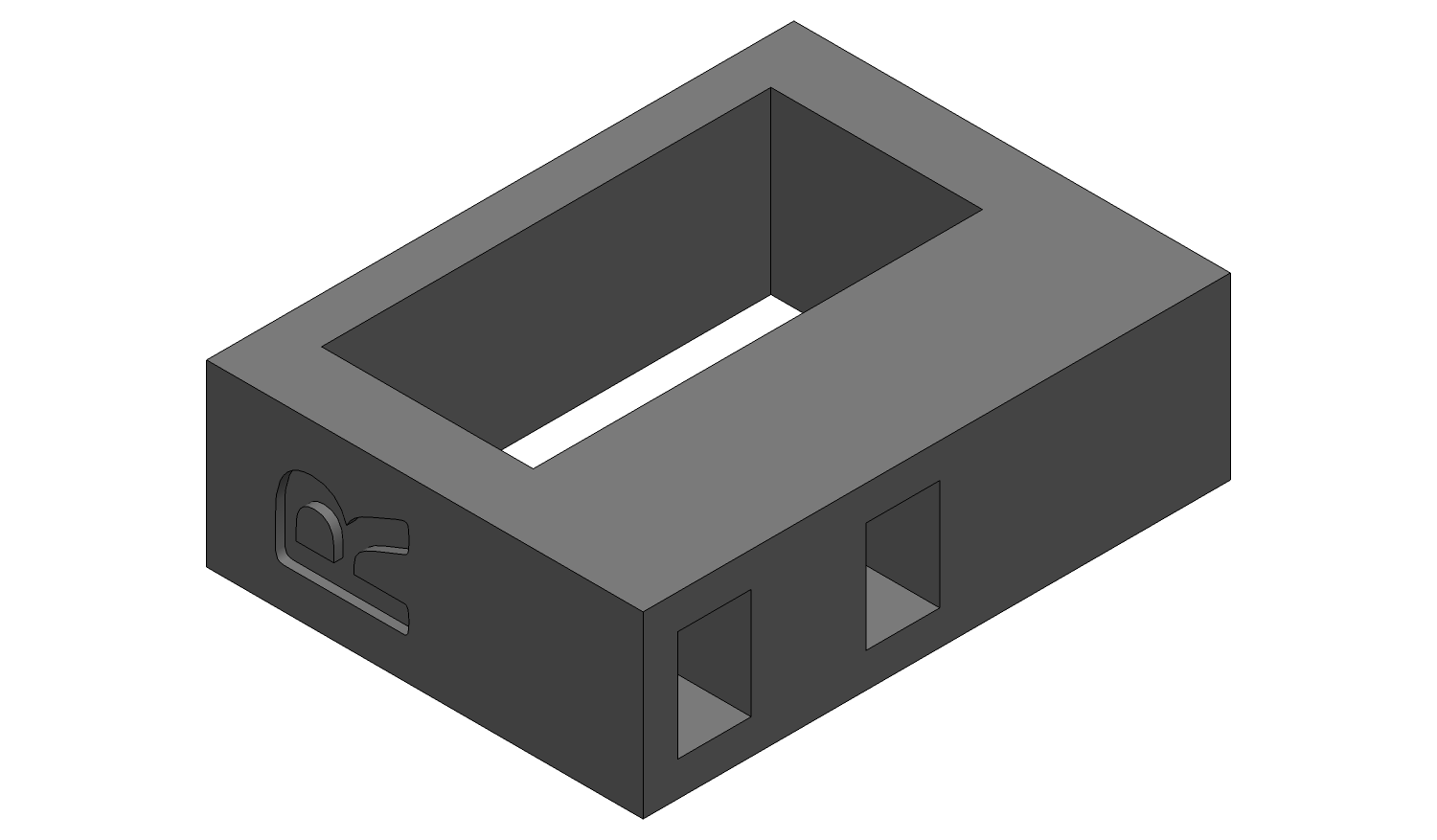

Track Switch Motor - Right - Rack

Motor rack

Part: 2.02.001-3
Revision: v22
Release: 28-FEB-21
File: 2-02-001-3_v22.stl (75.6KB)
Model History

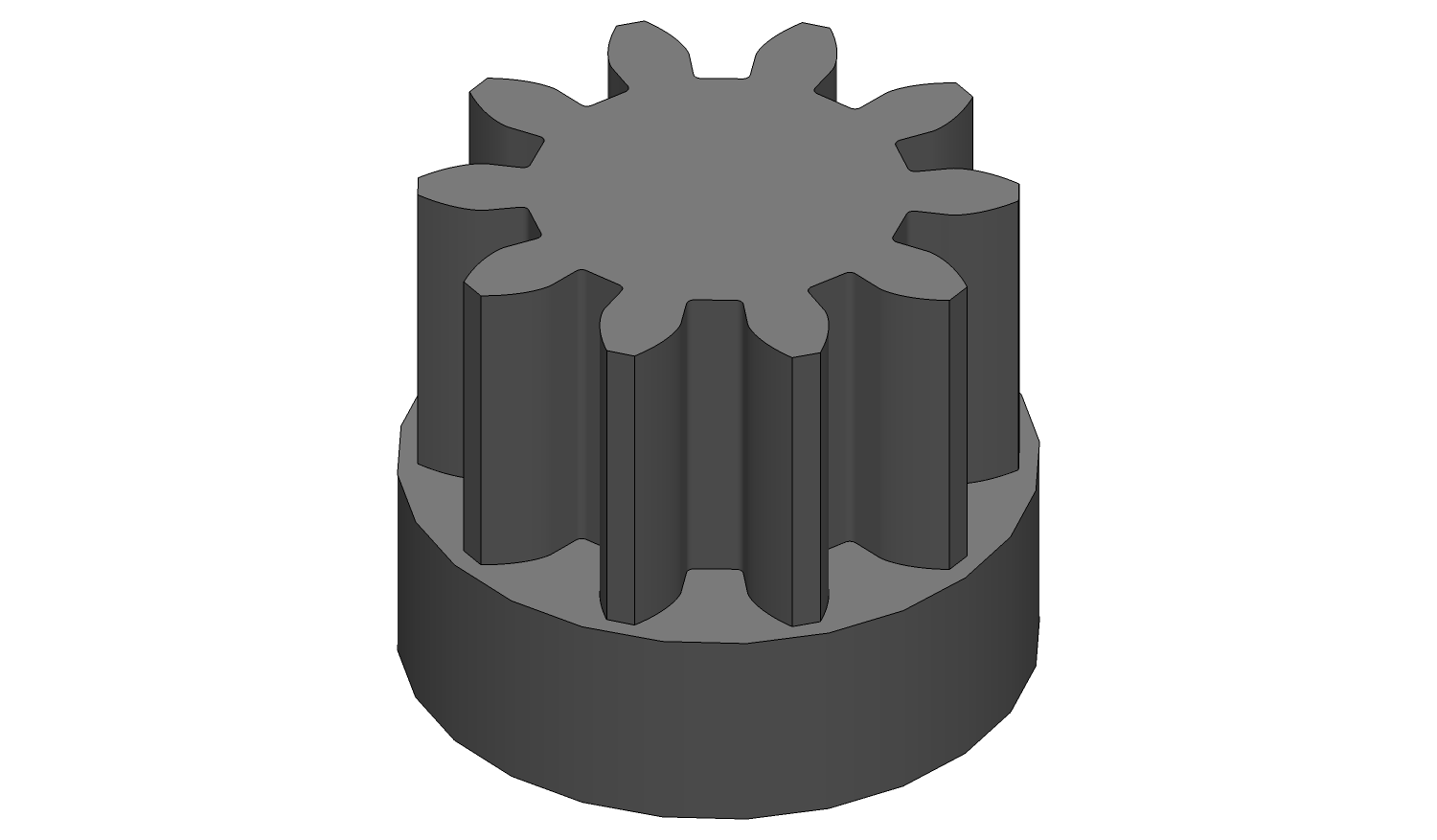

Track Switch Motor - Right - Gear

Motor gear with integrated support

Part: 2.02.001-4
Revision: v22
Release: 28-FEB-21
File: 2-02-001-4_v22.stl (131.5KB)
Model History

Track Switch Motor - Right - Gear

Motor gear without support

Part: 2.02.001-4
Revision: v22
Release: 28-FEB-21
File: 2-02-001-4-nsp_v22.stl (122.2KB)
Model History

Gear Mounting Tool

Tool to mount the gear onto servo

Part: 2.02.001-5
Revision: v22
Release: 28-FEB-21
File: 2-02-001-5_v22.stl (209.3KB)
Model History

Gear Mounting Tool

Tool to remove the servo from the mounting jig

Part: 2.02.001-6
Revision: v22
Release: 28-FEB-21
File: 2-02-001-6_v22.stl (182.9KB)
Model History
