Home > Products > Trains > Controllers

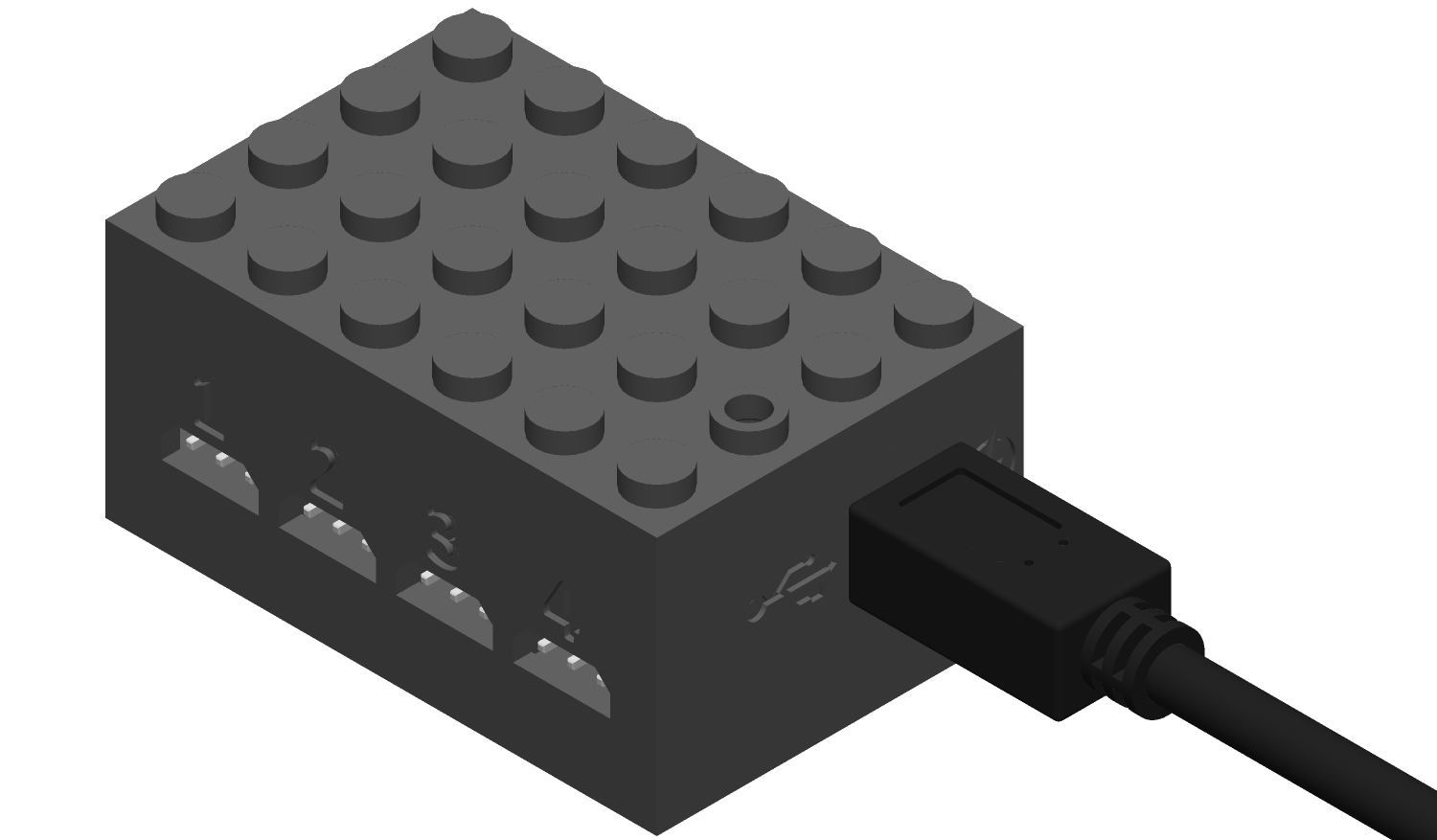

2.01.014 - Quad Universal Controller

Introduction

This controller has 4 'universal' ports. It can directly control servo motor based devices such as track switch motors and train detection sensors. It an also control light by adding a mini-controller.

The universal controller can be connected to the computer using an USB cable or windlessly using a WiFi Hub.

It can be used with our nControl™ automation software or using a DIY software application.

Manuals

3D Models

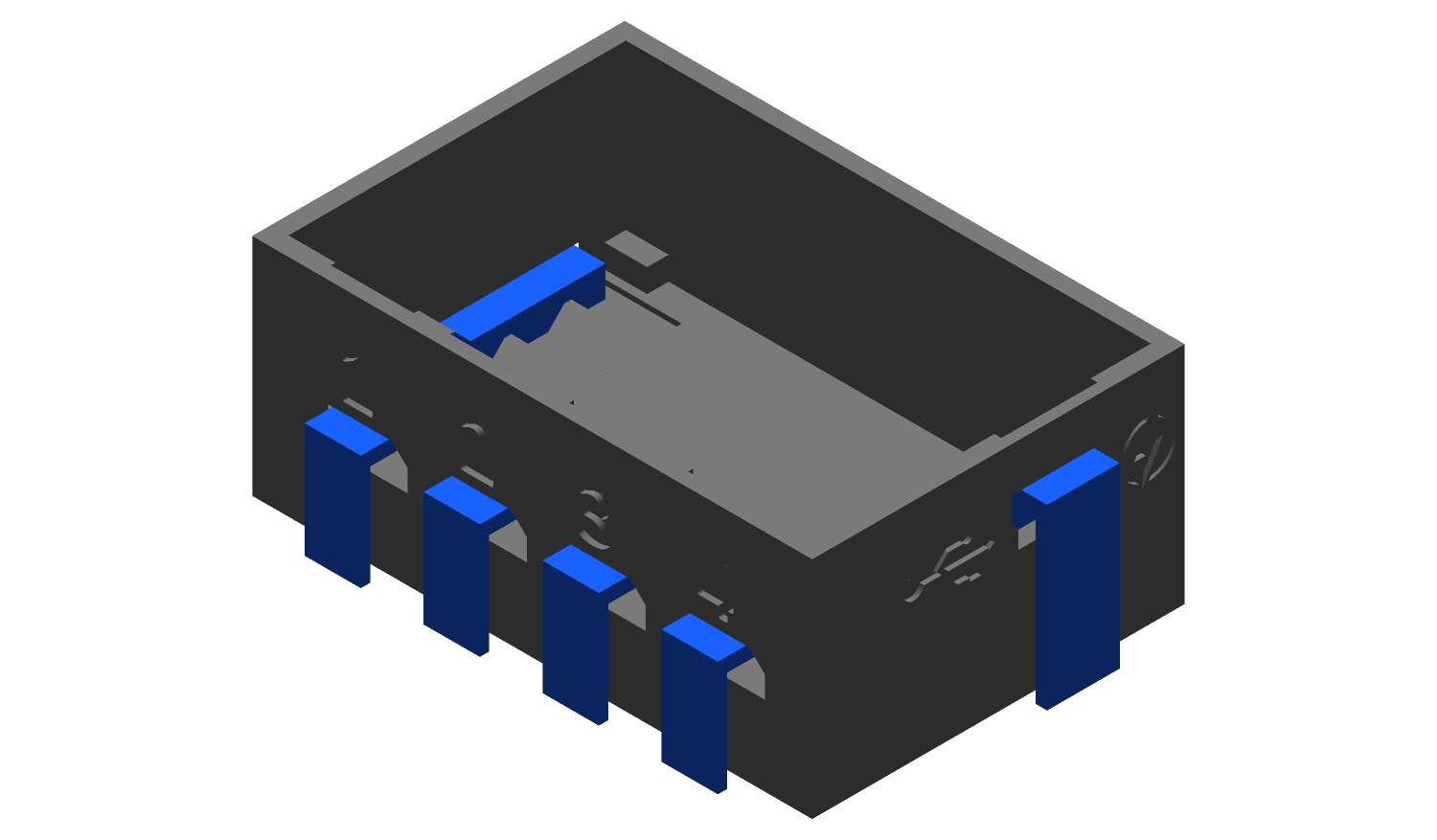

Controller Base

Controller base model with integrated supports.

Part: 2.01.014-1
Revision: v18
Release: 13-JAN-23
File: 2-01-014-1_v18.stl (375.8KB)
Model History

v18: 13-JAN-22 - Initial upload.

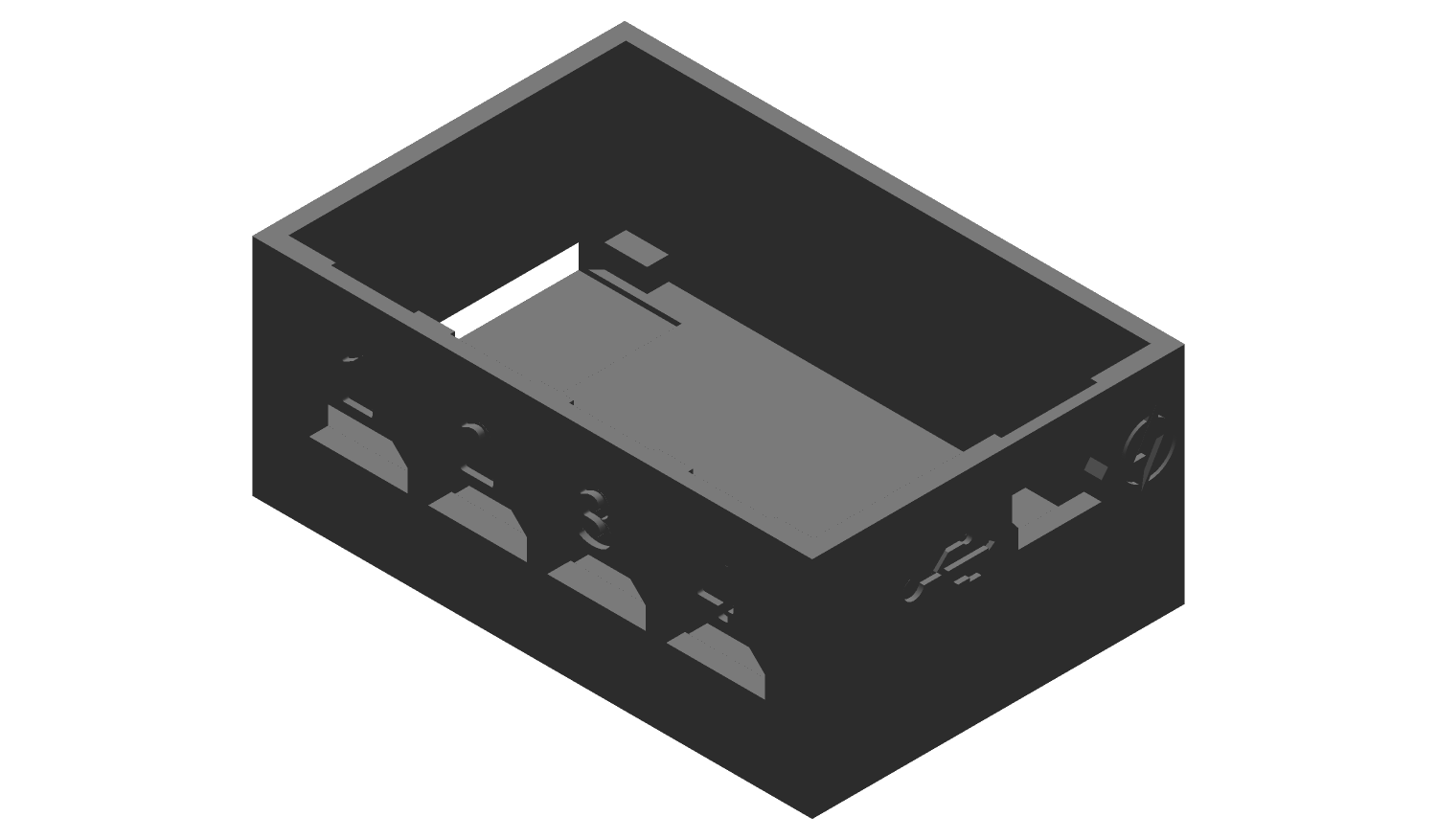

Controller Base - No Support

Controller base model without the integrated supports.

Part: 2.01.014-1
Revision: v18
Release: 13-JAN-23
File: 2-01-014-1-nsp_v18.stl (360.4KB)
Model History

v18: 13-JAN-22 - Initial upload.

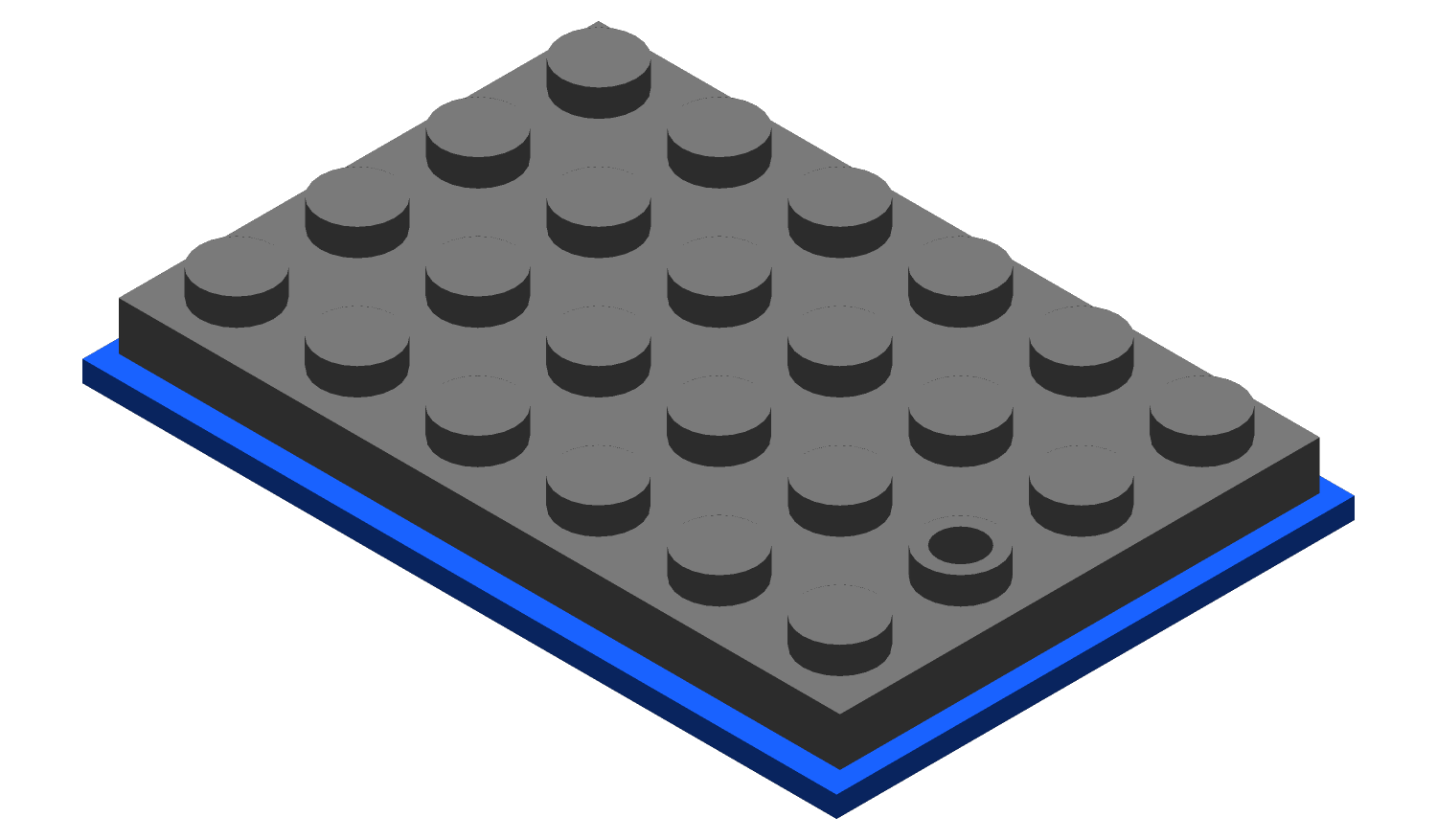

Controller Cover

Controller base model with integrated supports.

Part: 2.01.014-2
Revision: v18
Release: 13-JAN-23
File: 2-01-014-2_v18.stl (3.2KB)
Model History

v18: 13-JAN-22 - Initial upload.

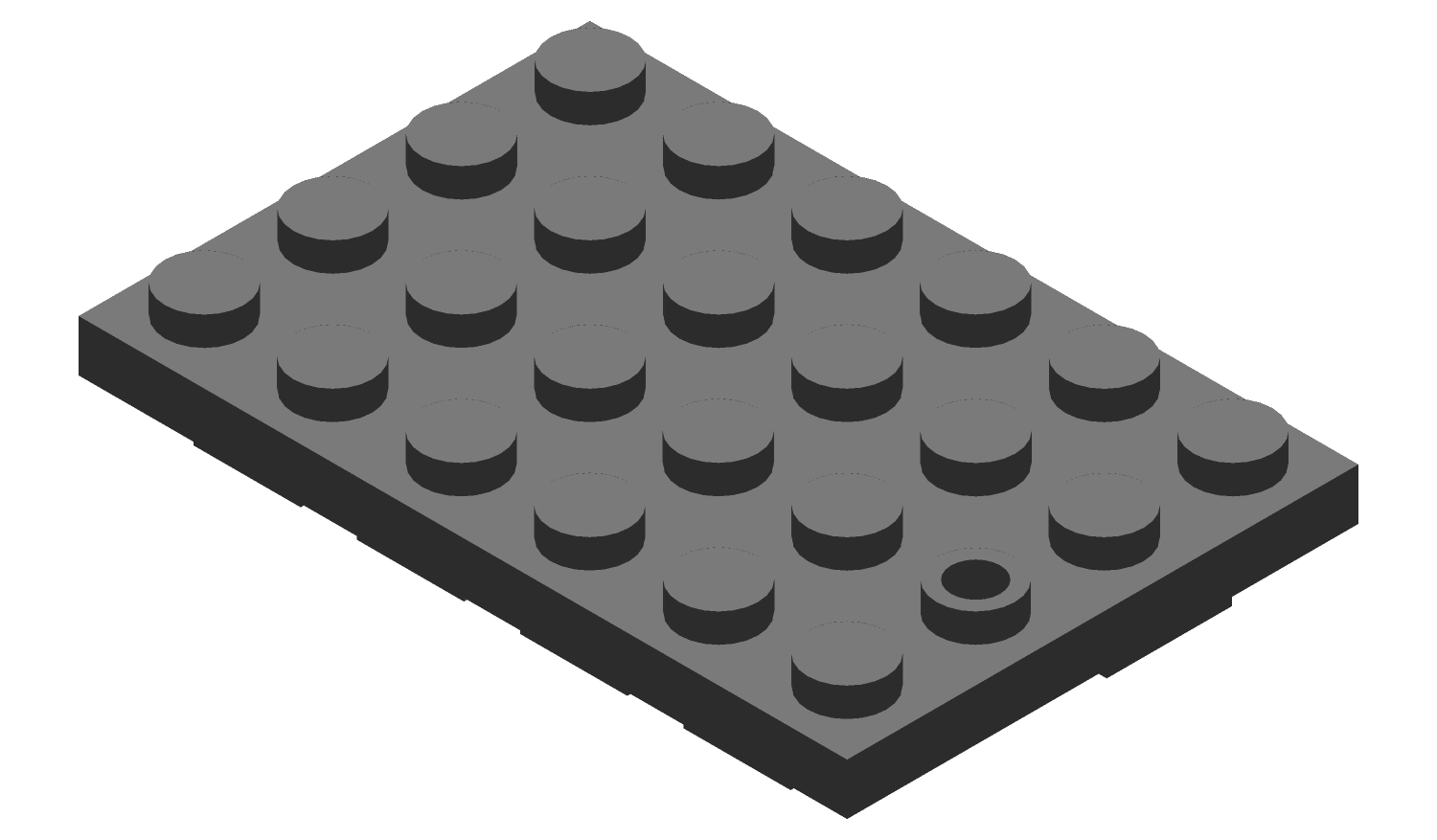

Controller Cover

Controller base model without the integrated supports.

Part: 2.01.014-2
Revision: v18
Release: 13-JAN-23
File: 2-01-014-2-nsp_v18.stl (345.2KB)
Model History

v18: 13-JAN-22 - Initial upload.

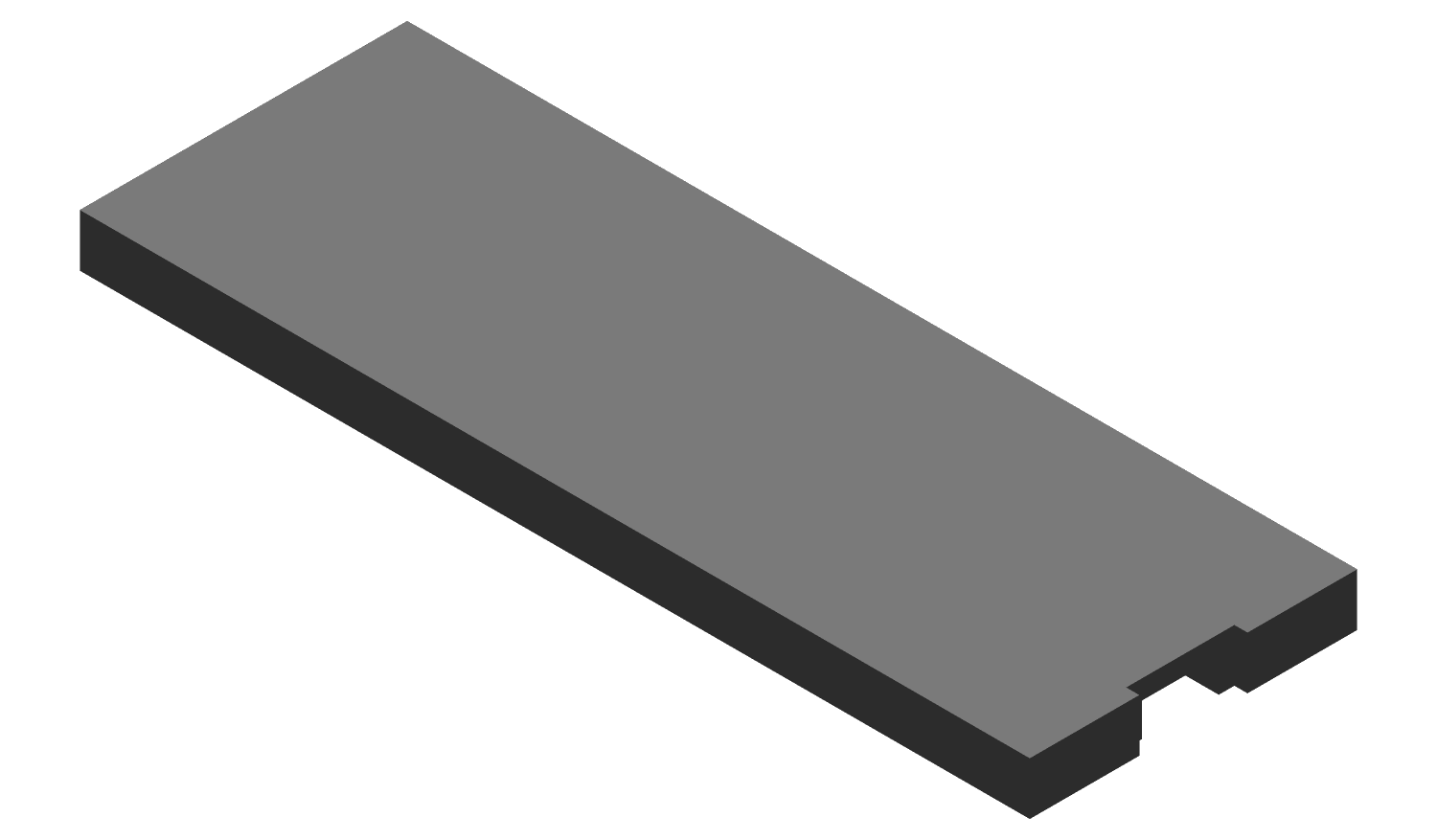

Cover Plate

LED Cover plate (optional)

Part: 2.01.014-3
Revision: v18
Release: 13-JAN-23
File: 2-01-014-3_v18.stl (363.9KB)
Model History

v18: 13-JAN-22 - Initial upload.

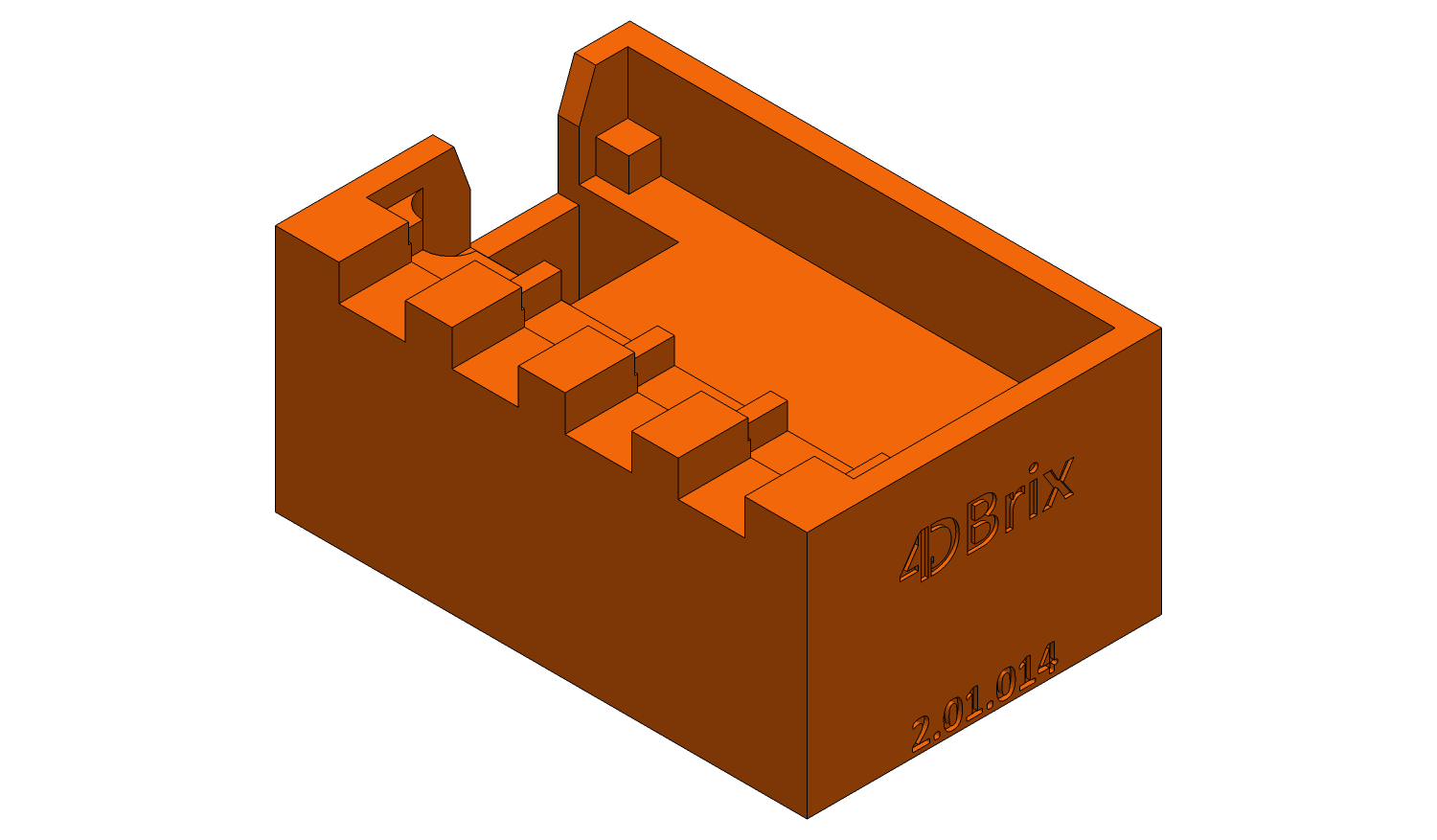

Assembly Jig

Assembly jig for the controller board.

Part: 2.01.014-4
Revision: v18
Release: 13-JAN-23
File: 2-01-014-4_v18.stl (317.7KB)
Model History

v18: 13-JAN-23 - Initial upload.
