Home > Products > Trains > Controllers

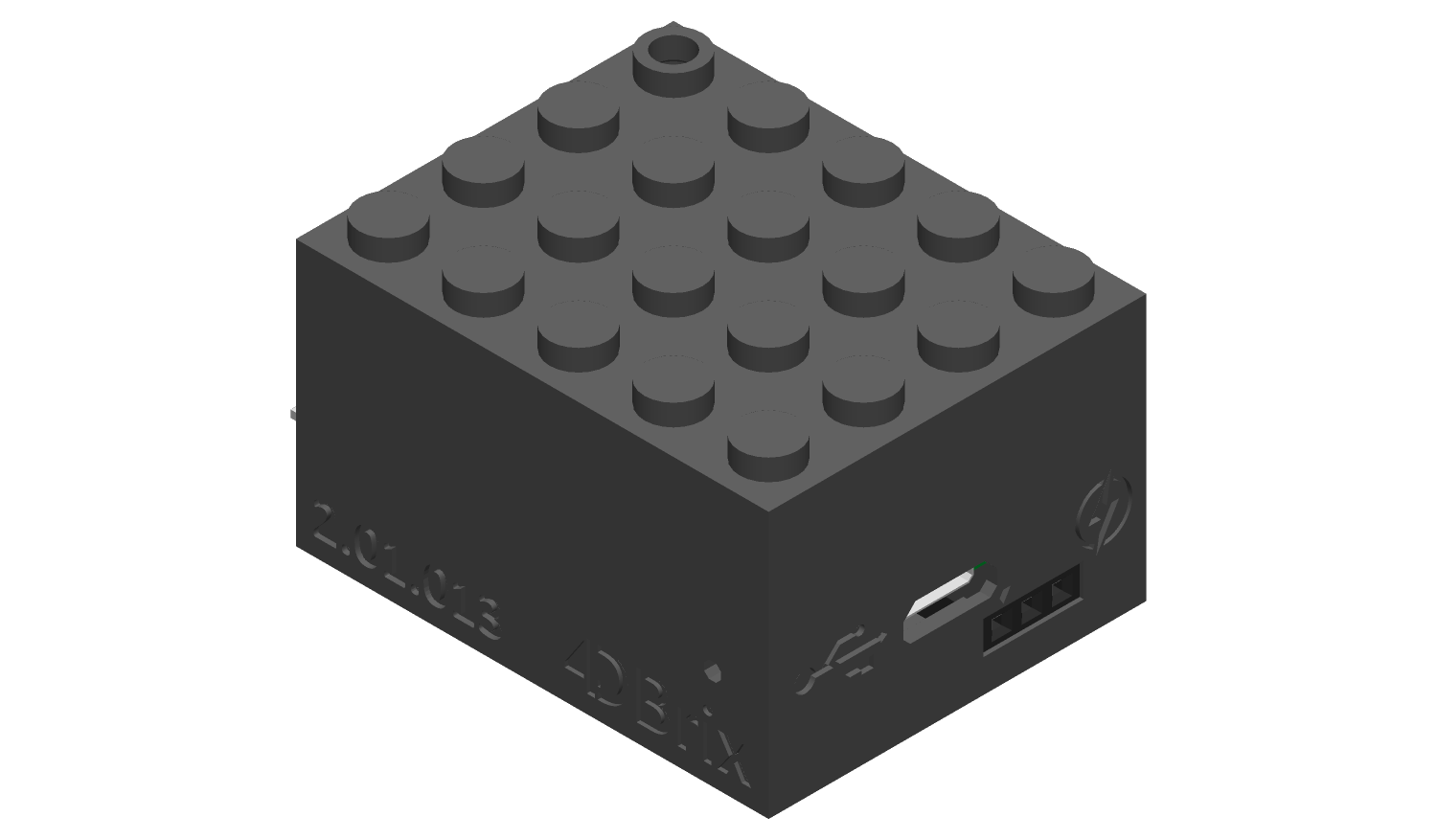

2.01.013 - WiFi Hub

Introduction

The WiFi hub enables to connect wirelessly to a quad universal controller. With the WiFi hub the quad universal controller can connect the nControl™ MQTT broker and you can send and receive data over the WiFi network.

Manuals

3D Models

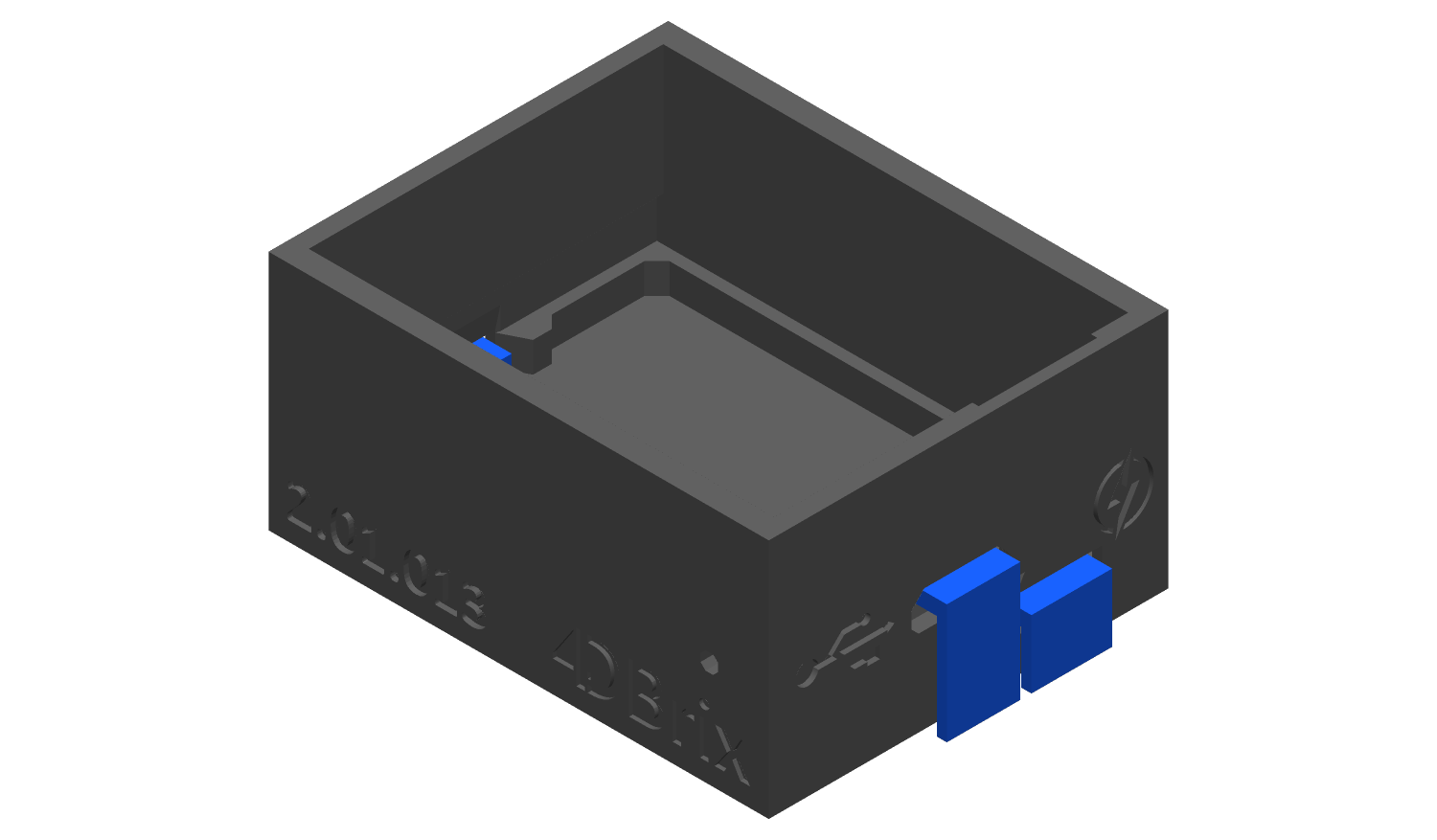

Controller Base

Controller base model with integrated supports.

Part: 2.01.013-1
Revision: v13
Release: 22-JAN-23
File: 2-01-013-1_v13.stl (344.6KB)
Model History

v13: 22-Jan-23 - Initial upload.

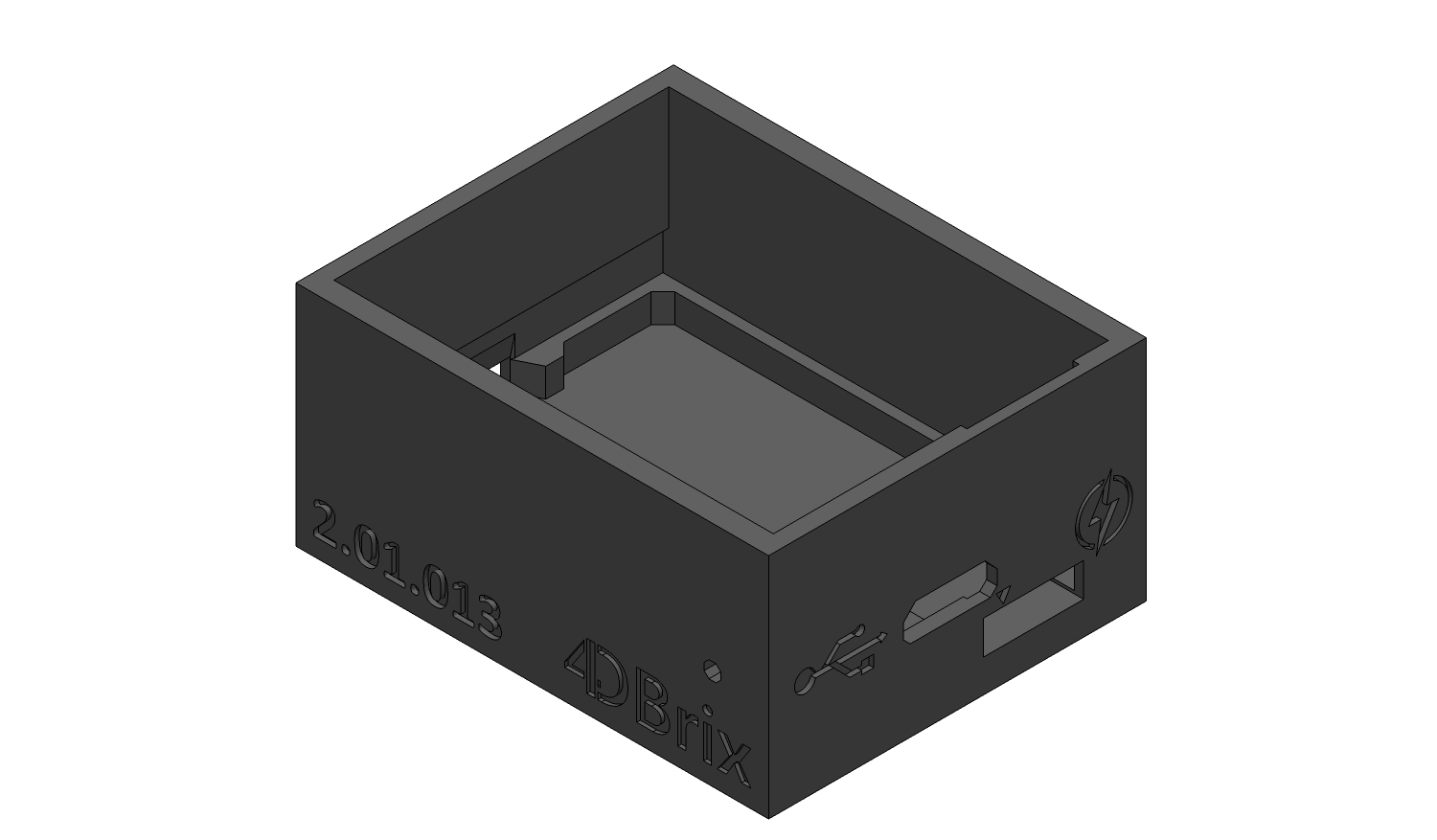

Controller Base

Controller base model without integrated supports.

Part: 2.01.013-1
Revision: v13
Release: 22-JAN-23
File: 2-01-013-1-nsp_v13.stl (337.2KB)
Model History

v13: 22-Jan-23 - Initial upload.

Controller Cover

Controller base model with integrated supports.

Part: 2.01.013-2
Revision: v13
Release: 22-JAN-23
File: 2-01-013-2_v13.stl (291.2KB)
Model History

v13: 22-Jan-23 - Initial upload.

Controller Base

Controller lid model without integrated supports.

Part: 2.01.013-2
Revision: v13
Release: 22-JAN-23
File: 2-01-013-2-nsp_v13.stl (284.8KB)
Model History

v13: 22-Jan-23 - Initial upload.

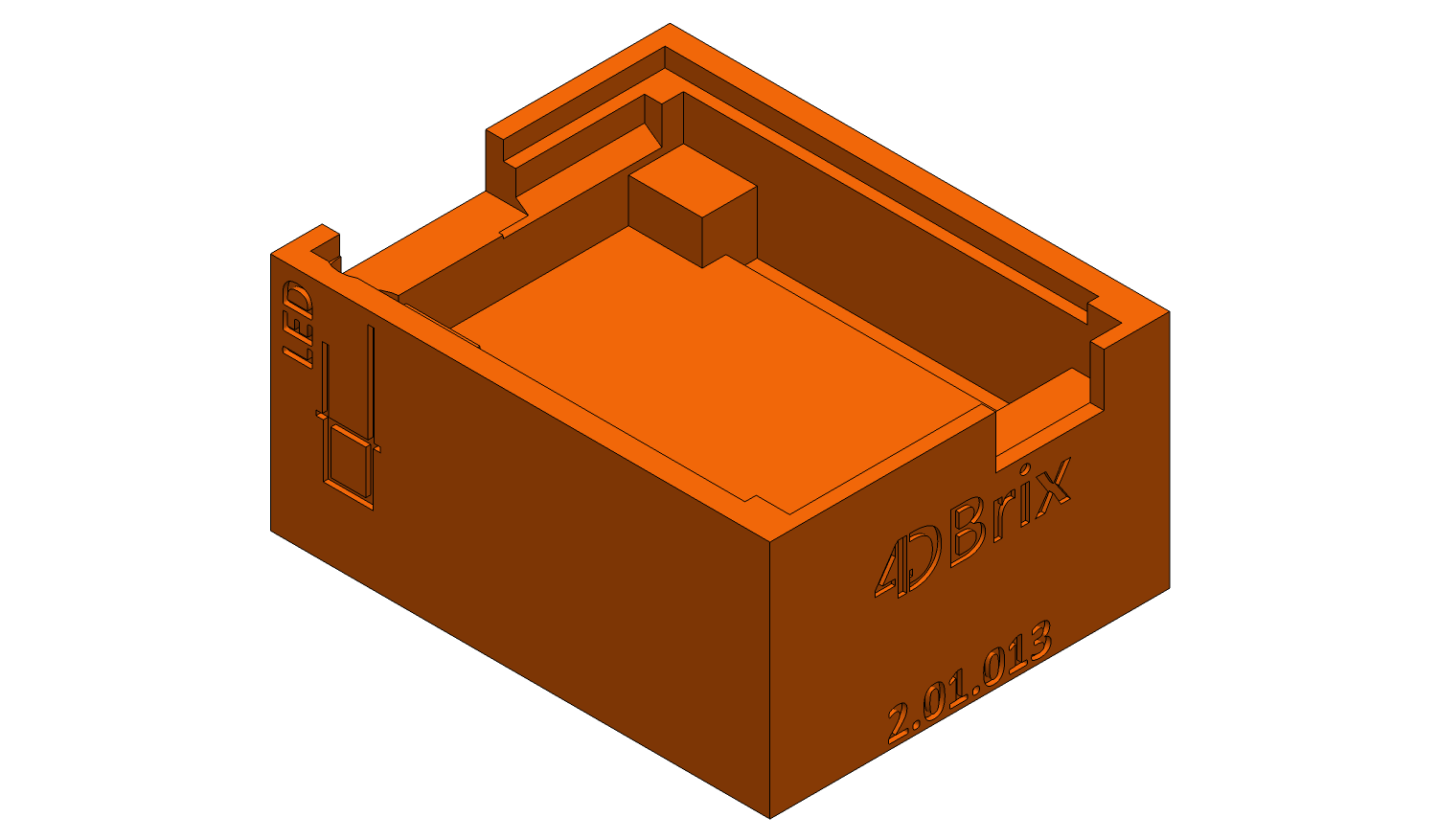

Assembly Jig

Assembly jig for the controller board.

Part: 2.01.013-3
Revision: v13
Release: 22-JAN-23
File: 2-01-013-3_v13.stl (365.4KB)
Model History

v13: 22-JAN-23 - Initial upload.
