2.01.006 - WiFi Controller

Introduction

Retired Product

This WiFi train controller is a retired product.
It has been replaced by WiFi train controller 2.01.008

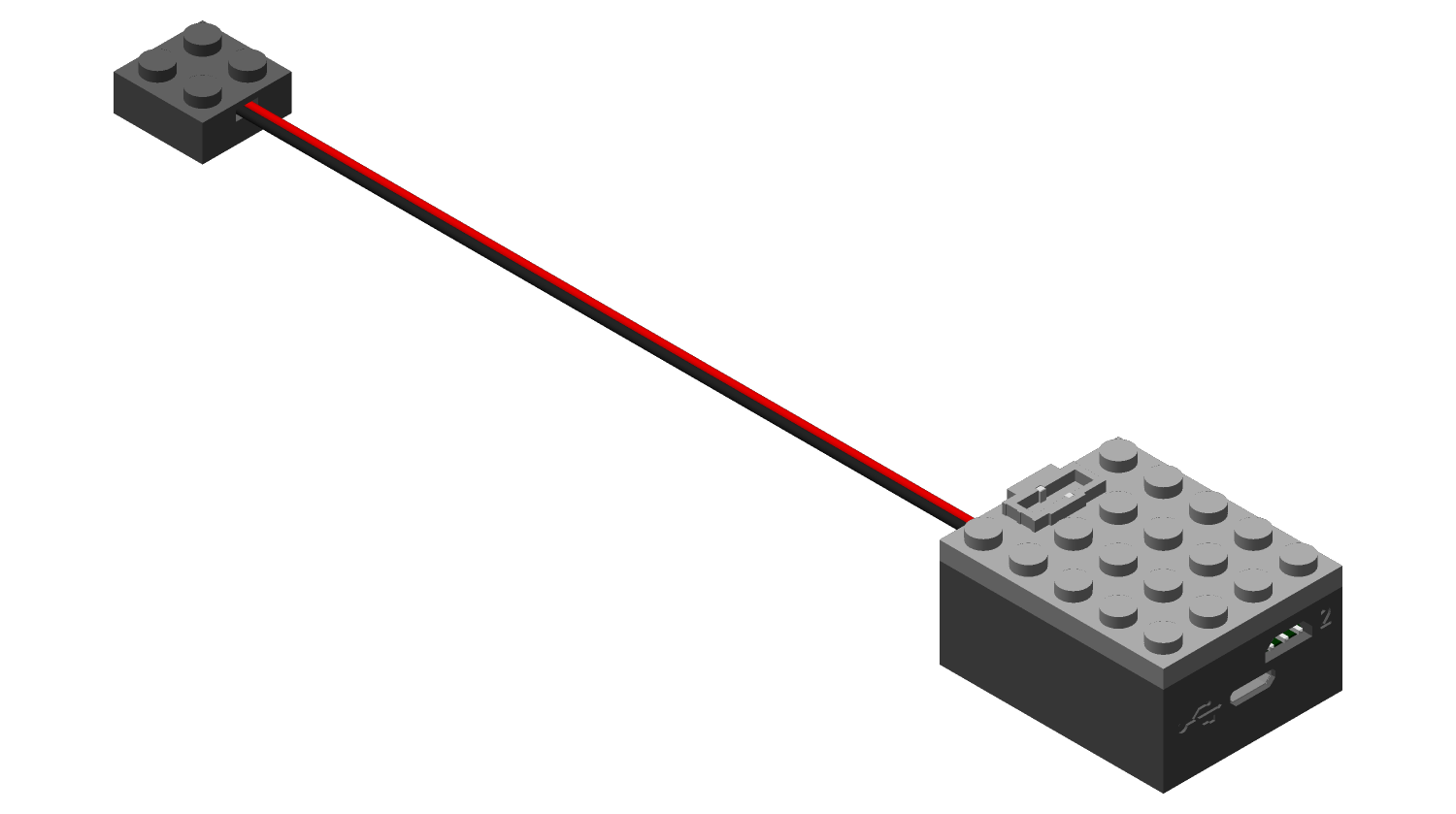

This WiFi controller is designed to control LEGO® PF trains. It can be used with our nControl™ automation software or using a MQTT based DIY software application.

Manuals

3D Models

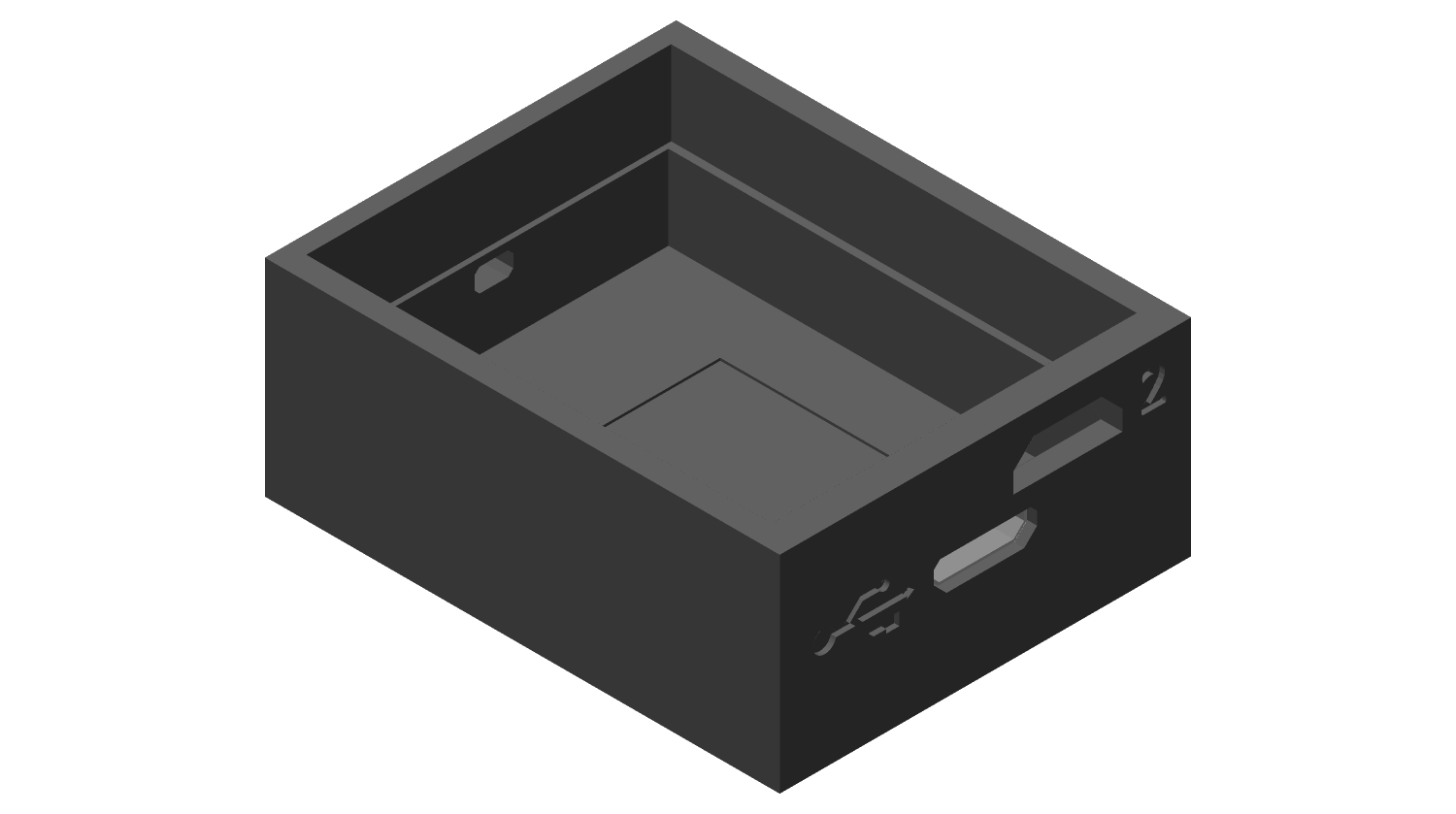

WiFi Controller Base

Part: 2.01.006-1
Revision: v23
Release: 27-JUN-21
File: 2-01-006-1_v23.stl (240.9KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v23: 27-JUN-21 - Initial release.

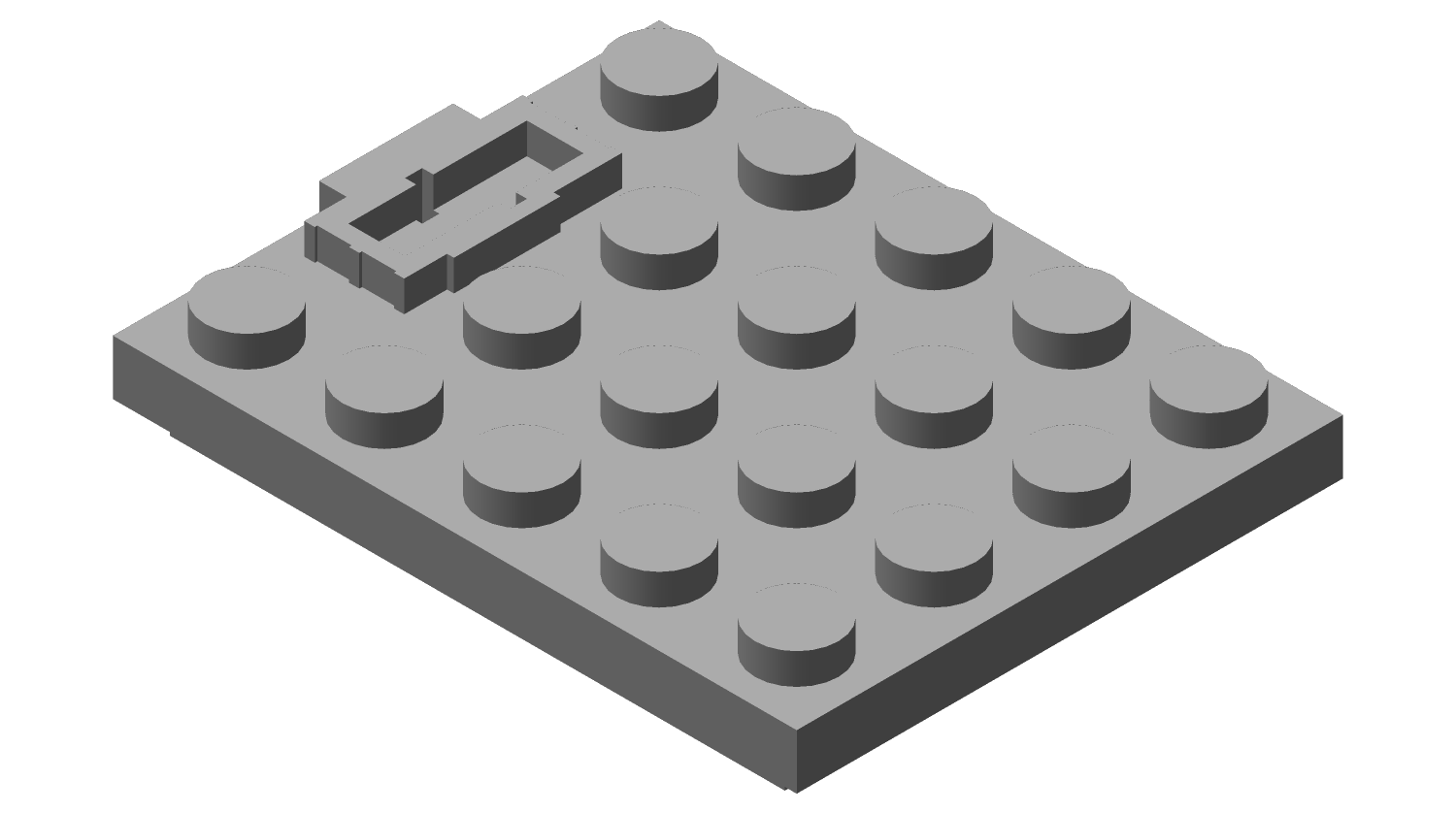

WiFi Controller Cover

Part: 2.01.006-2
Revision: v23
Release: 27-JUN-21
File: 2-01-006-2_v23.stl (272.6KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20°
Infill: 30%

Model History

v23: 27-JUN-21 - Initial release.

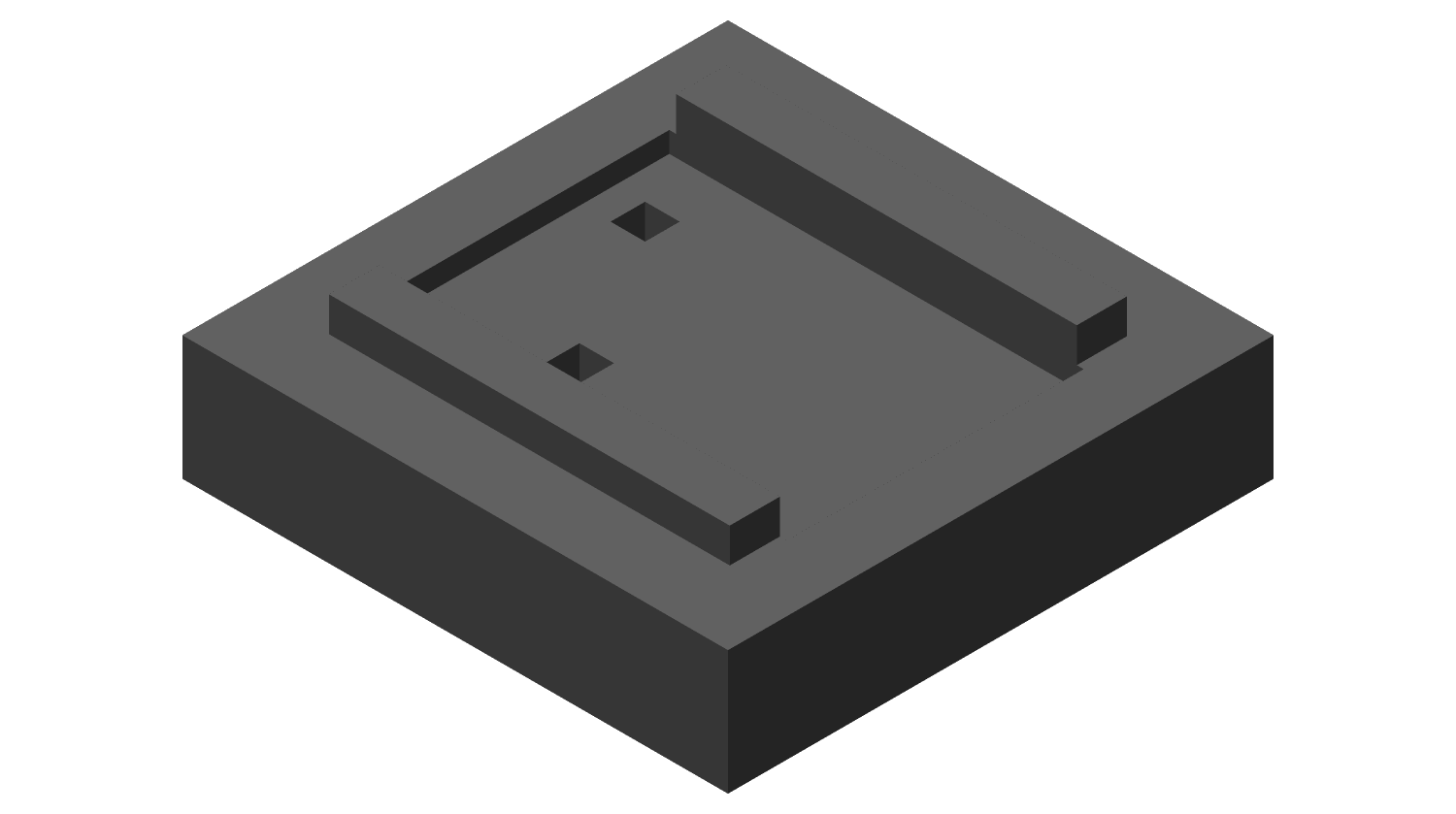

PF Connector Base

Part: 2.01.006-3
Revision: v23
Release: 27-JUN-21
File: 2-01-006-3_v23.stl (26.7KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v23: 27-JUN-21 - Initial release.

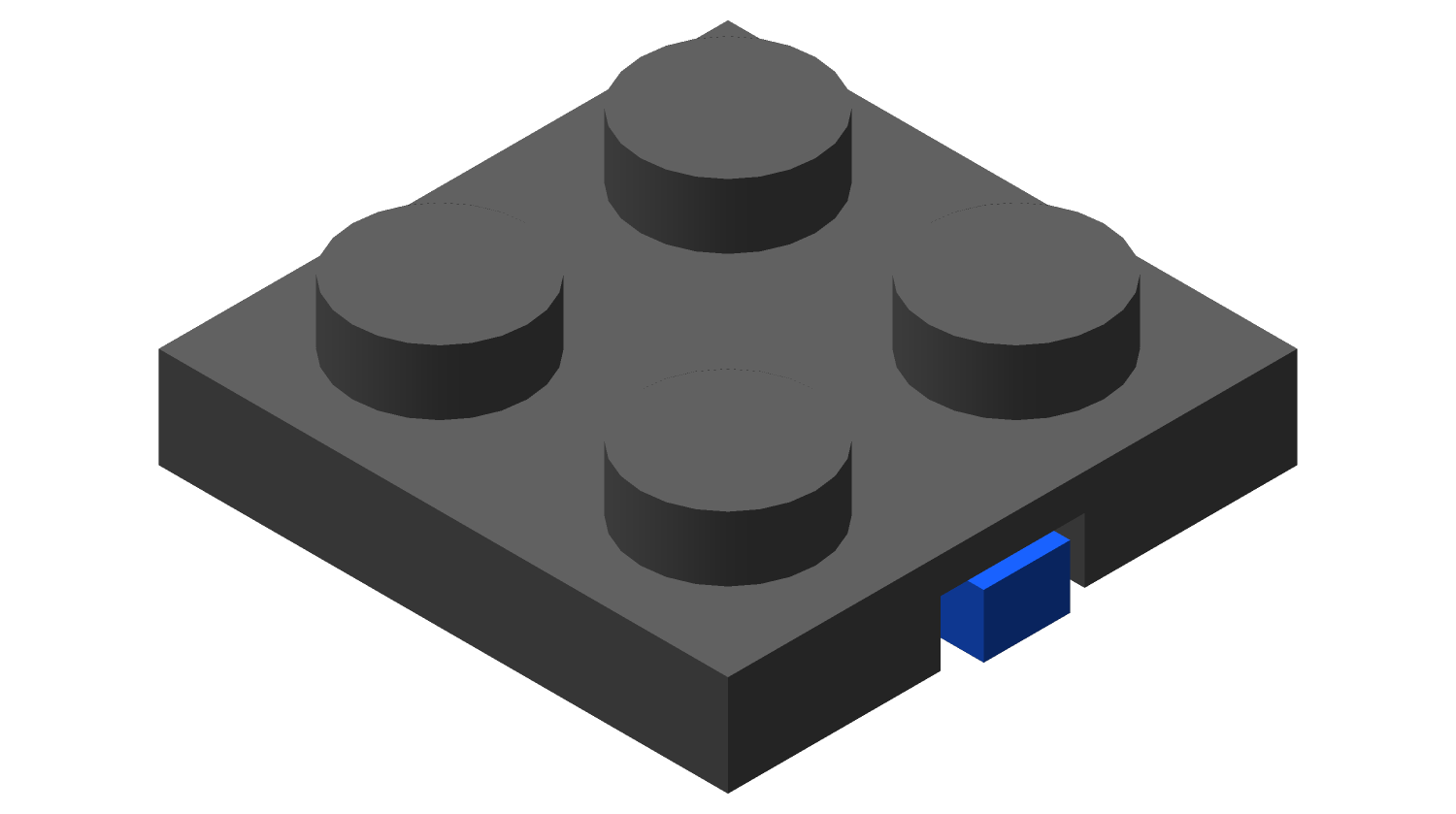

PF Connector Cover

Part: 2.01.006-4
Revision: v23
Release: 27-JUN-21
File: 2-01-006-4_v23.stl (63.8KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v23: 27-JUN-21 - Initial release.

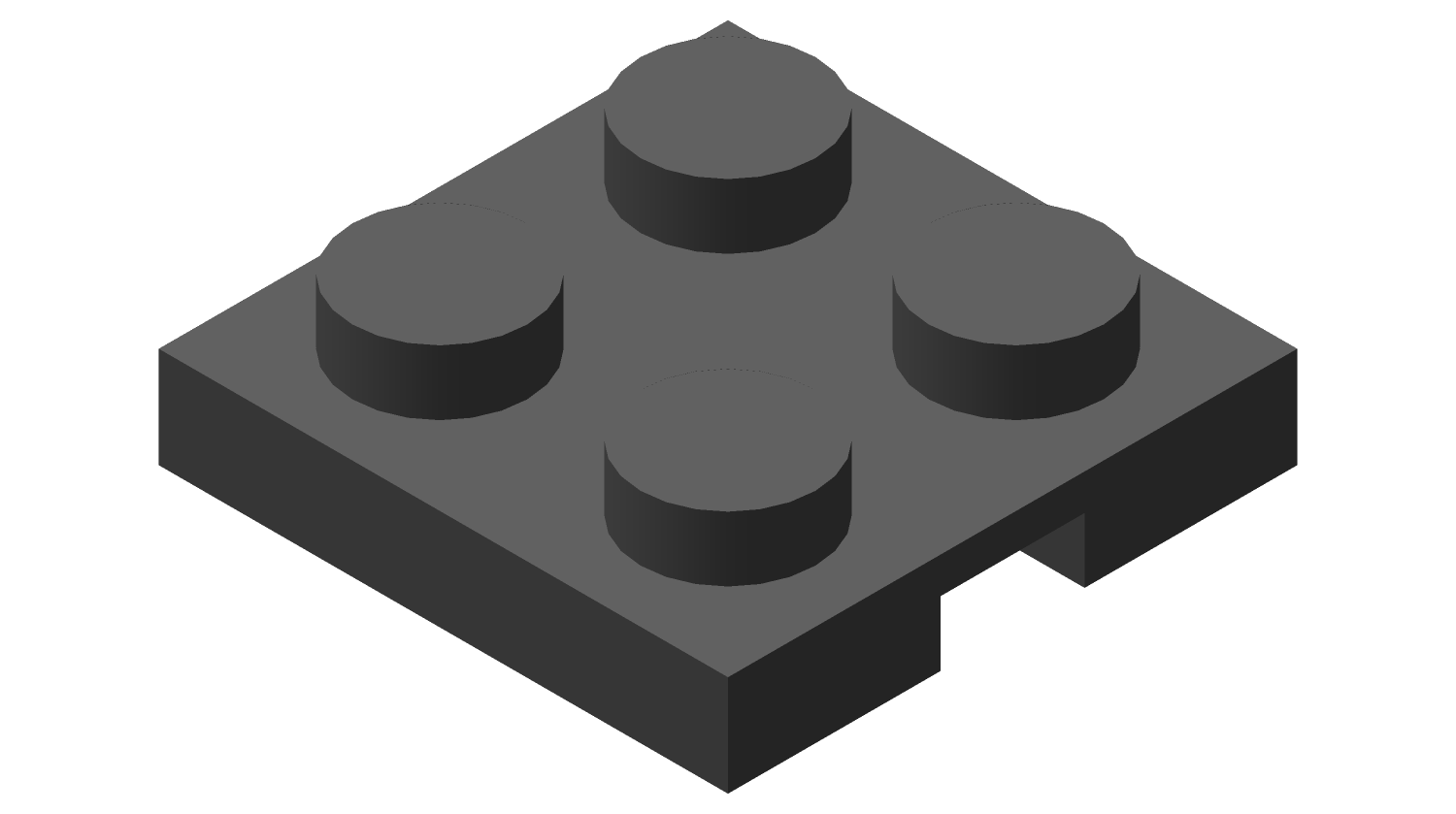

PF Connector Cover - No support

Part: 2.01.006-4
Revision: v23
Release: 27-JUN-21
File: 2-01-006-4-nsp_v23.stl (57.7KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20°
Infill: 30%

Model History

v23: 27-JUN-21 - Initial release.

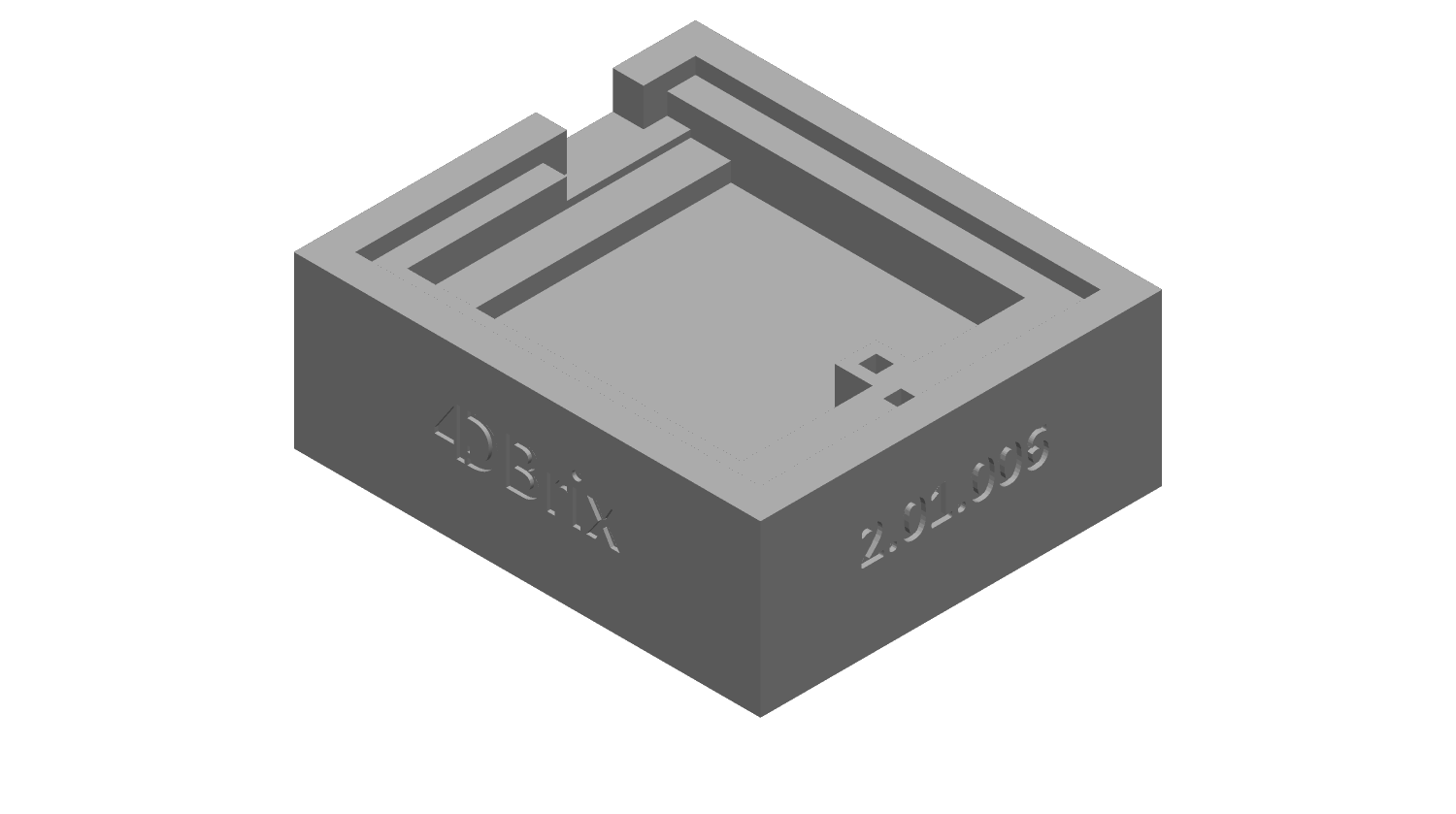

WiFi Controller Soldering Jig

Part: 6.01.005
Revision: v01
Release: 27-JUN-21
File: 6-01-005_v01.stl (267.7KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v01: 27-JUN-21 - Initial release.
