DESCRIPTION

These light control buttons allow you to automate your train layout without needing a computer. They are part of an automation system inspired by the vintage LEGO® 12V control system but designed for PF / 9V tracks. The servo control buttons are compatible with all lights:

• traffic lights
• level crossing lights

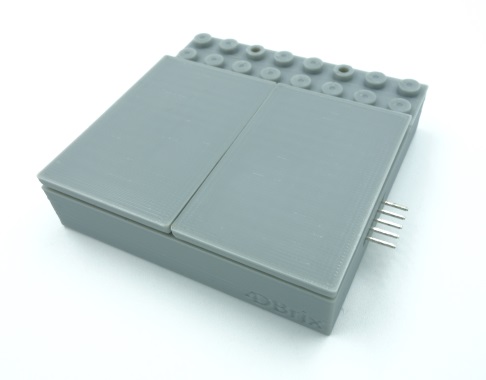

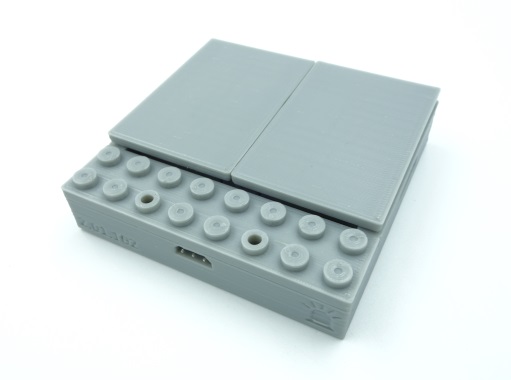

They have 2 integrated LEDs that show the current state of the traffic or level crossing light. The top of the control button is studded so you can customize the look with standard LEGO® tiles. The LEDs are white and have a hollow stud, as such the color can be customized using transparent tiles or plates.

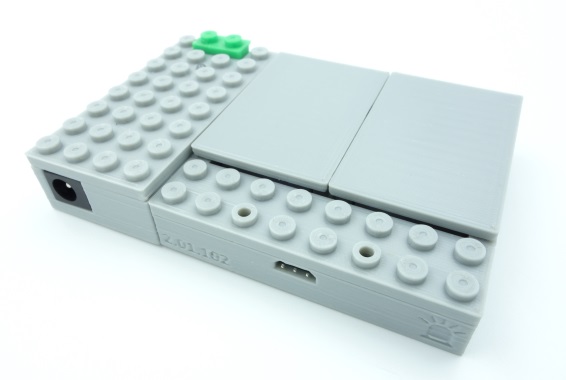

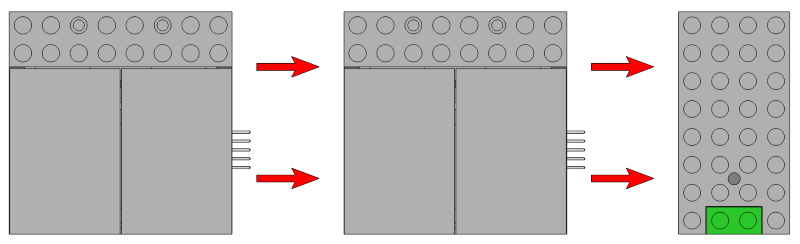

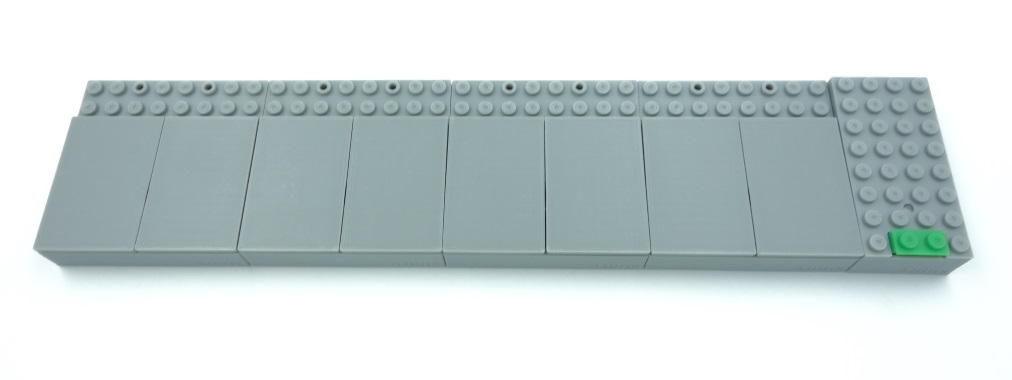

The control buttons are interconnectable, so you can easily create a control panel with them. The first control button is powered by a Power Brick which has to be plugged into a wall outlet. The second control button is powered by the first one, etc.

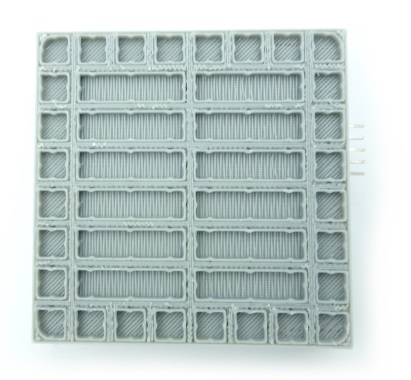

The base of the control buttons is fully anti-studded to make it easy to integrate them into your LEGO® set-up. They are 8 studs wide, 8 studs deep and 5 plates high.
More detailed information on the capabilities of these light control buttons can be found in the instruction manual.

COLOR

Light Bluish Gray

MATERIAL

3D printed ABS

Manual

Light Control Button Instruction Manual

QUESTIONS

Don't hesitate to contact us if you have questions concerning our button controls.
