Home > Products > Monorail > Automation

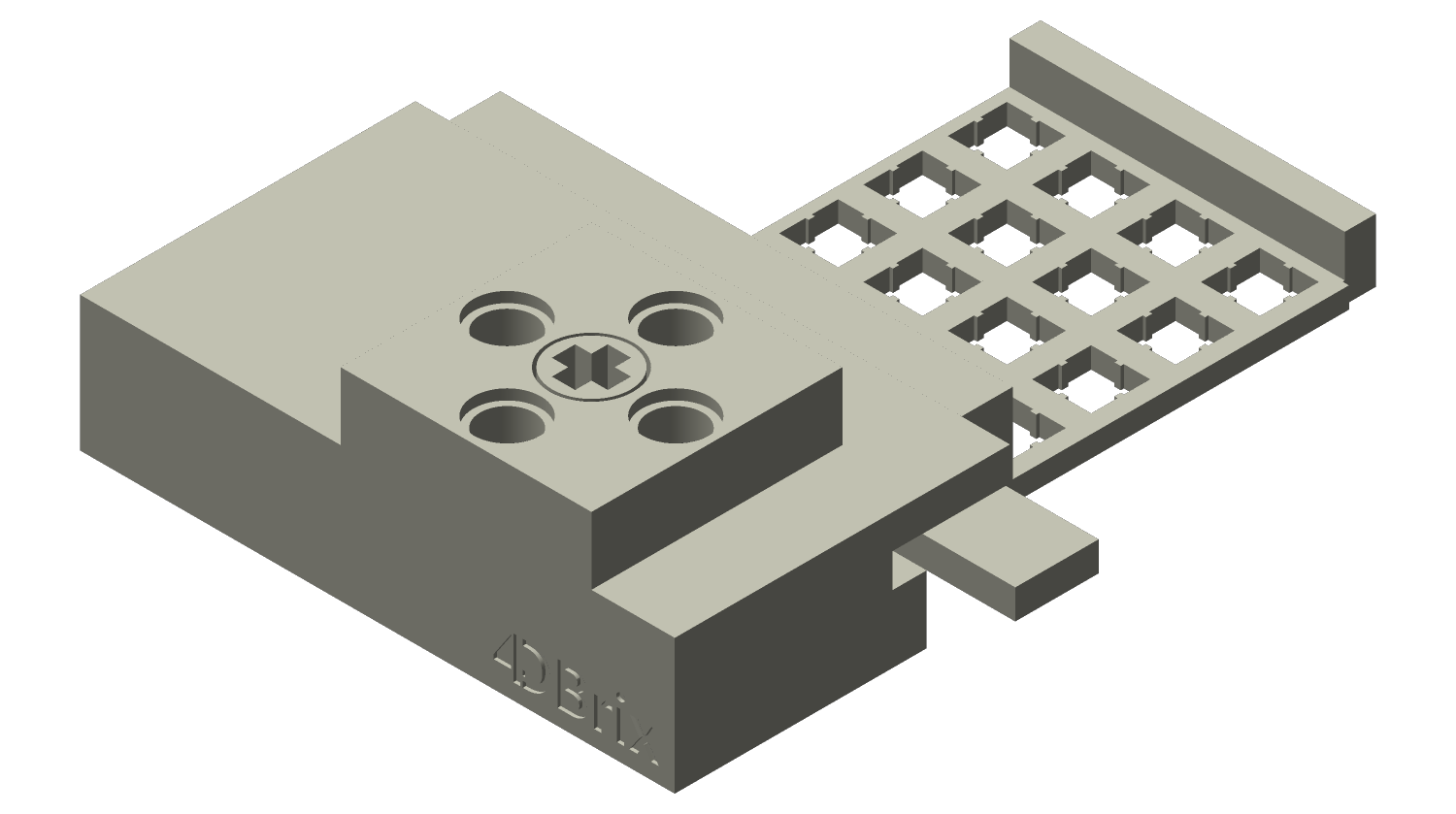

3.03.002 - Monorail Switch Bracket

Introduction

This motor bracket is designed to mount servo motors onto the directional right-turn LEGO® monorail switches. As such you can fully automate your monorail layout. You can connect the motor to the bracket with 2 technic pegs and a 2M technic axle.

Width: 4 studs
Depth: 9 studs
Height: 2 bricks

3D Models

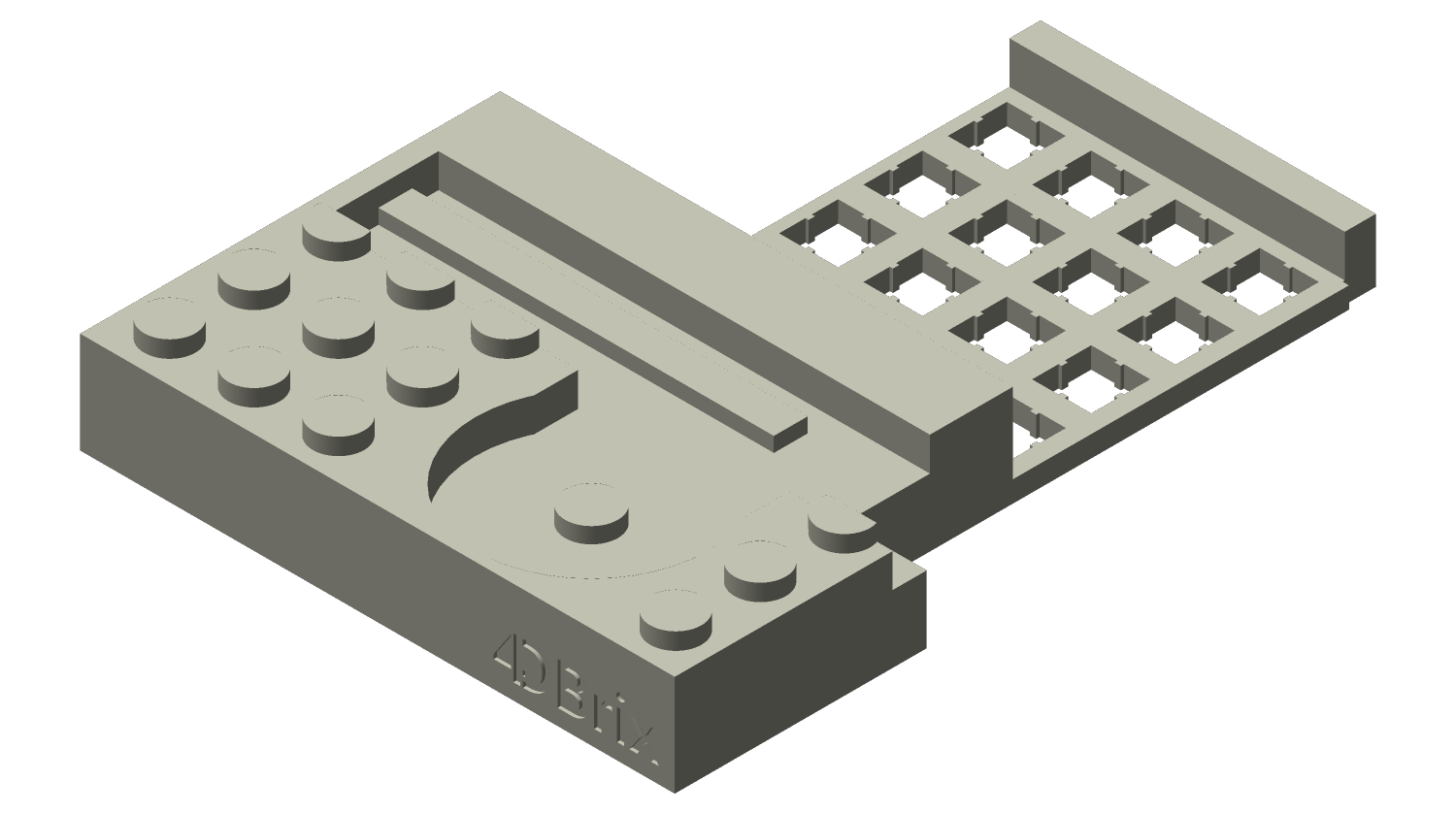

Monorail Switch Bracket - Right - Base

Part: 3.03.002-1
Revision: v07
Release: 15-JUN-21
File: 3-03-002-1_v07.stl (438.6KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20%
Infill: 30%

Model History

v07: 15-JUN-21 - Initial upload.

Monorail Switch Bracket - Right - Cover

Part: 3.03.002-2
Revision: v07
Release: 15-JUN-21
File: 3-03-002-2_v07.stl (208.3KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20%
Infill: 30%

Model History

v07: 15-JUN-21 - Initial upload.

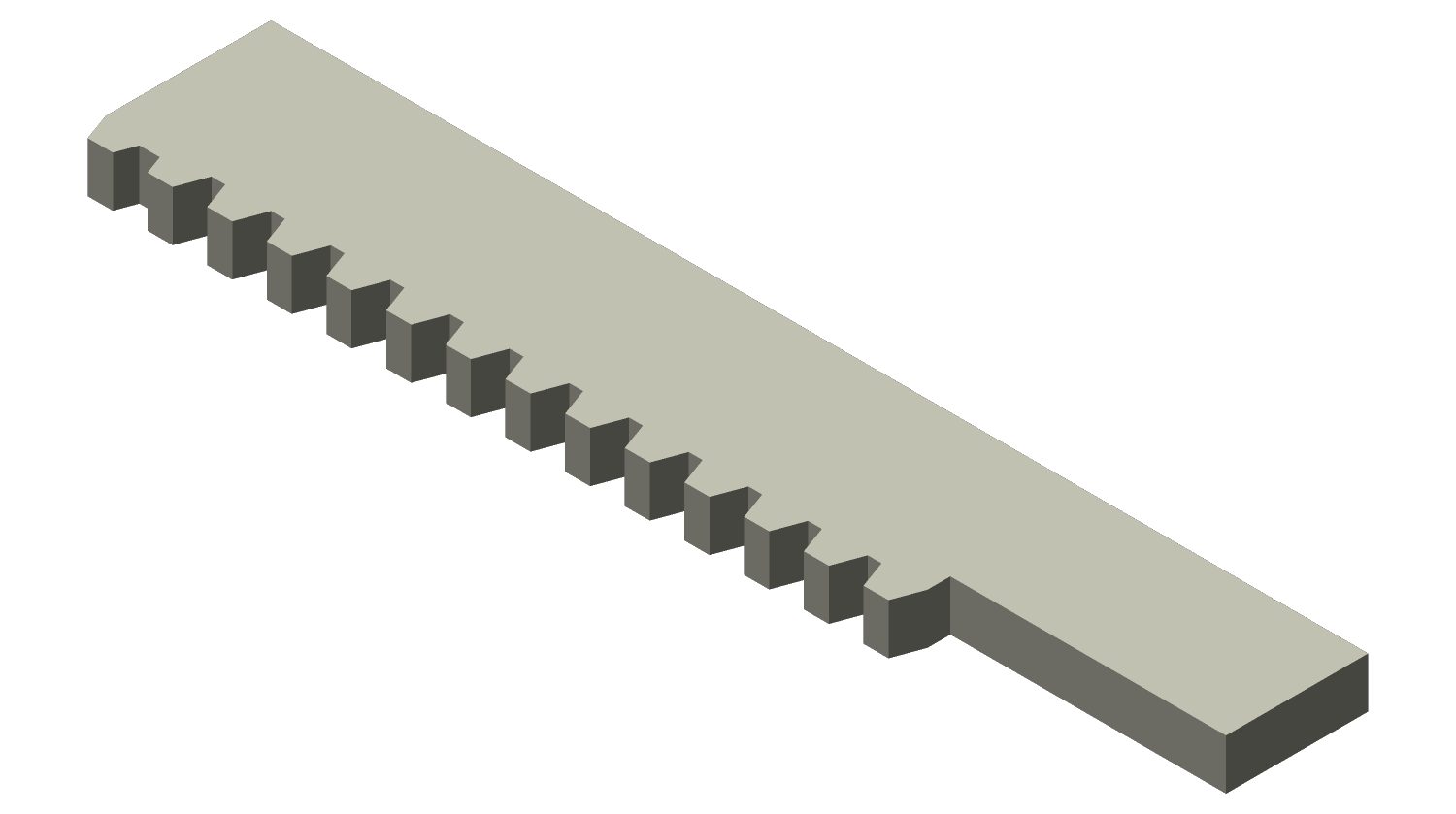

Monorail Switch Bracket - Right - Rack

Part: 3.03.002-3
Revision: v07
Release: 15-JUN-21
File: 3-03-002-3_v07.stl (35.7KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20%
Infill: 30%

Model History

v07: 15-JUN-21 - Initial upload.

Monorail Switch Bracket - Gear

Part: 3.03.002-4
Revision: v07
Release: 15-JUN-21
File: 3-03-002-4_v07.stl (190.9KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20%
Infill: 30%

Model History

v07: 15-JUN-21 - Initial upload.
