Home > Products > Monorail > Automation

3.03.001 - Monoswitch Bracket

Introduction

This motor bracket is designed to mount servo motors onto the LEGO® monoswitches. As such you can fully automate your monorail layout. You can connect the motor to the bracket with 2 technic pegs and a 3M technic axle.

Width: 4 studs
Depth: 4 studs
Height: 5 plates

3D Models

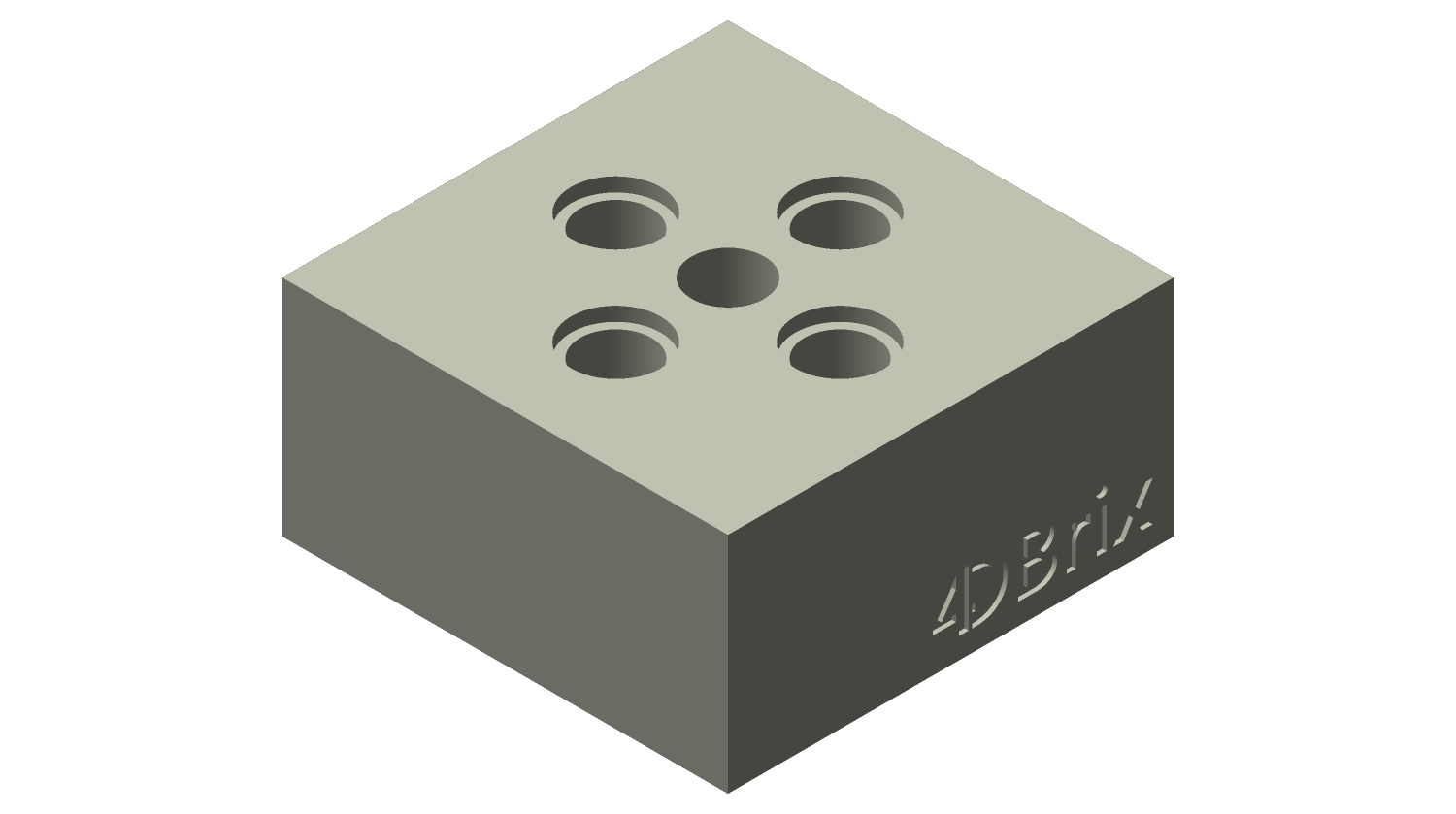

Monoswitch Bracket Base

Part: 3.03.001-1
Revision: v03
Release: 15-JUN-21
File: 3-03-001-1_v03.stl (256.5KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20%
Infill: 30%

Model History

v03: 15-JUN-21 - Initial upload.

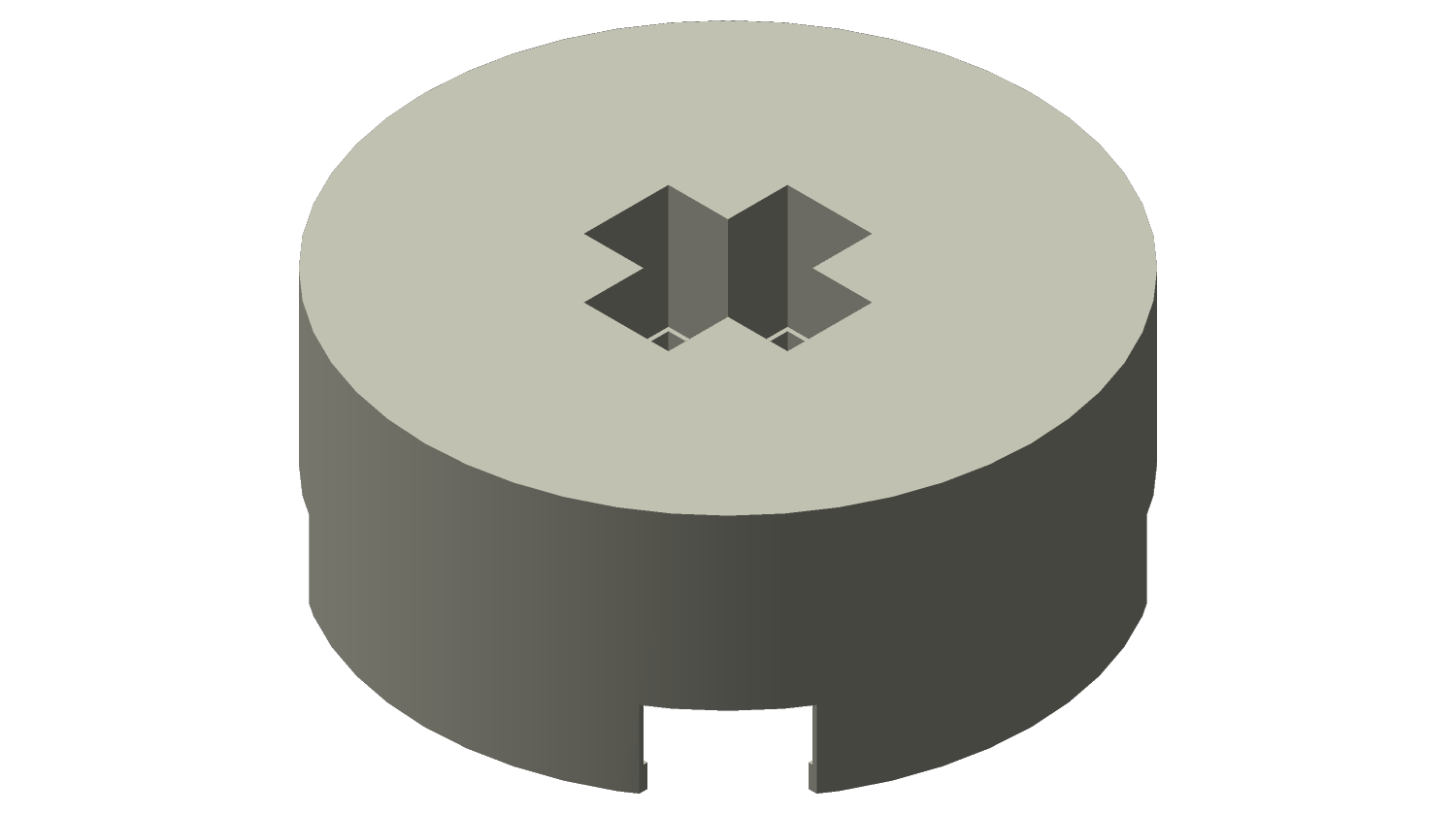

Monoswitch Bracket Connector

Part: 3.03.001-2
Revision: v03
Release: 15-JUN-21
File: 3-03-001-2_v03.stl (43.1KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20%
Infill: 30%

Model History

v03: 15-JUN-21 - Initial upload.
