3.01.011 - Monorail Cross Switch

Introduction

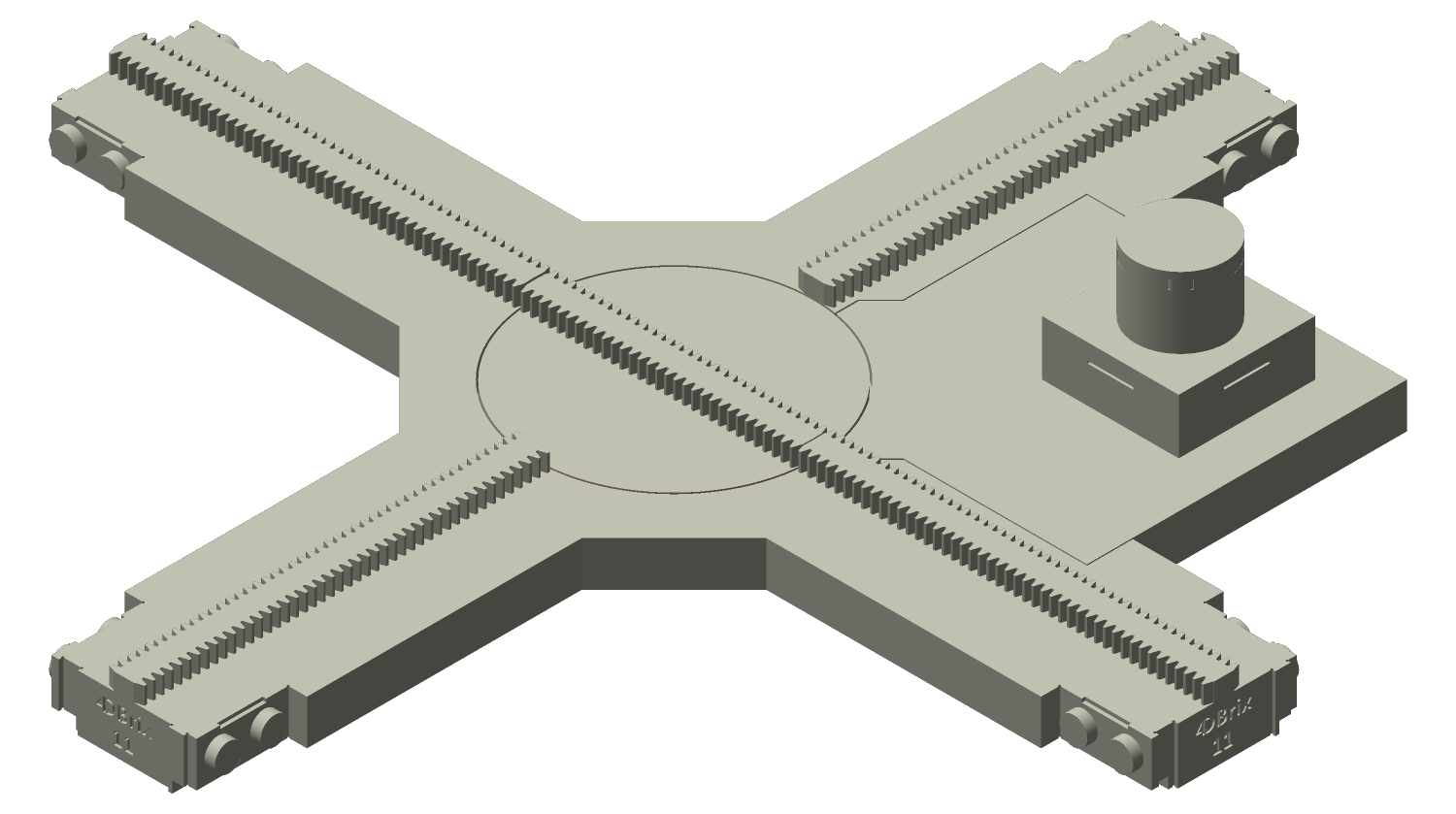

Track 3.01.011 is a monorail cross switch.

Length: 12 studs
Width: 12 studs

3D Models

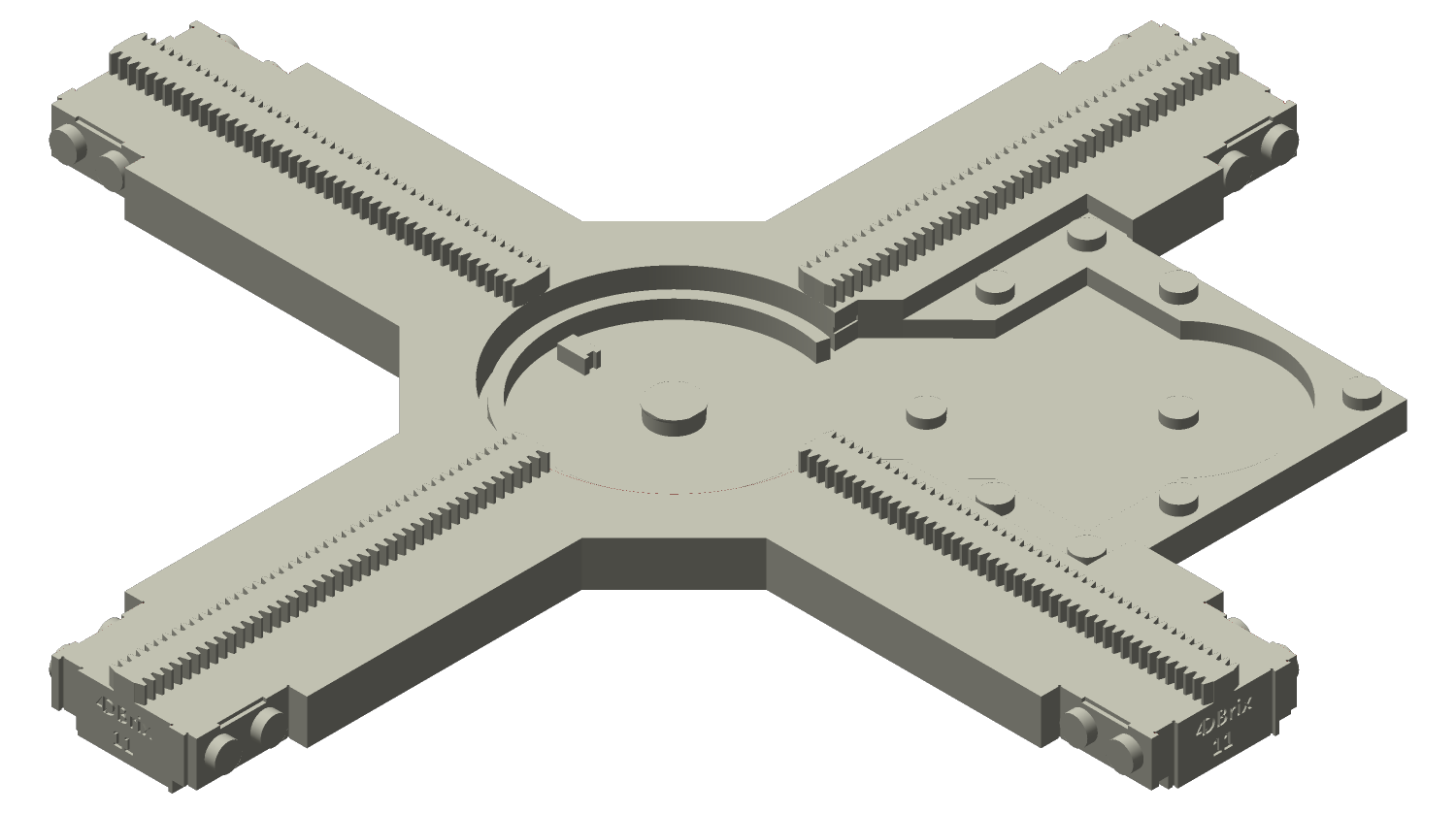

Cross Switch Base

Part: 3.01.011
Revision: v35
Release: 01-MAR-21
File: 3-01-011-1_v35.stl (1,021.9KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20%
Infill: 30%

Model History

v21: 01-MAR-21 - Initial release.

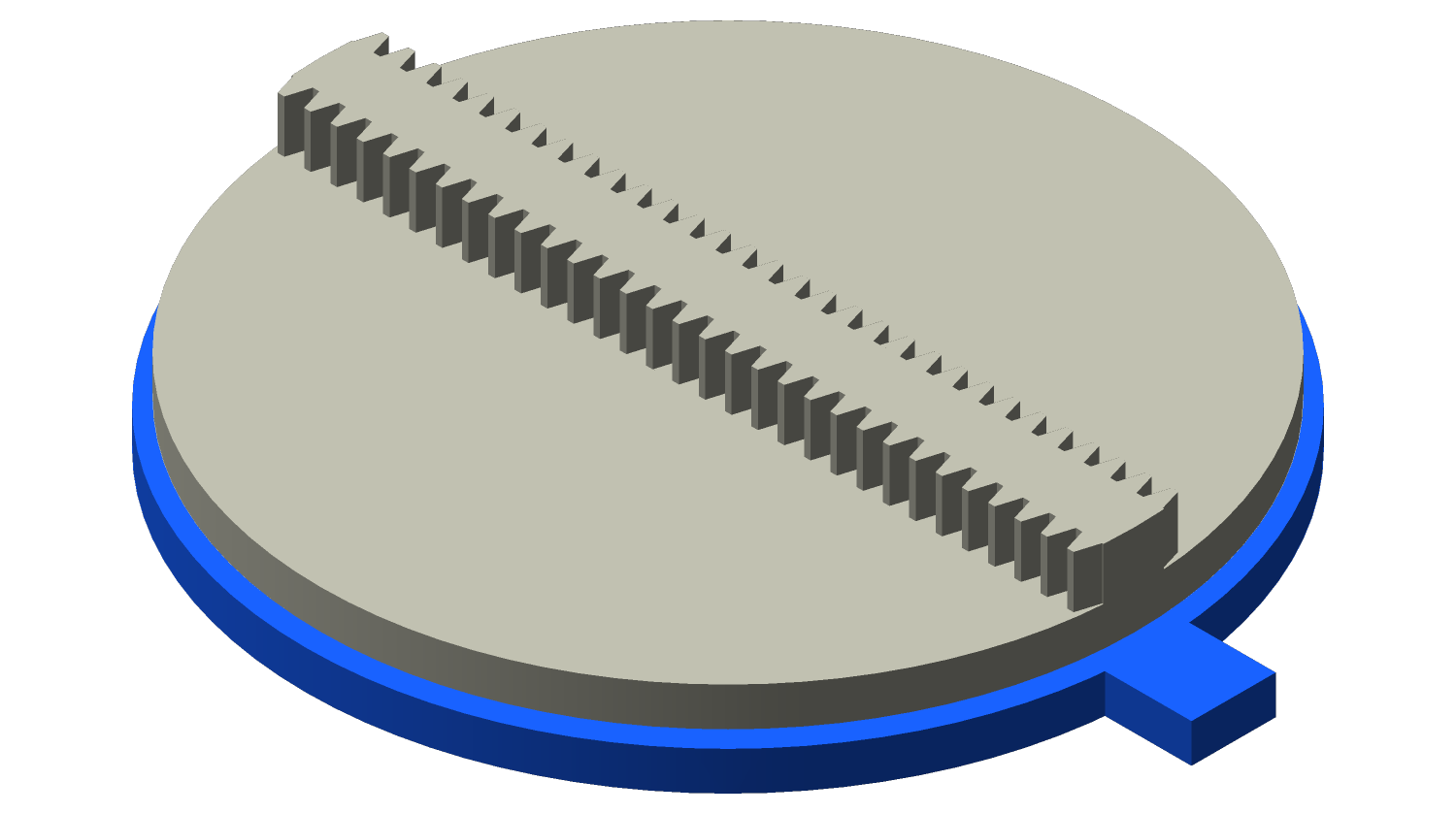

Turn table

Model with integrated support.

Part: 3.01.011
Revision: v36
Release: 15-JUL-21
File: 3-01-011-2_v36.stl (525.6KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v35: 01-MAR-21 - Initial release.
v36: 15-JUL-21 - Correction of connection hole.

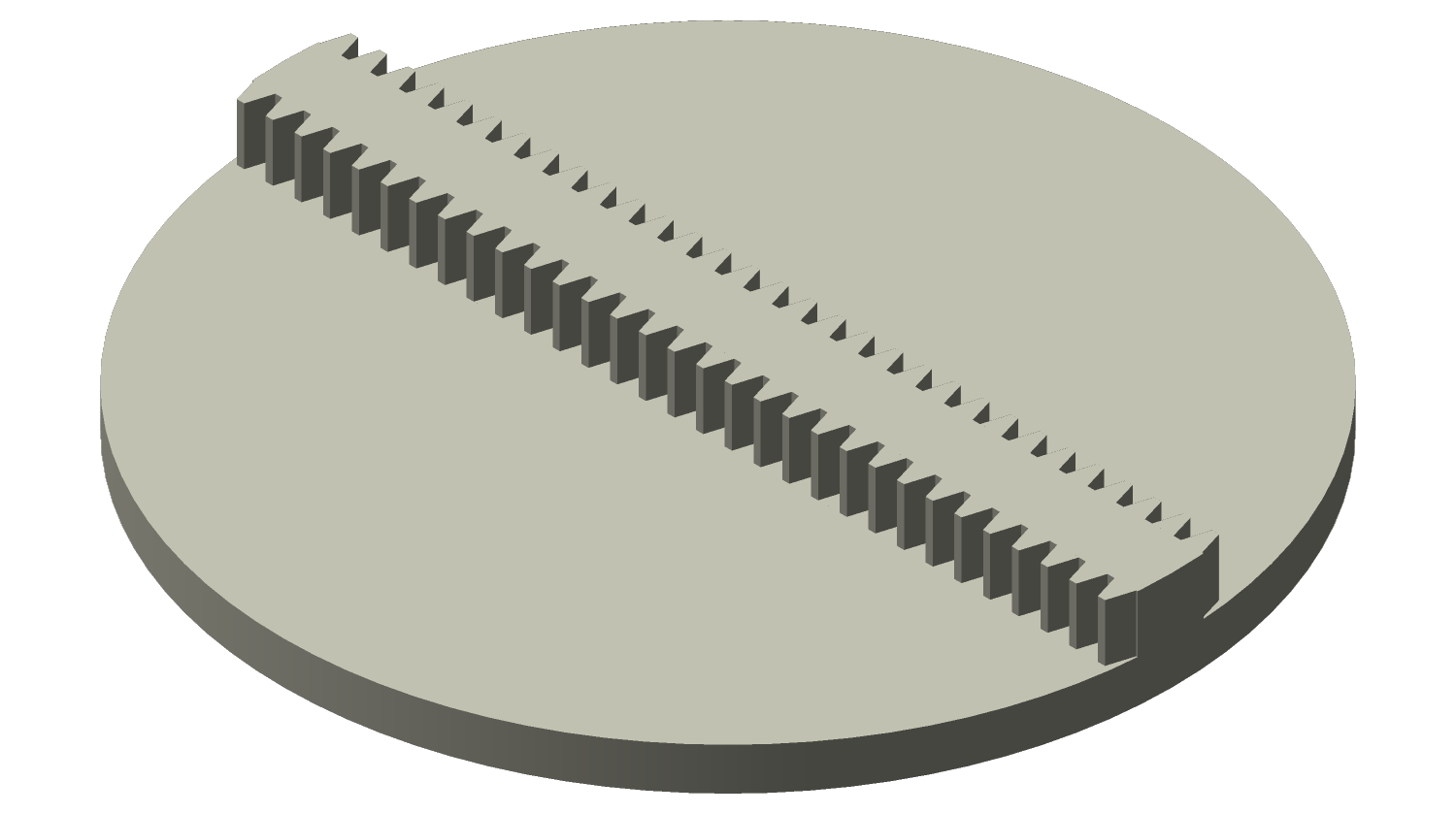

Turn table

Model without integrated support.

Part: 3.01.011
Revision: v36
Release: 15-JUL-21
File: 3-01-011-2-nsp_v36.stl (317.8KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v35: 01-MAR-21 - Initial release.
v36: 15-JUL-21 - Correction of connection hole.

Gear

Part: 3.01.011
Revision: v35
Release: 01-MAR-21
File: 3-01-011-3_v35.stl (304.8KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v21: 01-MAR-21 - Initial release.

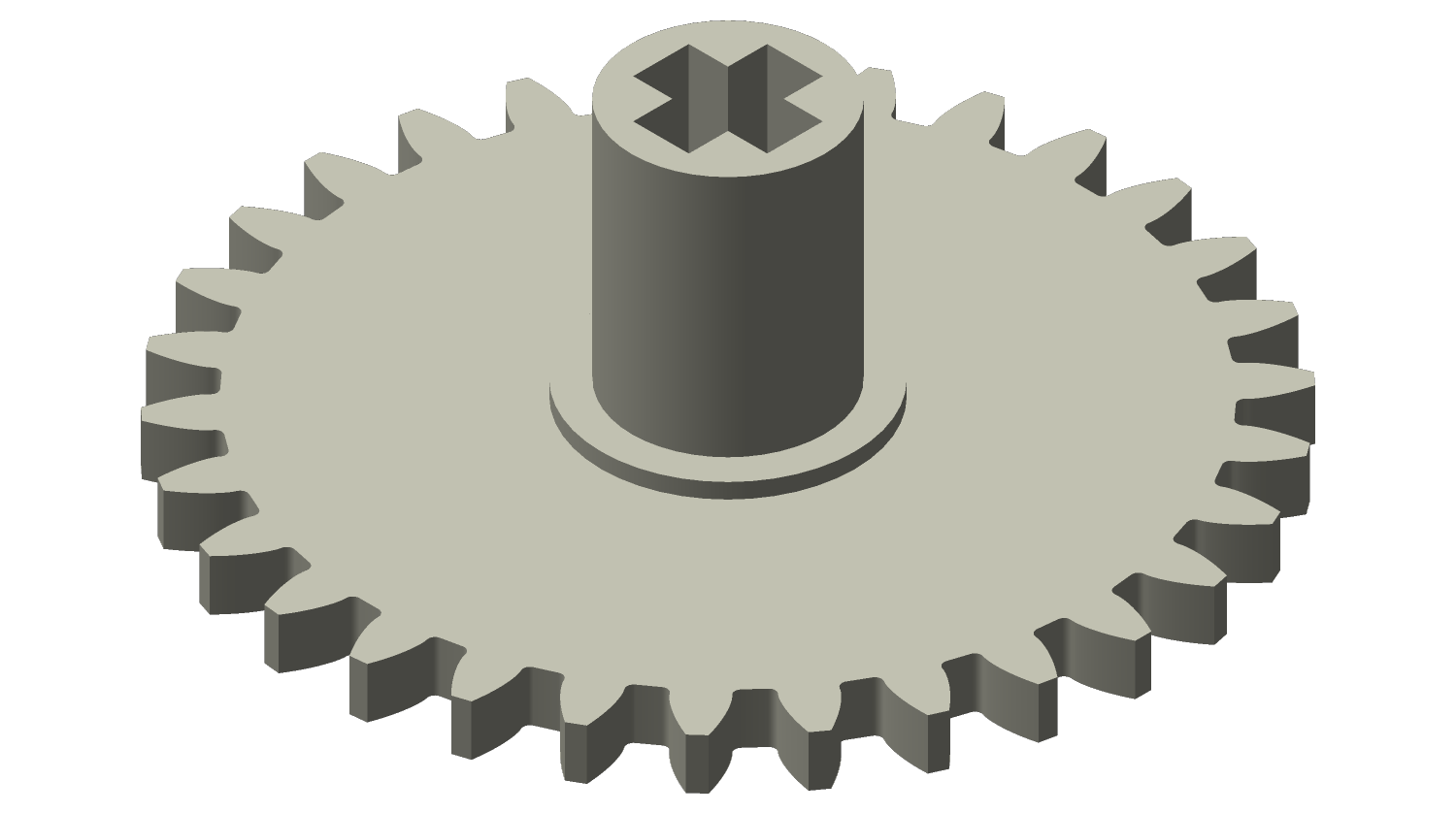

Axle Gear

Part: 3.01.011
Revision: v35
Release: 01-MAR-21
File: 3-01-011-4_v35.stl (310.5KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v21: 01-MAR-21 - Initial release.

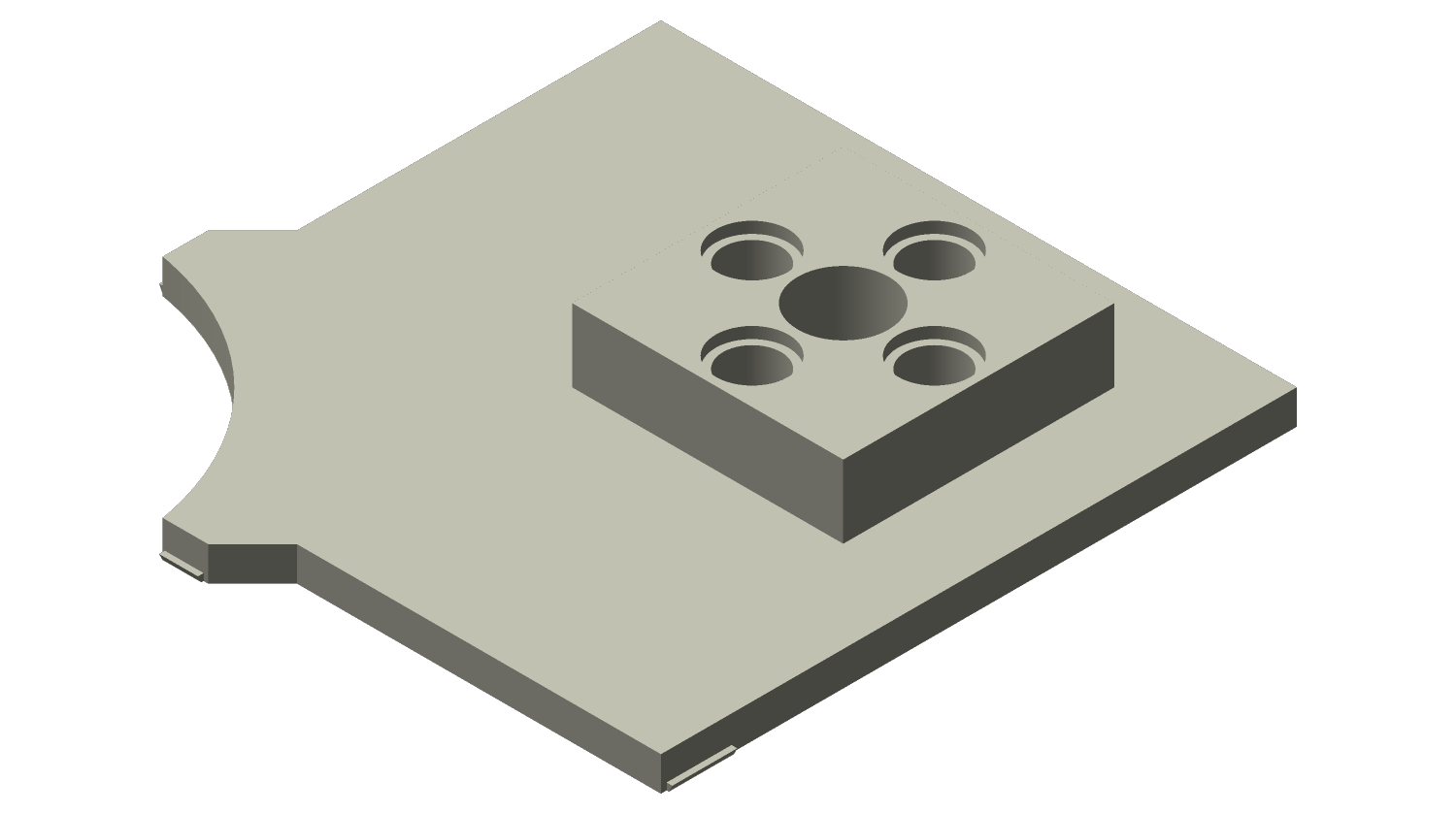

Cover

Part: 3.01.011
Revision: v35
Release: 01-MAR-21
File: 3-01-011-5_v35.stl (236.7KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v21: 01-MAR-21 - Initial release.

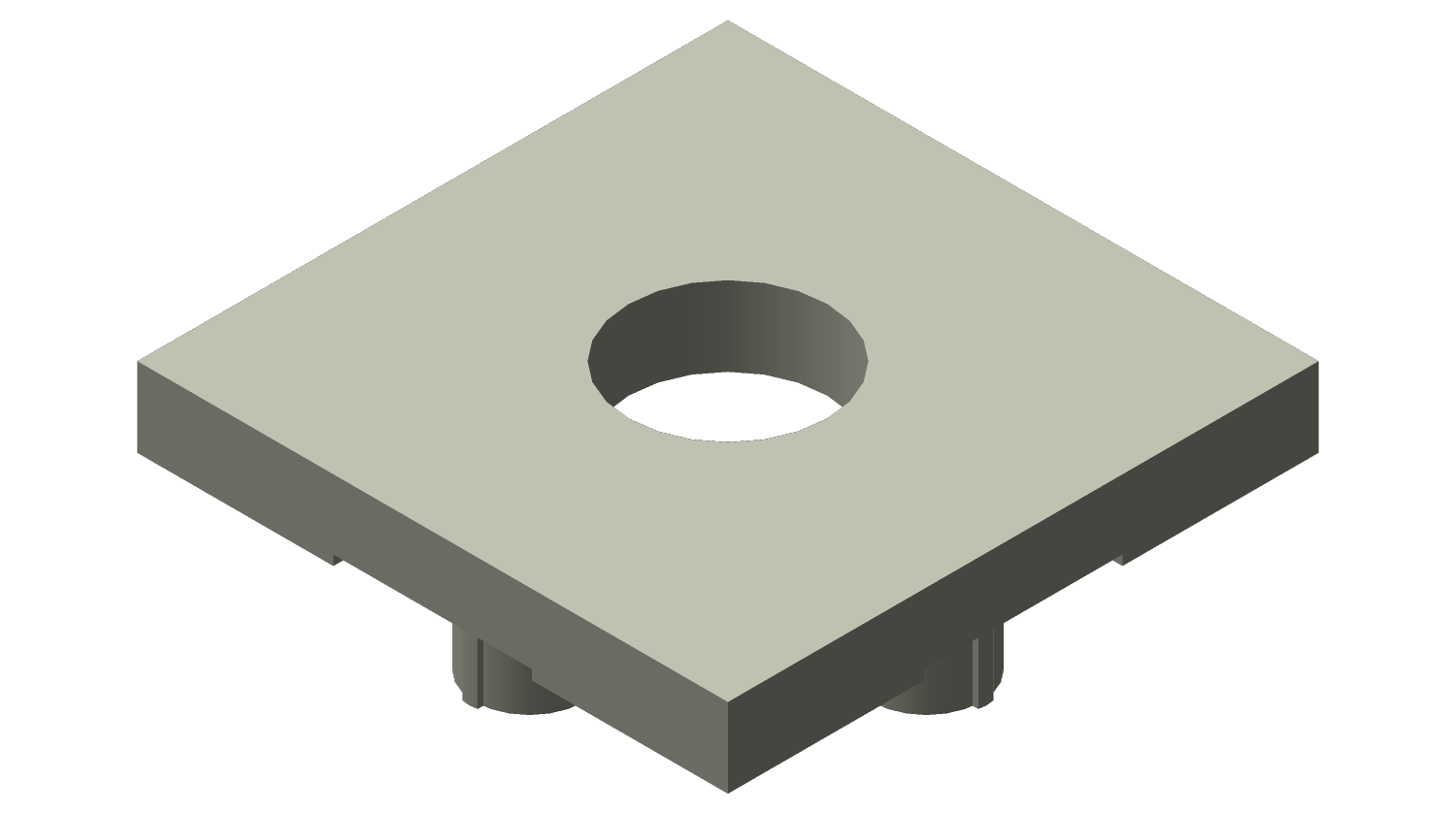

Tile

Part: 3.01.011
Revision: v35
Release: 01-MAR-21
File: 3-01-011-6_v35.stl (55.6KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20°
Infill: 30%

Model History

v21: 01-MAR-21 - Initial release.

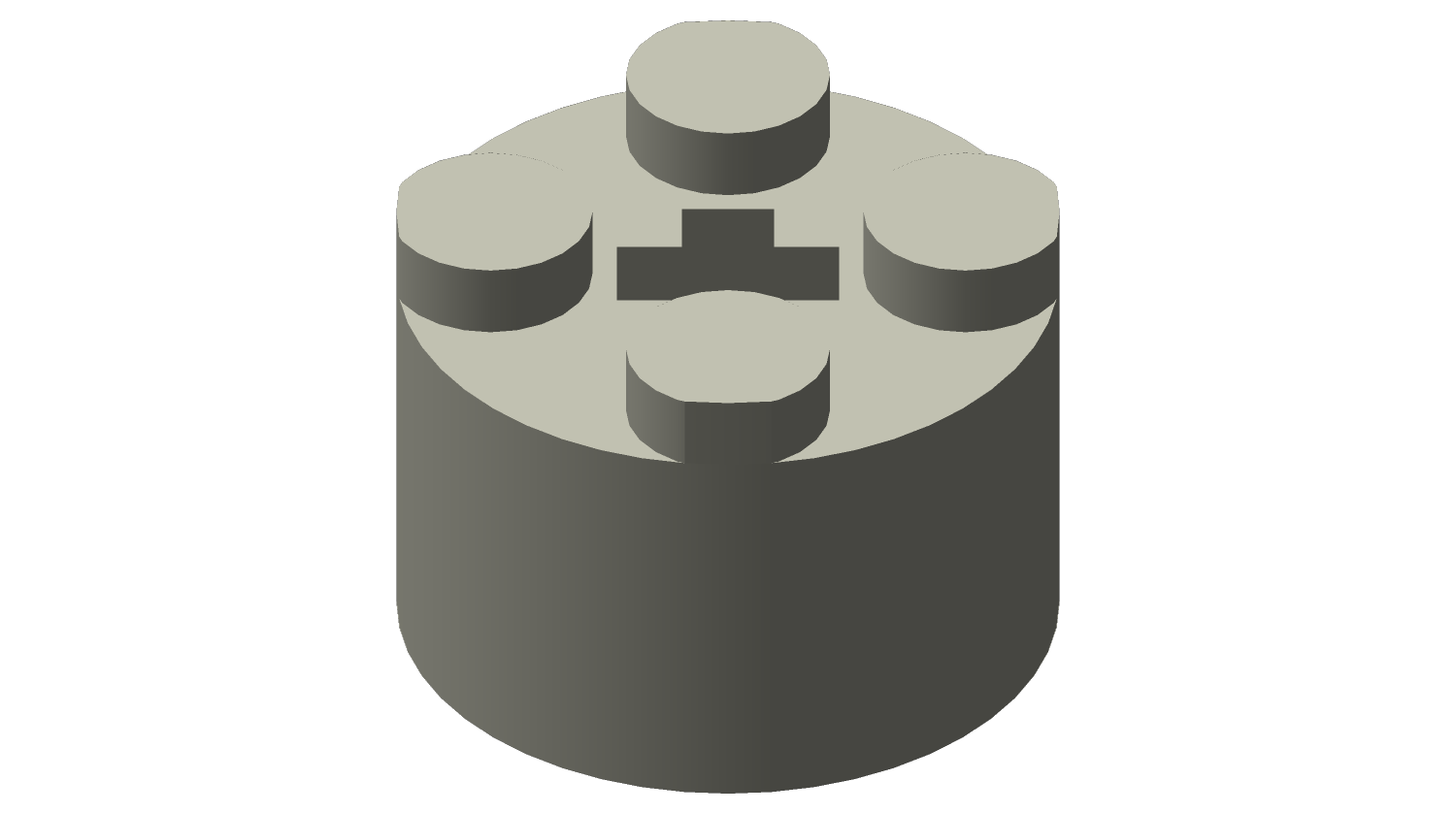

Knob

Part: 3.01.011
Revision: v35
Release: 01-MAR-21
File: 3-01-011-7_v35.stl (72.5KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: None
Infill: 30%

Model History

v21: 01-MAR-21 - Initial release.

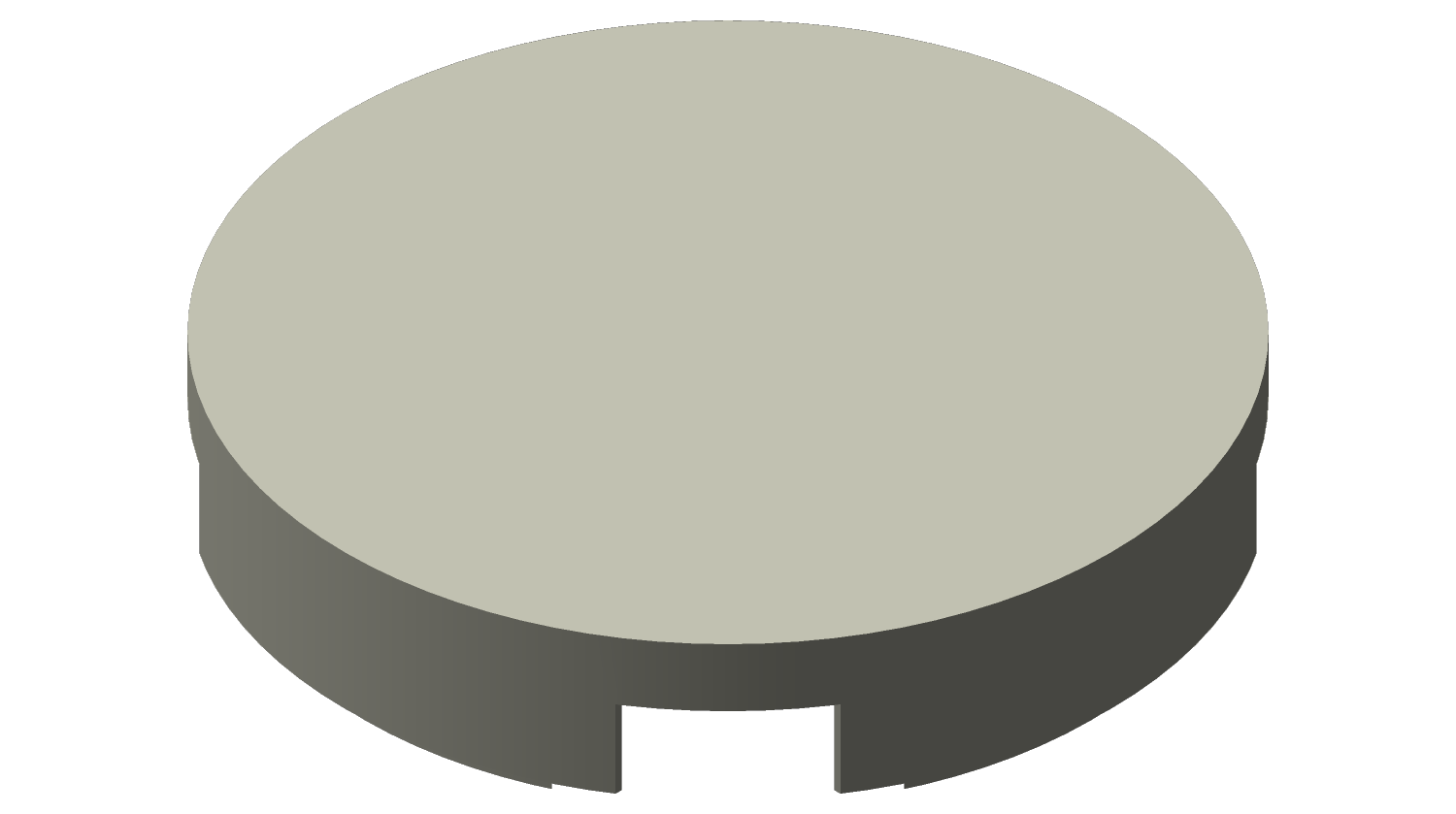

Knob Tile

Part: 3.01.011
Revision: v35
Release: 01-MAR-21
File: 3-01-011-8_v35.stl (50.5KB)
Suggested Print Settings

Platform: 80°C
Extruder: 235°C
Layer Thickness: 0.19mm
Nozzle Diameter: 0.4mm
Support: 20°
Infill: 30%

Model History

v21: 01-MAR-21 - Initial release.
